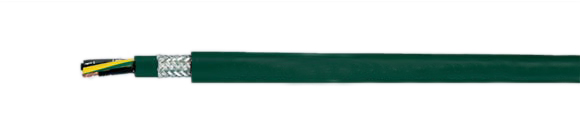

Control Cables: BIOFLEX-500®-JZ-C

Bio-Fuel and Bio-Oil Resistant), Abrasion Resistant, Recyclable / Environment-Friendly, Copper Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European  , BIOFLEX-500-JZ-C, Abrasion Resistant, Recyclable Environment Friendly, Bio-Oil Resistant, Copper Shielded Cable, Cable against biologically decomposable oils, EMC (EMI Preferred Types), Bio-Oil Resistant
AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12
10
10
8
8
6
6
4
4
2
2
1
1
2/0
2/0
3/0
3/0
4/0
4/0

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
25691 BIOFLEX OZ-500-C 2X0.5  6.6 41.0 68.0 20
25692 BIOFLEX JZ-500-C 3G0.5 7.1 45.0 84.0 20
25693 BIOFLEX JZ-500-C 4G0.5 7.6 54.0 95.0 20
25694 BIOFLEX JZ-500-C 5G0.5 8.2 66.0 107.0 20
25695 BIOFLEX JZ-500-C 7G0.5 9.4 79.0 135.0 20
25696 BIOFLEX JZ-500-C 10G0.5 11.2 107.0 170.0 20
25697 BIOFLEX JZ-500-C 12G0.5 11.3 137.0 195.0 20
25698 BIOFLEX JZ-500-C 14G0.5 11.9 142.0 222.0 20
25699 BIOFLEX JZ-500-C 18G0.5 12.9 156.0 278.0 20
25700 BIOFLEX JZ-500-C 25G0.5 15.9 250.0 406.0 20
25701 BIOFLEX OZ-500-C 2X0.75  7.2 46.0 88.0 18
25702 BIOFLEX JZ-500-C 3G0.75 7.7 57.0 98.0 18
25703 BIOFLEX JZ-500-C 4G0.75 8.2 63.0 112.0 18
25704 BIOFLEX JZ-500-C 5G0.75 8.8 76.0 130.0 18
25705 BIOFLEX JZ-500-C 7G0.75 10.1 100.0 185.0 18
25706 BIOFLEX JZ-500-C 10G0.75 12.2 140.0 270.0 18
25707 BIOFLEX JZ-500-C 12G0.75 12.3 175.0 294.0 18
25708 BIOFLEX JZ-500-C 14G0.75 13.0 190.0 317.0 18
25709 BIOFLEX JZ-500-C 18G0.75 14.6 240.0 357.0 18
25710 BIOFLEX JZ-500-C 25G0.75 17.8 306.0 510.0 18
25711 BIOFLEX JZ-500-C 41G0.75 21.5 403.0 951.0 18
25712 BIOFLEX JZ-500-C 42G0.75 22.0 410.0 975.0 18
25713 BIOFLEX OZ-500-C 2X1  8.1 54.0 98.0 17
25714 BIOFLEX JZ-500-C 3G1 8.5 64.0 102.0 17
25715 BIOFLEX JZ-500-C 4G1 9.0 76.0 145.0 17
25716 BIOFLEX JZ-500-C 5G1 9.9 89.0 170.0 17
25717 BIOFLEX JZ-500-C 7G1 11.6 114.0 220.0 17
25718 BIOFLEX JZ-500-C 10G1 14.0 156.0 330.0 17
25719 BIOFLEX JZ-500-C 12G1 14.4 186.0 350.0 17
25720 BIOFLEX JZ-500-C 14G1 15.0 198.0 402.0 17
25721 BIOFLEX JZ-500-C 18G1 17.0 284.0 515.0 17
25722 BIOFLEX JZ-500-C 25G1 20.6 387.0 690.0 17
25723 BIOFLEX JZ-500-C 41G1 25.0 578.0 1070.0 17
25724 BIOFLEX JZ-500-C 42G1 25.5 590.0 1096.0 17
25725 BIOFLEX OZ-500-C 2X1.5  8.5 64.0 130.0 16
25726 BIOFLEX JZ-500-C 3G1.5 8.9 82.0 152.0 16
25727 BIOFLEX JZ-500-C 4G1.5 9.7 99.0 167.0 16
25728 BIOFLEX JZ-500-C 5G1.5 10.8 123.0 203.0 16
25729 BIOFLEX JZ-500-C 7G1.5 12.5 148.0 305.0 16
25730 BIOFLEX JZ-500-C 10G1.5 15.1 198.0 422.0 16
25731 BIOFLEX JZ-500-C 12G1.5 15.5 274.0 435.0 16
25732 BIOFLEX JZ-500-C 14G1.5 16.1 294.0 480.0 16
25733 BIOFLEX JZ-500-C 18G1.5 18.6 386.0 642.0 16
25734 BIOFLEX JZ-500-C 25G1.5 22.1 531.0 803.0 16
25735 BIOFLEX JZ-500-C 41G1.5 27.2 840.0 1360.0 16
25736 BIOFLEX JZ-500-C 42G1.5 27.5 890.0 1375.0 16
25737 BIOFLEX OZ-500-C 2X2.5  10.6 110.0 180.0 14
25738 BIOFLEX JZ-500-C 3G2.5 11.1 148.0 215.0 14
25739 BIOFLEX JZ-500-C 4G2.5 12.1 169.0 268.0 14
25740 BIOFLEX JZ-500-C 5G2.5 13.2 220.0 349.0 14
25741 BIOFLEX JZ-500-C 7G2.5 15.9 284.0 406.0 14
25742 BIOFLEX JZ-500-C 12G2.5 19.5 470.0 720.0 14
25743 BIOFLEX OZ-500-C 2X4  12.6 124.0 300.0 12
25744 BIOFLEX JZ-500-C 3G4 13.4 178.0 340.0 12
25745 BIOFLEX JZ-500-C 4G4 15.0 234.0 408.0 12
25746 BIOFLEX JZ-500-C 5G4 16.4 284.0 504.0 12
25747 BIOFLEX JZ-500-C 3G6  15.2 245.0 453.0 10
25748 BIOFLEX JZ-500-C 4G6 17.0 316.0 560.0 10
25749 BIOFLEX JZ-500-C 5G6 18.6 442.0 700.0 10
25750 BIOFLEX JZ-500-C 3G10  19.5 367.0 750.0 8
25751 BIOFLEX JZ-500-C 4G10 21.5 549.0 1023.0 8
25752 BIOFLEX JZ-500-C 5G10 23.9 604.0 1114.0 8
25753 BIOFLEX JZ-500-C 4G16  24.6 807.0 1385.0 6
25754 BIOFLEX JZ-500-C 5G16 27.3 940.0 1550.0 6
25755 BIOFLEX JZ-500-C 4G25  30.6 1169.0 1894.0 4
25756 BIOFLEX JZ-500-C 4G35  36.9 1680.0 2395.0 2
25757 BIOFLEX JZ-500-C 4G50  41.3 2370.0 3312.0 1
25758 BIOFLEX JZ-500-C 4G70  48.8 3257.0 4605.0 2/0
25759 BIOFLEX JZ-500-C 4G95  61.8 4060.0 6055.0 3/0
25760 BIOFLEX JZ-500-C 4G120  65.7 5231.0 7318.0 4/0
Technical Data
  • Bio-oil resistant, abrasion resistant special control cable adapted to DIN VDE 0245, 0281
  • Temperature Range
    Flexing
    -20C to +80C (-4F to +176F)
    Fixed Installation
    -40C to +80C (-40F to +176F)
  • Nominal Voltage
    U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 20x cable
    Fixed Installation 6x cable
  • Coupling Resistance
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE Approval
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special polymer conductor insulation
  • Black conductors with continuous white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special inner jacket
  • Shield of Cu braid, tinned coverage approx. 85%
  • Fleece separator, ensure good dismantling ability
  • Special outer jacket, polymer compound
  • Color: Dark Green
Application

European BIOFLEX-500-C is an extremely robust control cable with high abrasion and tear resistant properties due to its high resistance to bio-fuel, bio-oil and coolant emulsions. It is especially suited for use in the machine, tool making and plant industries as well as in the steel industry for difficult and problem areas. The high flexibility of this cable type makes it quick and easy to install. Suitable for outdoor installation or laying in ground. These shielded cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications.
EMI = Electromagnetic Interference
To optimize the EMI features, we recommend a large round contact of copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
) For critical applications we advise for consultation.

Properties
  • Resistant to bio-fuel (diesel and petrol), highly resistant to biologically decomposable oils, oxygen, ozone, hydrolysis and microbes
  • Low adhesion
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
Cable Accessories
  • Coming Soon!
