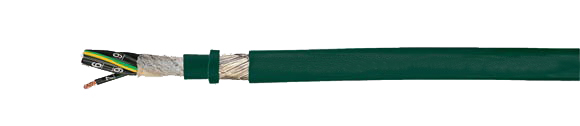

Control Cable: BIOFLEX-500®-JZ-HF-C

Bio-Fuel and Bio-Oil Resistant), Abrasion-Resistant, Recyclable / Environment Friendly, Cable for Drag Chains / Track Cable, Copper Shielded, EMC Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European  , BIOFLEX-500-JZ-HF-C, Abrasion Resistant, Cable for Drag Chain, Recyclable Environment Friendly, EMC (EMI Preferred Type), Bio-Oil Resistant, Cable against biologically decomposable oils, Bio-Oil Resistant, copper shielded
AWG Selection
20 20 18 18 17 17 16 16 14 14
12 12 10 10 8 8 6 6

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
25826 BIOFLEX OZ-HF-500-C 2X0.5   7.5 47.0 90.0 20
25827 BIOFLEX JZ-HF-500-C 3G0.5 7.8 52.0 104.0 20
25828 BIOFLEX JZ-HF-500-C 4G0.5 8.2 55.0 123.0 20
25829 BIOFLEX JZ-HF-500-C 5G0.5 9.9 65.0 131.0 20
25830 BIOFLEX JZ-HF-500-C 7G0.5 10.0 84.0 172.0 20
25831 BIOFLEX JZ-HF-500-C 10G0.5 11.3 115.0 230.0 20
25832 BIOFLEX JZ-HF-500-C 12G0.5 12.5 117.0 250.0 20
25833 BIOFLEX JZ-HF-500-C 14G0.5 13.2 148.0 280.0 20
25834 BIOFLEX JZ-HF-500-C 18G0.5 14.5 157.0 321.0 20
25835 BIOFLEX JZ-HF-500-C 25G0.5 16.8 227.0 445.0 20
25836 BIOFLEX OZ-HF-500-C 2X0.75   8.3 53.0 106.0 18
25837 BIOFLEX JZ-HF-500-C 3G0.75 8.5 62.0 120.0 18
25838 BIOFLEX JZ-HF-500-C 4G0.75 9.5 77.0 150.0 18
25839 BIOFLEX JZ-HF-500-C 5G0.75 10.8 86.0 158.0 18
25840 BIOFLEX JZ-HF-500-C 7G0.75 11.5 107.0 205.0 18
25841 BIOFLEX JZ-HF-500-C 10G0.75 13.1 148.0 290.0 18
25842 BIOFLEX JZ-HF-500-C 12G0.75 14.0 156.0 304.0 18
25843 BIOFLEX JZ-HF-500-C 14G0.75 15.3 214.0 380.0 18
25844 BIOFLEX JZ-HF-500-C 18G0.75 17.3 235.0 418.0 18
25845 BIOFLEX JZ-HF-500-C 25G0.75 18.7 313.0 578.0 18
25846 BIOFLEX OZ-HF-500-C 2X1   10.0 60.0 116.0 17
25847 BIOFLEX JZ-HF-500-C 3G1 10.2 70.0 135.0 17
25848 BIOFLEX JZ-HF-500-C 4G1 11.0 86.0 178.0 17
25849 BIOFLEX JZ-HF-500-C 5G1 11.8 99.0 188.0 17
25850 BIOFLEX JZ-HF-500-C 7G1 12.7 125.0 235.0 17
25851 BIOFLEX JZ-HF-500-C 10G1 14.6 178.0 340.0 17
25852 BIOFLEX JZ-HF-500-C 12G1 15.5 186.0 358.0 17
25853 BIOFLEX JZ-HF-500-C 14G1 16.7 250.0 415.0 17
25854 BIOFLEX JZ-HF-500-C 18G1 18.0 280.0 500.0 17
25855 BIOFLEX JZ-HF-500-C 25G1 21.0 378.0 678.0 17
25856 BIOFLEX OZ-HF-500-C 2X1.5   10.5 79.0 141.0 16
25857 BIOFLEX JZ-HF-500-C 3G1.5 10.8 94.0 164.0 16
25858 BIOFLEX JZ-HF-500-C 4G1.5 11.5 113.0 220.0 16
25859 BIOFLEX JZ-HF-500-C 5G1.5 12.5 129.0 233.0 16
25860 BIOFLEX JZ-HF-500-C 7G1.5 13.2 170.0 323.0 16
25861 BIOFLEX JZ-HF-500-C 8G1.5 14.4 226.0 369.0 16
25862 BIOFLEX JZ-HF-500-C 10G1.5 14.9 258.0 461.0 16
25863 BIOFLEX JZ-HF-500-C 12G1.5 16.2 280.0 481.0 16
25864 BIOFLEX JZ-HF-500-C 14G1.5 18.1 340.0 561.0 16
25865 BIOFLEX JZ-HF-500-C 18G1.5 20.3 395.0 672.0 16
25866 BIOFLEX JZ-HF-500-C 21G1.5 21.7 461.0 780.0 16
25867 BIOFLEX JZ-HF-500-C 25G1.5 23.1 533.0 927.0 16
25868 BIOFLEX OZ-HF-500-C 2X2.5   11.8 96.0 185.0 14
25869 BIOFLEX JZ-HF-500-C 3G2.5 13.0 150.0 278.0 14
25870 BIOFLEX JZ-HF-500-C 4G2.5 14.0 174.0 370.0 14
25871 BIOFLEX JZ-HF-500-C 5G2.5 15.1 200.0 412.0 14
25872 BIOFLEX JZ-HF-500-C 7G2.5 16.2 240.0 470.0 14
25873 BIOFLEX JZ-HF-500-C 12G2.5 21.0 410.0 738.0 14
25874 BIOFLEX JZ-HF-500-C 14G2.5 23.4 480.0 870.0 14
25875 BIOFLEX JZ-HF-500-C 18G2.5 25.7 620.0 1100.0 14
25876 BIOFLEX JZ-HF-500-C 25G2.5 31.0 821.0 1512.0 14
25877 BIOFLEX OZ-HF-500-C 2X4   13.4 135.0 235.0 12
25878 BIOFLEX JZ-HF-500-C 3G4 15.8 178.0 350.0 12
25879 BIOFLEX JZ-HF-500-C 4G4 17.3 222.0 460.0 12
25880 BIOFLEX JZ-HF-500-C 5G4 19.0 328.0 550.0 12
25881 BIOFLEX JZ-HF-500-C 3G6   19.5 250.0 525.0 10
25882 BIOFLEX JZ-HF-500-C 4G6 21.0 305.0 700.0 10
25883 BIOFLEX JZ-HF-500-C 5G6 23.0 441.0 800.0 10
25884 BIOFLEX JZ-HF-500-C 3G10   18.8 370.0 855.0 8
25885 BIOFLEX JZ-HF-500-C 4G10 25.0 485.0 1140.0 8
25886 BIOFLEX JZ-HF-500-C 5G10 26.4 610.0 1310.0 8
25887 BIOFLEX JZ-HF-500-C 4G16   28.0 840.0 1391.0 6
Technical Data
  • Bio-oil resistant, abrasion resistant special high flexible control cable adapted to DIN VDE 0245, 0281
  • Temperature Range
    Flexing
    -20C to +80C (-4F to +176F)
    Fixed Installation
    -40C to +80C (-40F to +176F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 15x cable
    Fixed Installation 4x cable
  • Coupling Resistance
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE Approval
Cable Construction
  • Bare copper, extra fine wire conductors bunch stranded to DIN VDE 0295 cl. 6, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Special polymer conductor insulation, for better sliding abilities
  • Black conductors with continuous white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay length
  • Conductor wrapping with fleece
  • Special inner jacket
  • Copper braided shielding approx. 85% coverage
  • Fleece separator, ensure good dismantling ability
  • Special outer jacket polymer compound
  • Color: Dark Green
Application


European BIOFLEX-HF-500-C is an extremely robust and highly flexible control cable with high abrasion and tear resistant properties, due to its high resistance to bio-fuel, bio-oil and coolant emulsions. It is especially suited for use in the machine, tool making and plant industries as well as in the steel industry for difficult and problem areas. Suitable in combination with cable trays in dry, moist and wet rooms and outdoor installation. The high flexibility of this cable type makes it quick and easy to install. Suitable for outdoor installation or laying in ground. For applications which go beyond standard solutions, we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
) For critical applications we advise for consultation.

Properties
  • Resistant to bio-fuel (diesel and petrol), highly resistant to biologically decomposable oils, oxygen, ozone, hydrolysis and microbes
  • Low adhesion
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
Cable Accessories
  • Coming Soon!
