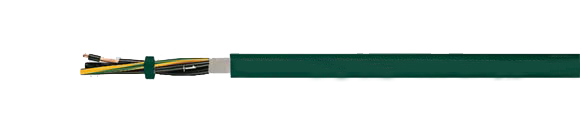

Control Cable: BIOFLEX-500®-JZ-HF

Bio-Fuel and Bio-Oil Resistant), Abrasion Resistant, Recyclable / Environment-Friendly, Cable for Drag Chains / Track Cable

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European  , BIOFLEX-500-JZ-HF, Abrasion Resistant, Cable for Drag Chain, Recyclable Environment Friendly, Bio-Oil Resistant, Cable against biologically decomposable oils, Bio-Oil Resistant
AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12
10
10
8
8
6
6
4
4
2
2
1
1
2/0
2/0
3/0
3/0

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
25761 BIOFLEX OZ-HF-500 2X0.5   5.4 9.6 45.0 20
25762 BIOFLEX JZ-HF-500 3G0.5 5.9 14.4 56.0 20
25763 BIOFLEX JZ-HF-500 4G0.5 6.3 19.1 69.0 20
25764 BIOFLEX JZ-HF-500 5G0.5 6.9 24.0 92.0 20
25765 BIOFLEX JZ-HF-500 7G0.5 7.8 33.6 126.0 20
25766 BIOFLEX JZ-HF-500 10G 0.5 9.6 48.0 158.0 20
25767 BIOFLEX JZ-HF-500 12G0.5 10.3 58.0 176.0 20
25768 BIOFLEX JZ-HF-500 14G0.5 10.3 67.0 212.0 20
25769 BIOFLEX JZ-HF-500 18G0.5 11.5 86.4 283.0 20
25770 BIOFLEX JZ-HF-500 25G0.5 13.6 120.0 330.0 20
25771 BIOFLEX OZ-HF-500 2X0.75   5.9 14.4 57.0 18
25772 BIOFLEX JZ-HF-500 3G0.75 6.2 21.6 72.0 18
25773 BIOFLEX JZ-HF-500 4G0.75 6.7 29.0 97.0 18
25774 BIOFLEX JZ-HF-500 5G0.75 7.3 36.0 119.0 18
25775 BIOFLEX JZ-HF-500 7G0.75 8.7 50.0 165.0 18
25776 BIOFLEX JZ-HF-500 10G0.75 10.5 72.0 214.0 18
25777 BIOFLEX JZ-HF-500 12G0.75 11.0 86.0 247.0 18
25778 BIOFLEX JZ-HF-500 14G0.75 11.4 101.0 283.0 18
25779 BIOFLEX JZ-HF-500 18G0.75 12.6 130.0 356.0 18
25780 BIOFLEX JZ-HF-500 25G0.75 15.2 180.0 698.0 18
25781 BIOFLEX OZ-HF-500 2X1   6.6 19.0 64.0 17
25782 BIOFLEX JZ-HF-500 3G1 7.0 29.0 83.0 17
25783 BIOFLEX JZ-HF-500 4G1 7.6 38.5 113.0 17
25784 BIOFLEX JZ-HF-500 5G1 8.2 48.0 137.0 17
25785 BIOFLEX JZ-HF-500 7G1 9.6 67.0 191.0 17
25786 BIOFLEX JZ-HF-500 10G1 11.6 96.0 251.0 17
25787 BIOFLEX JZ-HF-500 12G1 12.0 115.0 294.0 17
25788 BIOFLEX JZ-HF-500 14G1 13.0 134.0 337.0 17
25789 BIOFLEX JZ-HF-500 18G1 14.5 173.0 420.0 17
25790 BIOFLEX JZ-HF-500 25G1 17.6 240.0 600.0 17
25791 BIOFLEX OZ-HF-500 2X1.5   7.1 29.0 90.0 16
25792 BIOFLEX JZ-HF-500 3G1.5 7.5 43.0 117.0 16
25793 BIOFLEX JZ-HF-500 4G1.5 8.2 58.0 147.0 16
25794 BIOFLEX JZ-HF-500 5G1.5 9.0 72.0 181.0 16
25795 BIOFLEX JZ-HF-500 7G1.5 10.8 101.0 274.0 16
25796 BIOFLEX JZ-HF-500 10G1.5 13.4 144.0 344.0 16
25797 BIOFLEX JZ-HF-500 12G1.5 13.4 173.0 391.0 16
25798 BIOFLEX JZ-HF-500 14G1.5 14.3 202.0 457.0 16
25799 BIOFLEX JZ-HF-500 18G1.5 16.0 259.0 589.0 16
25800 BIOFLEX JZ-HF-500 25G1.5 19.5 360.0 801.0 16
25801 BIOFLEX OZ-HF-500 2X2.5   8.6 48.0 128.0 14
25802 BIOFLEX JZ-HF-500 3G2.5 9.3 72.0 160.0 14
25803 BIOFLEX JZ-HF-500 4G2.5 10.3 96.0 200.0 14
25804 BIOFLEX JZ-HF-500 5G2.5 11.5 120.0 268.0 14
25805 BIOFLEX JZ-HF-500 7G2.5 13.4 168.0 357.0 14
25806 BIOFLEX JZ-HF-500 12G2.5 17.0 288.0 571.0 14
25807 BIOFLEX JZ-HF-500 14G2.5 18.5 336.0 612.0 14
25808 BIOFLEX JZ-HF-500 18G2.5 20.0 432.0 800.0 14
25809 BIOFLEX JZ-HF-500 25G2.5 29.6 600.0 1100.0 14
25810 BIOFLEX OZ-HF-500 2X4   10.4 77.0 190.0 12
25811 BIOFLEX JZ-HF-500 3G4 11.2 115.0 250.0 12
25812 BIOFLEX JZ-HF-500 4G4 12.5 154.0 320.0 12
25813 BIOFLEX JZ-HF-500 5G4 13.8 192.0 400.0 12
25814 BIOFLEX JZ-HF-500 3G6   13.0 173.0 350.0 10
25815 BIOFLEX JZ-HF-500 4G6 14.7 230.0 500.0 10
25816 BIOFLEX JZ-HF-500 5G6 16.0 288.0 580.0 10
25817 BIOFLEX JZ-HF-500 3G10   17.4 288.0 660.0 8
25818 BIOFLEX JZ-HF-500 4G10 19.0 384.0 750.0 8
25819 BIOFLEX JZ-HF-500 5G10 21.3 480.0 990.0 8
25820 BIOFLEX JZ-HF-500 4G16   23.2 614.0 1200.0 6
25821 BIOFLEX JZ-HF-500 4G25   34.0 960.0 1700.0 4
25822 BIOFLEX JZ-HF-500 4G35   37.0 1344.0 2300.0 2
25823 BIOFLEX JZ-HF-500 4G50   44.0 1920.0 2500.0 1
25824 BIOFLEX JZ-HF-500 4G70   53.0 2688.0 4600.0 2/0
25825 BIOFLEX JZ-HF-500 4G95   59.0 3648.0 6400.0 3/0
Technical Data
  • Bio-oil resistant, abrasion resistant special highly flexible control cable adapted to DIN VDE 0245, 0281
  • Temperature Range
    Flexing
    -20C to +80C (-4F to +176F)
    Fixed Installation
    -40C to +80C (-40F to +176F)
  • Nominal Voltage
    U0/U 300/500 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable
    Fixed Installation 4x cable
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE Approval
Cable Construction
  • Bare copper, extra fine wire conductors bunch stranded to DIN VDE 0295 cl. 6, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Special polymer conductor insulation, for better sliding abilities
  • Black conductors with continuous white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay-length
  • Conductor wrapping with fleece
  • Special outer jacket, polymer compound
  • Color: Dark Green
Application

European BIOFLEX-HF-500 is an extremely robust and highly flexible control cable with high abrasion and tear resistant properties due to its high resistance to bio-fuel, bio-oil and coolant emulsions. It is especially suited for use in the machine, tool making and plant industries as well as in the steel industry for difficult and problem areas. Suitable in combination with cable trays in dry, moist and wet rooms and outdoor installation. The high flexibility of this cable type makes it quick and easy to install. Suitable for outdoor installation or laying in ground. For applications which go beyond standard solutions, we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
) For critical applications we advise for consultation.

Properties
  • Resistant to bio-fuel (diesel and petrol), highly resistant to biologicaly decomposable oils, oxygen, ozone, hydrolysis and microbes
  • Low adhesion
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
