Mil W 81822/13

Sealcon, Inc, European & Domestic cable

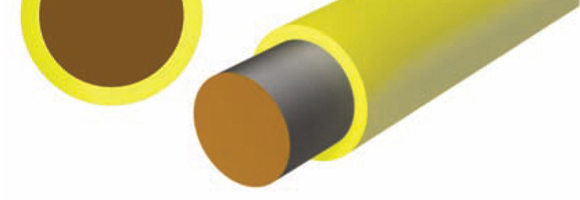

Sealcon, UL AWM Style 10045 cable
Mil W 81822/13
Part No: AWG Conductor Normal O.D Weight Lb / KFT
Inches MIN (IN) MAX (IN)
S18B01TX-7 18 0.0403 0.0510 0.0570 5.69
S20B01TX-7 20 0.0320 0.0440 0.0480 3.72
S22B01TX-7 22 0.0253 0.0370 0.0410 2.46
S24B01TX-7 24 0.0201 0.0325 0.0355 1.66
S26B01TX-7 26 0.0159 0.0280 0.0310 1.14
S28B01TX-7 28 0.0126 0.0250 0.0280 0.80
S30B01TX-4.75** 30 0.0100 0.0185 0.0205 0.47
Technical Data
  • Size Range
    18 AWG - 30 AWG
  • Temperature Range
    150°C
    Voltage: 300 v
  • Insulation: ETFE
  • Applications:
    Backpanel wire wrap
  • Compliances:
    Cage Code: IEPN7
    Meets UL AWM Styles: (certain sizes)
    1508, 1513, 1517, 1523, 1586, 10316
    **30 AWG can be tri-rated UL 1516, CSA, And
    MIL-W-81822/13
  • Mil Spec terms for alternave conductors:
    81822/13A - SPC
    81822/13B - SPC OFHC
    81822/13C - SP high strength alloy
    Rubadue standard product meets 13A & 13B
  • Insulation Pull-Off (lbs)
    28 AWG: 0.5 to 2.5
    30 AWG: 0.4 to 2.5
Approvals
ULUL/CSA Approval
Conductor:
  • Silver plated copper OFHC Solid (ASTM B-298) Also available in SPA
