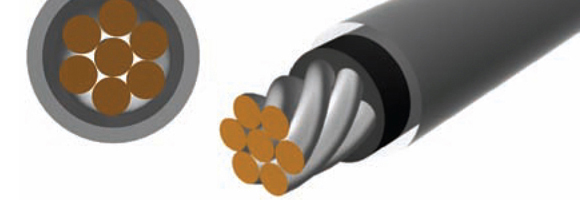

European BIOFLEX-500-JZ Cable Bio-Fuel Resistant

Double Insulated DuPont ETFE .003" / Layer

Part No:	AWG	Conductor		Normal O.D		Weight Lb / KFT
Part No:	AWG	Inches	mm	Inches	mm	Weight Lb / KFT
D10A37TXX-3	10(37/26)	0.1070	2.718	0.1190	3.023	30.45
D12A01TXX-3	12	0.0808	2.052	0.0928	2.357	21.01
D12A19TXX-3	12(19/25)	0.0862	2.189	0.0982	2.494	20.08
D14A01TXX-3	14	0.0641	1.628	0.0761	1.933	13.37
D14A19TXX-3	14(19/27)	0.0679	1.725	0.0799	2.029	12.83
D16A01TXX-3	16	0.0508	1.290	0.0628	1.595	8.60
D18A01TXX-3	18	0.0403	1.024	0.0523	1.328	5.56
D20A01TXX-3	20	0.0320	0.813	0.0440	1.118	3.62
D21A01TXX-3	21	0.0285	0.724	0.0405	1.029	2.94
D22A01TXX-3	22	0.0253	0.643	0.0373	0.947	2.37
D23A01TXX-3	23	0.0226	0.574	0.0346	0.879	1.95
D24A01TXX-3	24	0.0201	0.511	0.0321	0.815	1.58
D25A01TXX-3	25	0.0179	0.455	0.0299	0.759	1.30
D26A01TXX-3	26	0.0159	0.404	0.0279	0.709	1.07
D27A01TXX-3	27	0.0142	0.361	0.0262	0.665	0.89
D28A01TXX-3	28	0.0126	0.320	0.0246	0.625	0.74
D29A01TXX-3	29	0.0113	0.287	0.0233	0.592	0.63
D30A01TXX-3	30	0.0100	0.254	0.0220	0.559	0.53
D31A01TXX-3	31	0.0089	0.226	0.0209	0.531	0.45
D32A01TXX-3	32	0.0080	0.203	0.0200	0.508	0.39

Technical Data

Size Range
UL: 10 AWG - 40 AWG
VDE: 14 AWG - 40 AWG
Not all sizes listed in chart
Temperature Range
155°C
Voltage: 300V / 1000 V
Insulation: DuPont ETFE Tefzel®

Applications:Electronic
Supplementary isolation applications
Medical/Dental 30-40 AWG only
Compliances:
UL OBJT2 File No. E206198
UL/IEC 60950-1 (ed. 2), Annex U. UL 2601
IEC 61558-1
VDE License Nr. 136743: Class F
System approvals: UL 1446
RXT-2 Class F
TCA Class F
Other systems available upon request
RoHS Compliant
Tensile Strength: 6500 psi
Breakdown: Approx. 9000 V

Approvals

Conductor:

Tin plated copper
Solid or stranded (ASTM B-33/ASTM B-286)
Bare copper and other conductors available.

Double Insulated DuPont ETFE .003" / Layer
