Hi-Tech Controls European Telephone Cables & Fire Warning Cables: J-YY Bd

Telephone Installation Cable, According to VDE 0815

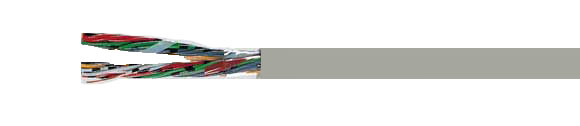

J-YY Telephone Installation Cable, According to VDE 0815, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Description & No. of Pairs x Diameter in mm Outer Ø (mm) Cop. Weight
kg/km
Weight
kg/km
AWG
33100  J-YY 2x2x0.6 4.5 11.0 34.0 -
33101  J-YY 4x2x0.6 6.5 23.0 59.0 -
33102  J-YY 6x2x0.6 7.0 34.0 74.0 -
33103  J-YY 10x2x0.6 8.5 57.0 111.0 -
33104  J-YY 16x2x0.6 10.0 90.0 160.0 -
33105  J-YY 20x2x0.6 11.0 113.0 200.0 -
33106  J-YY 24x2x0.6 11.5 136.0 224.0 -
33107  J-YY 30x2x0.6 13.0 170.0 284.0 -
33108  J-YY 40x2x0.6 15.0 226.0 364.0 -
33109  J-YY 50x2x0.6 16.5 283.0 451.0 -
33110  J-YY 60x2x0.6 17.5 339.0 529.0 -
33111  J-YY 80x2x0.6 20.3 452.0 700.0 -
33112  J-YY 100x2x0.6 22.3 565.0 850.0 -
Technical Data European
  • Installation cable according to DIN VDE 0815
  • Temperature Range
    During Operation
    -5°C to +50°C (+23°F to +122°F)
    Before and After Installation
    -30°C to +70°C (-22°F to +158°F)
  • Loop Resistance
    At 20°C/+68°F max. 130 Ohm/km
  • Nominal Voltage
    (Peak voltage) 300 V
  • Test Voltage (50 Hz)
    Conductor/conductor U eff. - 800 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance
    At 800 Hz max. 1001) nF/km
  • Capacitance Unbalances at 800 Hz
    k1 max. 3002) pF/100 m
    k9...K12 max. 1003) pF/100 m
  • Line Attenuation
    At 800 Hz 1.48 dB/km
  • Minimum Bending Radius
    To DIN VDE 0891 part 5 during delivery
    7.5 x cable Ø
    Single bending without tension
    2.5 x cable Ø
    Repeated bending under tension
    7.5 x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper conductor, solid, 0.6 mm Ø
  • PVC conductor insulation, compound type YI1 to DIN VDE 0207, insulation wall-thickness 0.2 mm to table 7
  • Conductor and star quad identification to DIN VDE 0815
  • The conductors to a quad and each 5 quads to a unit and several units are stranded in layer
  • Conductor wrapping with plastic tape
  • PVC outer jacket gray, flame retardant, compound type YM1 to DIN VDE 0207 part 5, jacket wall-thickness to DIN VDE 0815 table 19
Application
J-YY installation cables are preferably used as telephone cables in telephone stations and sub-extensions, suitable for installation in dry and damp environments in, on and under plaster as well as in the open air for fixed installation on outer walls of buildings.
Telephone-Installation cables are not allowed for purposes of high current and power installation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • ¹) This value may be extended by 20% with a make-up to 4 pairs.
  • ²) 20% of the values, but one value up to 500 pF is allowed.
  • ³) 10% of the values, but four values (relationship) up to 300 pF are allowed.
Cable Accessories
  • Coming Soon!
