Hi-Tech Controls European Telephone Cables & Fire Warning Cables: A-2Y(L)2Y

Bd Telephone Outdoor Cable, According to VDE 0816, Laminated Jacket, Unfilled

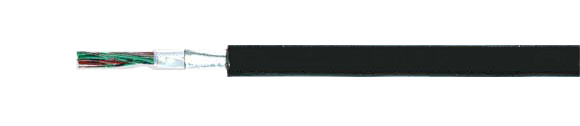

A-2Y(L)2Y Bd Telephone Outdoor Cable, According to VDE 0816, Laminated jacket, Unfilled, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Description & No. of Pairs x Diameter in mm Outer Ø (mm) Cop. Weight
kg/km
Weight
kg/km
AWG
34100 A-2Y (L) 2Y 2X2X0.6 8.0 11.0 82.0 -
34101 A-2Y (L) 2Y 4X2X0.6 10.0 23.0 127.0 -
34102 A-2Y (L) 2Y 6X2X0.6 11.5 34.0 132.0 -
34103 A-2Y (L) 2Y 10X2X0.6 12.5 57.0 171.0 -
34104 A-2Y (L) 2Y 20X2X0.6 15.5 113.0 268.0 -
34105 A-2Y (L) 2Y 30X2X0.6 17.5 170.0 358.0 -
34106 A-2Y (L) 2Y 40X2X0.6 19.5 226.0 438.0 -
34107 A-2Y (L) 2Y 50X2X0.6 21.0 283.0 531.0 -
34108 A-2Y (L) 2Y 70X2X0.6 24.5 396.0 712.0 -
34109 A-2Y (L)2Y 100X2X0.6 28.0 565.0 950.0 -
34110 A-2Y (L)2Y 150X2X0.6 33.0 848.0 1348.0 -
34111 A-2Y(L)2Y 200X2X0.6 37.0 1131.0 1758.0 -
34112 A-2Y(L)2Y 250X2X0.6 40.5 1414.0 2137.0 -
34113 A-2Y (L)2Y 300X2X0.6 44.0 1696.0 2533.0 -
34114 A-2Y (L)2Y 350X2X0.6 47.5 1979.0 2954.0 -
34115 A-2Y (L)2Y 400X2X0.6 50.0 2262.0 3342.0 -
34130 A-2Y(L)2Y 2X2X0.8 11.0 20.0 102.0 -
34131 A-2Y(L)2Y 4X2X0.8 12.0 40.0 158.0 -
34132 A-2Y(L)2Y 6X2X0.8 13.0 60.0 179.0 -
34133 A-2Y(L)2Y 10X2X0.8 14.5 101.0 241.0 -
34134 A-2Y(L)2Y 20X2X0.8 18.0 201.0 393.0 -
34135 A-2Y(L)2Y 30X2X0.8 21.0 302.0 540.0 -
34136 A-2Y(L)2Y 40X2X0.8 23.0 402.0 675.0 -
34137 A-2Y(L)2Y 50X2X0.8 25.5 503.0 842.0 -
34138 A-2Y(L)2Y 70X2X0.8 29.0 704.0 1105.0 -
34139 A-2Y(L)2Y 100X2X0.8 34.0 1005.0 1524.0 -
34140 A-2Y(L)2Y 150X2X0.8 40.0 1508.0 2208.0 -
34141 A-2Y(L)2Y 200X2X0.8 46.5 2011.0 2915.0 -
34142 A-2Y(L)2Y 250X2X0.8 51.0 2514.0 3575.0 -
34143 A-2Y(L)2Y 300X2X0.8 53.0 3016.0 4232.0 -
34144 A-2Y(L)2Y 350X2X0.8 56.5 3519.0 4940.0 -
34145 A-2Y(L)2Y 400X2X0.8 60.0 4022.0 5565.0 -
34146 A-2Y(L)2Y 500X2X0.8 68.0 5027.0 6955.0 -
34147 A-2Y(L)2Y 600X2X0.8 73.0 6032.0 8240.0 -
Technical Data European
  • According to DIN VDE 0816
  • Temperature Range
    Flexible
    -20°C to +50°C (-4°F to +122°F)
    Fixed Installation to +70°C/+158°F
  • Loop Resistance at 20°C/-4°F
    0.6 mm = max. 130 Ohm/km
    0.8 mm = max. 73.2 Ohm/km
  • Operating Voltage (peak voltage)
    Max. 225 V
  • Test Voltage
    Conductor/conductor U eff. 500²)
    Conductor/shield U eff. 2000 V
  • Insulation Resistance
    Min. 5 GOhm x km
  • Line Attenuation
    Of side circuits at 800 Hz
    0.6 mm = 1.04 dB/km
    0.8 mm = 0.78 dB/km
  • Impedance
    Of side circuits at 800 Hz
    0.6 mm = 720 Ohm
    0.8 mm = 520 Ohm
  • Minimum Bending Radius
    Approx. 10x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper conductor, solid, 0.6 and 0.8 mm Ø
  • PE (2Y) conductor insulation, wall-thickness as per DIN VDE 0816 table 4
  • Conductor identification of quads marked with black rings
  • 4 conductors twisted to a star quad
  • 5 star quads stranded to sub units, each 5 or 10 sub units stranded to main units and the sub or main units stranded to cable conductor
  • Conductor wrapping with several plastic tapes
  • Outer jacket, as laminated jacket (L)2Y, PE-coated aluminum tape spliced with PE (2Y) jacket
  • PE-outer jacket color: Black
  • Jacket marking continuously with telephone-receiver, meter marking in white color
Application
These external subscriber telephone cables are installed as telecommunication connection cable for connecting the telephone extension to the telephone exchange or central offices and as well as for industrial plants.
These subscriber connecting cables are suitable for laying in under ground, in cable ducts and cable conduits - and also for indoor-laying.
Both sides of PE-copolymer coated aluminum type (L), which is spliced with the outer PE-jacket ensures a barrier against water vapor and diagonally water-proof.
Black colored PE-jacket is UV-resistant.
The Polyethylene material (PE 2Y) is halogen-free.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • These cables are not allowed for power installation
  • For fire and hazardous areas, this cable type with PE-jacket is not permitted for installation without enough protective precaution
  • Mutual Capacitance at 800 Hz
    Of all values 100%
    0.6 mm - max. 52 nF/km
    0.8 mm - max. 55 nF/km
    Of all values 95%
    0.6 mm - max. 50¹) nF/km
    0.8 mm - max. 53¹) nF/km
    Of all values 80%
    0.6 mm - max. 48 nF/km
    0.8 mm - max. 50 nF/km
  • Capacitance Unbalances at 800 Hz
    Of all values k1 100% - max. 800¹) pF/300 m
    Of all values k1 98% - max. 400 pF/300 m
    Of all values k9 - 12 100%-max. 300¹) pF/300 m
    Of all values k9 - 12 98% - max. 100 pF/300 m
Note
  • ¹) But at least for 2 quads.
  • ²) Local cables with more than 100 pairs the test conductor/conductor is emitted.
  • Conductor Ø 0.4 mm on request.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
