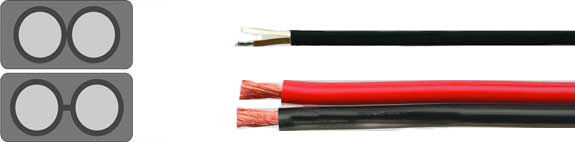

Special Cables: HELUTRUCK® 272 / 273

Flat Cable for the Sideways Lighting with GGVS-Authorization, Battery Cable, Battery Charging Cable

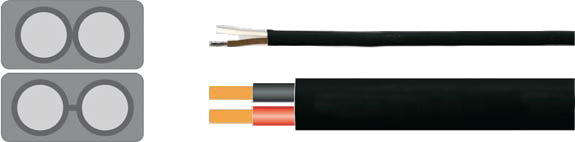

Special Cables, Truck Cables, HELUTRUCK® 272 / 273 Flat cable for the sideways lighting with GGVS-authorization, Battery cable, Battery charging cable, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
HELUTRUCK® 272
Part-No. Description & No. Conductors
x cross-sec. mm2
Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
76706  HELUTRUCK® 272 2X1.5 6.8 28.8 90.0 16
700035  HELUTRUCK® 272 2X1.5 6.8 28.8 90.0 16
78983  HELUTRUCK® 272 2X1.5 6.8 28.8 90.0 16

HELUTRUCK® 273
Part-No. Description & No. Conductors
x cross-sec. mm2
Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
75507  HELUTRUCK® 273 2X2.5 9.4 48.0 87.0 14
75508  HELUTRUCK® 273 2X4 11.5 77.0 125.0 12
75509  HELUTRUCK® 273 2X6 15.2 116.0 175.0 10
75510  HELUTRUCK® 273 2X10 18.8 192.0 270.0 8
75511  HELUTRUCK® 273 2X16 21.0 308.0 390.0 6
75512  HELUTRUCK® 273 2X25 25.6 480.0 575.0 4
75513  HELUTRUCK® 273 2X35 28.0 672.0 820.0 2
75514  HELUTRUCK® 273 2X50 33.0 960.0 1065.0 1
75515  HELUTRUCK® 273 2X70 36.0 16.8 1475.0 2/0
Technical Data European
HELUTRUCK® 272
  • Temperature Range
    -40°C to +85°C (-40°F to +108°F)
  • Test Voltage
    2000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Fixed installation 5x cable Ø
HELUTRUCK® 273
  • Temperature Range
    -
    40°C to +85°C (-40°F to +108°F)
  • Nominal Voltage
    75 V DC
  • Test Voltage
    3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Fixed installation 15x cable Ø
Approvals
RoHSCE
Cable Construction
HELUTRUCK® 272
  • Bare copper wire conductors in acc. with DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
  • Special PVC conductor insulation, cold-resistant
  • Conductor colors white, brown (Part No. 76706), white, black (Part No. 78983, 700035)
  • Cold-resistant special PVC jacket
  • Color: black
HELUTRUCK® 273
  • Bare copper, fine wire in acc. with DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
  • Special PVC conductor insulation, cold-resistant
  • Conductor colors red and black
  • Cold-resistant special PVC jacket
  • Color: black
Also available with PUR jacket
Application
HELUTRUCK® 272
This low voltage cable is designed for the wiring of electrical installations in the manufacture of commercial vehicles. Especially suited for trailers and semi trailers. This flat cable can be used for simple and quick contacting of side lights by means of conductor penetration. Its flat construction and the special contacting method eliminate the need for time consuming assembly of cables. This facilitates quick installation, making it possible to save a great deal of time.
HELUTRUCK® 273
This battery cable can be used between the battery and the ultimate consumer
(e.g. DC motor of the trail-lift).
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • UV-resistant, largely resistant to oil, weather, and chemicals, self-extinguishing and flame retardant, test method B according to VDE 0472 part 804 and IEC 60332-1
  • Chemical resistance see table Technical Information
  • Component codes TÜ.EGG.075-03
HELUTRUCK® 272
  • Polarity easy to determine by a white line on the jacket above the white conductor
HELUTRUCK® 273
  • Complies with GGVS regulations
  • Approved and tested by the TÜV technical inspectorate
  • The additional jacket means that the cable is very robust, and can be installed without a corrugated conduit
  • Installation time is shorter due to twin design
  • Polarity is easy to determine even without stripping thanks to an imprint with the type designation on the jacket over the positive conductor which helps prevent wrong connections
  • The special construction of the conductor enables optimal crimping
  • Easy mechanical separation of the jacket web
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
