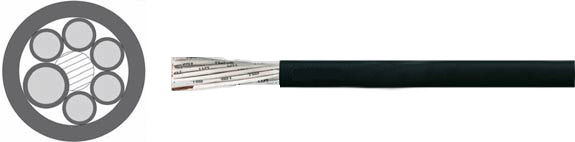

European Special Cables: HELUTRUCK® 270

With ADR-Approval, PUR, Low Voltage Cable for Commercial Vehicles
Special Cables, Truck Cables, HELUTRUCK® 270, with ADR-Approval, PUR, low voltage cable for commercial vehicles, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors
x cross-sec. mm2
Conductor
Colors
Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
700016  HELUTRUCK® 270 2x0.5 View Colors 4.8 9.6 40.0 20
700575  HELUTRUCK® 270 2x0.75 + 2x1.5 View Colors 7.0 43.2 91.0 18
700582  HELUTRUCK® 270 7x0.75 View Colors 7.3 50.4 101.0 18
75254  HELUTRUCK® 270 2x1 View Colors 6.0 19.2 56.0 17
75255  HELUTRUCK® 270 2x1 View Colors 6.0 19.2 56.0 17
75256  HELUTRUCK® 270 3x1 View Colors 6.3 28.8 66.0 17
700578  HELUTRUCK® 270 3x1 View Colors 6.6 28.8 66.0 17
75257  HELUTRUCK® 270 4x1 View Colors 6.8 38.54 80.0 17
75259  HELUTRUCK® 270 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
700581  HELUTRUCK® 270 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
700580  HELUTRUCK® 270 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
75260  HELUTRUCK® 270 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
75258  HELUTRUCK® 270 5x1 View Colors 7.5 48.0 98.0 17
700577  HELUTRUCK® 270 2x1.5 View Colors 6.6 28.8 66.0 16
700576  HELUTRUCK® 270 2x1.5 View Colors 6.6 28.8 66.0 16
700579  HELUTRUCK® 270 4x1.5 View Colors 7.5 57.6 106.0 16
75262  HELUTRUCK® 270 6x1.5 + 1x2.5 View Colors 10.3 110.5 187.0 16
700032  HELUTRUCK® 270 7x1.5 View Colors 10.3 100.8 185.0 16
75261  HELUTRUCK® 270 7x1.5 View Colors 8.9 100.2 165.0 16
75263  HELUTRUCK® 270 8x1.5 + 1x2.5 View Colors 11.7 139.2 238.0 16
700583  HELUTRUCK® 270 8x1.5 + 5x2.5 View Colors 14.8 235.2 360.0 16
75267  HELUTRUCK® 270 9x1.5 + 4x2.5 View Colors 14.8 200.0 350.0 16
75319  HELUTRUCK® 270 10x1.5 + 3x2.5 + 2x1.5 View Colors 14.4 244.8 393.0 16
75266  HELUTRUCK® 270 10x1.5 + 3x2.5 View Colors 13.0 216.0 345.0 16
75265  HELUTRUCK® 270 10x1.5 + 3x2.5 View Colors 14.4 215.0 366.0 16
700017  HELUTRUCK® 270 10x1.5 + 3x2.5 + 2x1.5 View Colors 14.3 244.8 391.0 16
700018  HELUTRUCK® 270 11x1.5 + 3x2.5 View Colors 13.5 230.4 365.0 16
700142  HELUTRUCK® 270 3x2.5 + 4x1.5 View Colors 10.3 139.6 221.0 14
European Part-No. Conductor Colors
700016 white, black
700575 white, brown / 0.75 mm2, green, yellow / 1.5 mm2
700582 white, black, yellow, red, green, brown, blue
75254 white, black
75255 white, brown
75256 black, blue, brown
700578 white, brown, blue
75257 white, black, red, brown
75259 green, brown, red, blue, violet / 1.0 mm2, white / 2.5 mm2
700581 brown, yellow, red, gray, violet / 1.0 mm2, white / 2.5 mm2
700580 brown, green, red, gray, violet / 1.0 mm2, white / 2.5 mm2
75260 yellow, black, red, blue, violet / 1.0 mm2, white / 2.5 mm2
75258 white, brown, green, red, gray
700577 white, brown
700576 white, black
700579 white, black, red, brown
75262 black, yellow, red, green, brown, blue / 1.5 mm2, white / 2.5 mm2
700032 pink, blue, orange, white-red, white-green, white-blue, white-black
75261 white, black, yellow, red, green, brown, blue
75263 black, yellow, red, green, brown, blue, gray, violet / 1.5 mm2, white / 2.5 mm2
700583 yellow, blue, green, brown, red, black, pink, white-blue / 1.5 mm2, white, orange, gray, white-black, white-red / 2.5 mm2
75267 white with black numbers, no. 2, 4-8, 10-12 / 1.5 mm2, no. 1, 3, 9, 13 / 2.5 mm2
75319 white with black numbers, no. 1-3, 5-8, 10-12 / 1.5 mm2, no. 4, 9, 13 / 2.5 mm2, data pair no. 14-15 / 1.5 mm2
75266 white with black numbers, no. 1, 2, 4-8, 10-12 / 1.5 mm2, no. 3, 9, 13 / 2.5 mm2
75265 white with black numbers, like part number 75319, without data pair
700017 white-blue, white-black, white-brown, white-green, yellow, green, blue, black, brown, red, violet, gray, / 1.5 mm2
700018 white-brown, white-green, orange, white-red, white-blue, white-black, pink, blue, yellow, green, red / 1.5 mm2, white, brown, black / 2.5 mm2
700142 white-brown, gray, yellow, red / 1.5 mm2, white, brown, black / 2.5 mm2
Technical Data European
  • Temperature Range
    -40°C to +85°C (-40°F to +185°F)
  • Test Voltage
    2000 V min. 5 minutes
  • Capacitance
    Max. 50 pF/m for the data pair
    Max. 100 pF/m between data pair Conductors and the other conductors
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Approx. 12 x cable Ø
Approvals
RoHSCE
Cable Construction
  • Bare copper, fine wire in acc. with DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
  • Cold-resistant special PVC conductor insulation
  • Conductor coding:
    up to 9 conductors by color,
    10 conductors and above white with numbers (see below)
  • Special PVC jacket
  • Color: black
Application
These low-voltage cables are designed for the wiring of electrical installations in the manufacture of commercial vehicles.
Especially suitable for trailers and semi trailers.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Cold-resistant special PVC jacket, UV-resistant
  • Largely resistant to oil, weather, and chemicals; Chemical resistance see table Technical Information
  • PVC self-extinguishing and flame retardant, test method B according to VDE 0472 part 804 and IEC 60332-1
  • These cables conform to the national standard ISO 4141 and the international standard DIN/ISO 6722
  • Component codes TÜ.EGG.073-03
Special feature:
  • Complies with GGVS regulations
  • Approved and tested by the TÜV technical inspectorate
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
