European Special Cables: HELUTRUCK® 271

With ADR-Approval, PUR, Low Voltage Cable for Commercial Vehicles
Special Cables, Truck Cables, HELUTRUCK® 271, with ADR-Approval, PUR, low voltage cable for commercial vehicles, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors
x cross-sec. mm2
Conductor
Colors
Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
75528  HELUTRUCK® 271 2x1 View Colors 6.0 19.0 56.0 17
700585  HELUTRUCK® 271 2x0.75 + 2x1.5 View Colors 7.0 43.2 91.0 18
75529  HELUTRUCK® 271 2x1 View Colors 6.0 19.0 56.0 17
700587  HELUTRUCK® 271 2x1.5 View Colors 6.6 28.8 67.0 16
700586  HELUTRUCK® 271 2x1.5 View Colors 6.6 28.8 67.0 16
75932  HELUTRUCK® 271 2x4 + 3x1.5 + 2x1.5 View Colors 12.0 148.8 230.0 12
75541  HELUTRUCK® 271 2x6 + 3x1.5 + 2x1.5 View Colors 12.0 187.2 320.0 10
75540  HELUTRUCK® 271 2x6 + 3x1.5 View Colors 12.0 158.6 270.0 10
700588  HELUTRUCK® 271 3x1 View Colors 6.3 28.8 66.0 17
75530  HELUTRUCK® 271 3x1 View Colors 6.3 28.8 66.0 17
75531  HELUTRUCK® 271 4x1 View Colors 6.8 38.5 80.0 17
700589  HELUTRUCK® 271 4x1.5 View Colors 7.5 57.6 105.0 16
75532  HELUTRUCK® 271 5x1 View Colors 7.5 48.1 98.0 17
700591  HELUTRUCK® 271 5x1 + 1x0.25 View Colors 9.0 72.0 132.0 17
700590  HELUTRUCK® 271 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
75534  HELUTRUCK® 271 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
75533  HELUTRUCK® 271 5x1 + 1x2.5 View Colors 9.0 72.0 132.0 17
75536  HELUTRUCK® 271 6x1.5 + 1x2.5 View Colors 10.3 110.4 187.0 16
700592  HELUTRUCK® 271 7x0.75 View Colors 7.9 50.4 100.0 18
75535  HELUTRUCK® 271 7x1.5 View Colors 8.9 100.8 165.0 16
75537  HELUTRUCK® 271 8x1.5 + 1x2.5 View Colors 11.7 139.2 238.0 16
75538  HELUTRUCK® 271 10x1.5 + 3x2.5 + 2x1.5 View Colors 14.4 244.8 393.0 16
75539  HELUTRUCK® 271 10x1.5 + 3x2.5 View Colors 14.4 214.0 366.0 16
700594  HELUTRUCK® 271 10x1.5 + 3x2.5 View Colors 14.4 214.0 366.0 16
700595  HELUTRUCK® 271 18x1.5 View Colors 17.0 259.2 520.0 16
700596  HELUTRUCK® 271 25x1.5 View Colors 19.9 360.0 730.0 16
European Part-No. Conductor Colors
75528 white, black
700585 white, brown / 0.75 mm2, green, yellow / 1.5 mm2
75529 white, brown
700587 white, brown
700586 white, black
75932 red, brown / 4 mm2, black, yellow, white / 1.5 mm2, data pair white-gray / white-brown / 1.5 mm2
75541 red, brown / 6 mm2, black, yellow, white / 1.5 mm2, data pair white-gray / white-brown / 1.5 mm2
75540 red, brown / 6 mm2, black, yellow, white / 1.5 mm2
700588 white, brown, blue
75530 black, blue, brown
75531 white, black, red, brown
700589 white, black, red, brown
75532 white, brown, green, red, gray
700591 brown, yellow, red, gray, violet / 1.0 mm2, white / 2.5 mm2
700590 brown, green, red, gray, violet / 1.0 mm2, white / 2.5 mm2
75534 yellow, black, red, blue, violet / 1.0 mm2, white / 2.5 mm2
75533 green, brown, red, blue, violet / 1.0 mm2, white / 2.5 mm2
75536 black, yellow, red, green, brown, blue / 1.5 mm2, white / 2.5 mm2
700592 white, black, yellow, red, green, brown, blue
75535 white, black, yellow, red, green, brown, blue
75537 black, yellow, red, green, brown, blue, gray, violet / 1.5 mm2, white / 2.5 mm2
75538 white with black numbers, no. 1-3, 5-8, 10-12 / 1.5 mm2, no. 4, 9, 13 / 2.5 mm2, data pair no. 14-15 / 1.5 mm2
75539 white with black numbers, no. 1-3, 5-8, 10-12 / 1.5 mm2, no. 4, 9, 13 / 2.5 mm2, without data pair
700594 yellow, green, blue, black, brown, red, pink, gray, white-black, white-blue / 1.5 mm2, white, orange, white-red / 2.5 mm2
700595 white with black numbers
700596 white with black numbers
Technical Data European
  • Temperature Range
    -40°C to +85°C (-40°F to +185°F)
  • Test Voltage
    2000 V min. 5 minutes
  • Capacitance
    Max. 50 pF/m for the data pair
    Max. 100 pF/m between data pair Conductors and the other conductors
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Approx. 12 x cable Ø
Approvals
RoHSCE

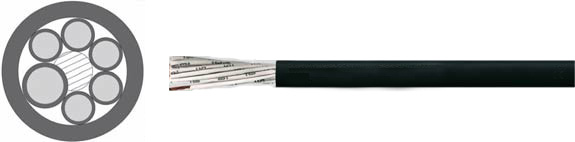

Cable Construction
  • Bare copper, fine wire in acc. with DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
  • Cold-resistant special PVC conductor insulation
  • Conductor coding:
    up to 9 conductors by color,
    10 conductors and above white with numbers (see below)
  • Inner jacket from special PVC
  • PUR outer jacket
  • Color: black
  • Also available with PVC jacket
Application
These low-voltage cables are designed for the wiring of electrical installations in the manufacture of commercial vehicles.
Especially suitable for trailers and semi trailers manufactured for the transport of GGVS hazardous substances.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PUR outer jacket, low adhesion, abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
  • These cables conform to the national standard ISO 4141 and the international standard DIN/ISO 6722
  • Component codes TÜ.EGG.074-03
Special feature:
  • Complies with GGVS regulations
  • Approved and tested by the TÜV technical inspectorate
  • PUR jacket provides high resistance to abrasion, UV and wear
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
