European Servo, Feedback & Motor Cable:

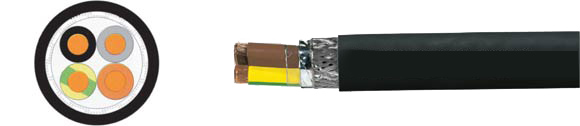

TOPFLEX®-EMV-UV-2YSLCYK-J

For Power Supply Connections to Frequency Converters, Double Shielded, VFD Motor Supply Cable, 0.6/1 kV

Sealcon, Inc, European & Domestic cable

TOPFLEX-EMV-UV-2YSLCYK-J, TOPFLEX EMV UV 2YSLCYK J, TOPFLEX EMVUV2YSLCYKJ, for power supply connections to frequency converters, double shielded, 0.6/1 kV, RoHS Approved, RoHS Compliant, European  , Sealcon
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Dia. mm
Mutual Capacitance Coupling Resistance Power Ratings**)
w/ 3 loaded conductors in Ampere
Copper Weight
kg/km
Weight ca. kg/km AWG
conductor/ conductor
ca. nF/km
conductor/ shield
ca. nF/km
w/ 1 MHz
Ohm/km
w/ 30 MHz
Ohm/km
22234

T.-EMV-UV-2YSLCYK-J (4G1.5)

10.3 70.0 110.0 - - 18.0 95.0 230.0 16
22235 T.-EMV-UV-2YSLCYK-J (4G2.5) 12.3 80.0 130.0 18.0 210.0 26.0 150.0 300.0 14
22236 T.-EMV-UV-2YSLCYK-J (4G4) 13.9 90.0 150.0 11.0 210.0 34.0 235.0 485.0 12
22237 T.-EMV-UV-2YSLCYK-J (4G6) 15.3 90.0 150.0 6.0 150.0 44.0 320.0 630.0 10
22238 T.-EMV-UV-2YSLCYK-J (4G10) 19.5 120.0 200.0 7.0 180.0 61.0 533.0 860.0 8
22239 T.-EMV-UV-2YSLCYK-J (4G16) 23.3 140.0 230.0 9.0 190.0 82.0 789.0 1290.0 6
22240 T.-EMV-UV-2YSLCYK-J (4G25) 27.4 120.0 210.0 4.0 95.0 108.0 1236.0 1860.0 4
22241 T.-EMV-UV-2YSLCYK-J (4G35)

30.3

150.0 260.0 3.0 85.0 135.0 1662.0 2610.0 2
22242 T.-EMV-UV-2YSLCYK-J (4G50) 35.5 190.0 320.0 2.0 40.0 168.0 2345.0 2950.0 1
22243 T.-EMV-UV-2YSLCYK-J (4G70) 40.2 190.0 320.0 2.0 45.0 207.0 3196.0 3950.0 2/0
22244 T.-EMV-UV-2YSLCYK-J (4G95) 44.5 250.0 410.0 1.0 50.0 250.0 4316.0 5300.0 3/0
22245 T.-EMV-UV-2YSLCYK-J (4G120) 50.3 - - - - 292.0 5435.0 6600.0 4/0
22246 T.-EMV-UV-2YSLCYK-J (4G150) 56.1 - - - - 335.0 6394.0 7040.0 300 kcmil
22247 T.-EMV-UV-2YSLCYK-J (4G185) 58.0 - - - - 382.0 7639.0 8380.0 350 kcmil
**) The current carrying capacity for permanent operation at ambient temperature of +30°C/+86°F. For deviating ambient temperatures the conversion factors should be used and for further information see the indication in DIN VDE 0298 part 4.
Technical Data European
  • Special motor power supply cable for frequency converters adapted to DIN VDE 0250
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage U0/U 600/1000 V
  • Max. Operating Voltage
    A.C. and 3-phase 700/1200 V
    DC operation 900/1800 V
  • Test Voltage 2500 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Coupling Resistance
    According to different cross-sections
    Max. 250 Ohm/km
  • Mutual Capacitance
    According to different cross-sections
    Conductor/conductor 70 to 250 nF/km
    Conductor/shielding 110 to 410 nF/km
  • Minimum Bending Radius
    Fixed installation for outer Ø:
    Up to 12 mm: approx. 5x cable Ø
    >12 to 20 mm: approx. 7.5x cable Ø
    >20 mm: approx. 10x cable Ø
    Free-movement for outer Ø:
    Up to 12 mm: approx. 10x cable Ø
    >12 to 20 mm: approx. 15x cable Ø
    >20 mm: approx. 20x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDEPCT
Cable Construction
  • Bare copper, fine wire conductor to DIN VDE 0295 cl. 5, BS 6360 cl. 5 or IEC 60228 cl. 5
  • Polyethylene (PE) conductor insulation
  • Conductor colors: black, brown, gray, green-yellow
  • Conductors stranded in concentric layers
  • 1. shielding with special aluminum film
  • 2. shielding with copper braiding, tinned copper, coverage approx. 80%
  • Special PVC outer jacket: Black (RAL 9005)
Application
This TOPFLEX®-EMV-2YSLCY-J motor power supply cable for frequency converters assures electromagnetic compatibility in plants and buildings, facilities with units and operating equipments where fields of electromagnetic interference might cause adverse effects on the surroundings. As a supply and connecting cable for medium mechanical stresses in Fixed Installations and forced movements in dry, moist and wet environments, however, not for outdoor applications. Used in automotive and food industries, environmental technology, packaging industry, machine tools.
Handling equipment, for SIMOVERT drives, they are particularly suitable for use with industrial pumps, ventilators, conveyor belts and air-conditioning installations and similar applications.
Installation in hazardous areas.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Behavior in fire: Test according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent to DIN VDE 0472 part 804 test method B)
  • Low mutual capacitance, to DIN VDE 0472 part 504, test method B
  • Features PE-insulation secures a lower dielectric loss, double potential strength, high longevity and low shielding-interference currents
  • Low mutual capacitance
  • Meets EMI requirements according to EN 55011 and DIN VDE 0875 part 11
  • Low coupling resistance for high electromagnetic interference
  • UV-resistant
  • Outdoor application
  • This shielded motor supply cable with low mutual capacitance of the single conductors because of the special PE conductor insulation and low shielding capacitance enable a low-loss transmission of the power compared to PVC-outer jacket connecting cables
  • Due to the optimal shielding an interference-free operation of frequency converters is obtained
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • The current carrying capacity for permanent operation at ambient temperature of 30°C. For deviating ambient temperatures the conversion factors should be used and for further see the indication in DIN VDE 0298 part 4
Cable Accessories
  • Coming Soon!
