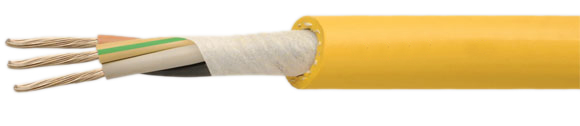

European All-Weather Cable: (N)SHTÖU-V

Trailing Cable

Hi-Tech Controls, Inc, European & Domestic cable

NSHTÖU drum cable, VDE approved, Hi-Tech Controls, European
European
Part-No.
Description & No. of cores x nominal cross section mm² Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
31040 NSHTÖU 3x1.5 13.6 45 191 130
31041 NSHTÖU 3x2.5 14.8 74 240 220
31042 NSHTÖU 3x4 17.6 115 362 360
31043 NSHTÖU 3x6 18.9 173 450 540
31044 NSHTÖU 3x10 22.6 288 682 900
31045 NSHTÖU 3x16 24.9 461 890 1440
31046 NSHTÖU 3x25 30.8 720 1200 2250
31047 NSHTÖU 3x50 + 3x25/3 40.6 1685 2810 4500
31048 NSHTÖU 3x70 + 3x35/3 44.4 2355 3760 6300
31049 NSHTÖU 3x95 + 3x50/3 50.8 3215 4700 8550
31050 NSHTÖU 3x120 + 3x70/3 55.2 4130 5950 10800
31051 NSHTÖU 3x150 + 3x70/3 60.0 4990 7050 13500
31052 NSHTÖU 3x185 + 3x95/3 65.7 6250 8800 16650
31053 NSHTÖU 3x240 + 3x120/3 74.0 8065 11700 21600
31054 NSHTÖU 4x1.5 14.5 58 220 180
31055 NSHTÖU 4x2.5 17.1 99 330 300
31056 NSHTÖU 4x4 18.8 158 440 480
31057 NSHTÖU 4x6 20.2 241 530 720
31058 NSHTÖU 4x10 24.4 404 835 1200
31059 NSHTÖU 4x16 27.9 642 1175 1920
31060 NSHTÖU 4x25 34.9 1005 1850 3000
31061 NSHTÖU 4x35 37.5 1344 2250 4200
31062 NSHTÖU 4x50 44.2 2010 3210 6000
31063 NSHTÖU 4x70 48.6 2687 4210 8400
31064 NSHTÖU 4x95 55.5 3646 5550 11400
31065 NSHTÖU 4x120 62.0 4605 7010 14400
31066 NSHTÖU 4x150 67.6 5765 8450 18000
31067 NSHTÖU 4x185 73.2 7110 10000 22200
31068 NSHTÖU 5x1.5 15.5 73 258 220
31069 NSHTÖU 5x2.5 18.2 124 389 370
31070 NSHTÖU 5x4 20.2 220 511 600
31071 NSHTÖU 5x6 22.7 317 688 900
Technical Data European
  • Special trailing cable according to DIN VDE 0250, Part 814
  • Temperature range
    Flexing -25°C to +80°C
  • Max. temperature at the conductor
    during operation +90°C
    on short-circuit +250°C
  • Nominal voltage
    U0/U 0.6/1kV
  • Maximum permitted operating voltages in three-phase and one-phase alternating current installations U0/U 0.7/1.2kV
    Direct current installations U0/U 0.9/1.8kV
  • Test voltages 4kV Insulation resistance min. 10 MOhm x km
  • Minimum bending radius
    7.5x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Tinned copper conductor, fine wire stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 or IEC 60228 cl. 5
  • Insulating sleeve from special rubber compound 3GI3 in accordance with DIN VDE 0207 Part 20
  • Core identification in accordance with DIN VDE 0293 Part 308 (HD 308 S2)
  • Cores stranded (without elongated central core) with max. lay-length of 8 x Ø over the stranded layers)
  • Depending on dimension/structure with Kevlar fillers
  • Inner sheath: Special rubber, compound-type 5GM5
  • Torsion protection between inner and outer sheath
  • Outer sheath from special rubber compound, compound type 5GM5 according to DIN VDE 0207 Part 21
  • Sheath color - yellow
Application
For vertical drum operation under extreme mechanical stress and on moving cable carriers. Used as a rugged feeder to construction machines, conveyor, transport and crane systems in dry, damp, wet environments and outdoors.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Fire behaviour: Test in accordance with VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (conforms to DIN VDE 0472 Part 804 Test method B)
  • Oil-resistant Test in accordance with DIN EN 60811-2-1, IEC 60811-2-1
  • Highly resistant to acids, fats, gasoline, solvents and chemicals
  • During installation and operation, the tensile stress must not exceed 30 N/mm²
  • Permitted running speed up 180m/min.
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
