European
All-Weather, Rubber & Welding Cable: BAUFLEX
Universal Cable
Sealcon, Inc, European & Domestic cable
European
Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Cop.
weight
kg/km
Weight
ca. kg/km
AWG
26070
BAUFLEX
2 X 1
7.8
19.0
75.0
17
26071
BAUFLEX 3 G 1
8.3
29.0
90.0
17
26072
BAUFLEX 4 G 1
9.3
39.0
115.0
17
26073
BAUFLEX 5 G 1
10.2
48.0
140.0
17
26074
BAUFLEX 2 X 1.5
8.7
29.0
95.0
16
26075
BAUFLEX 3 G 1.5
9.4
43.0
115.0
16
26076
BAUFLEX 4 G 1.5
10.4
58.0
145.0
16
26077
BAUFLEX 5 G 1.5
11.5
72.0
180.0
16
26078
BAUFLEX 7 G 1.,5
13.7
101.0
240.0
16
26079
BAUFLEX 12 G 1.5
16.7
173.0
375.0
16
26080
BAUFLEX 3 G 2.5
11.1
72.0
170.0
14
26081
BAUFLEX 4 G 2.5
12.3
96.0
215.0
14
26082
BAUFLEX 5 G 2.5
13.4
120.0
260.0
14
26083
BAUFLEX 4 G 4
14.1
154.0
348.0
12
26084
BAUFLEX 5 G 4
16.4
192.0
400.0
12
26085
BAUFLEX 4 G 6
16.7
230.0
380.0
10
26086
BAUFLEX 5 G 6
18.9
288.0
550.0
10
26087
BAUFLEX 10 G 6
28.4
579.0
1115.0
10
26088
BAUFLEX 4 G 10
22.8
384.0
810.0
8
26089
BAUFLEX 5 G 10
25.7
480.0
1000.0
8
26090
BAUFLEX 4 G 16
26.2
614.0
1010.0
6
26091
BAUFLEX 5 G 16
29.1
768.0
1350.0
6
We can also
have your company name printed on these cables.
Technical
Data
European
Special PVC conductor/jacket insulation
EX-area
Cold resistant up to -35°C/-31°F
(K35)
Temperature Range Flexing
-35°C to
+50°C (-31°F to +122°F)
Fixed Installation
-40°C
to +70°C (-40°F to +158°F)
Nominal Voltage U0/U 450/750 V
Test Voltage 2500
V
Breakdown Voltage Min. 5000 V
Insulation Resistance Min. 20 MOhm x km
Minimum Bending Radius Approx. 12x cable Ø
Approvals
Cable

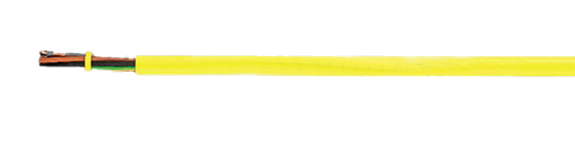

Construction
Plain copper conductors, fine wire
stranded
Special PVC conductor insulation
Conductor coding to DIN VDE 0293-308
Green-yellow earth conductor
Conductors stranded in layers with optimal
lay-length
Special PVC outer jacket, color
yellow
Application
Can be used
in dry or damp conditions both
in and outdoors installation for
medium weight to heavy duty appliances.
Also suitable fro lighting equipment
of agricultural operations, in
hazardous areas, as connection
cable in professional and hobby
performances such as electric hand
sanders, lawn mowers and extension
cords. =
The product
is conformed
with the
EC Low-Voltage
Directive
73/23/EEC
and 93/68/EEC.
Properties
High tear and oil resistance
Good abrasion resistance and flexibility
Good resistance to chemicals
PVC self-extinguishing and flame
retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804 test
method B)
The materials used in manufacture
are cadmium-free, contain no silicone
and are free from substances harmful to
the wetting properties of lacquers
Note
G = with green-yellow earth conductor
x = without green-yellow earth conductor
AWG sizes are approximate equivalent
values. The actual cross-section is
in mm².
Please note: we
can also have this cable printed with
your company name or emblem. Minimum quantity: 300
m.
