European All-Weather Cable: LIFT-TRAGO -30 / LIFT-TRAGO -60

Lift Hoist Control Cable, Length 30 or 60 Meter

Hi-Tech Controls, Inc, European & Domestic cable

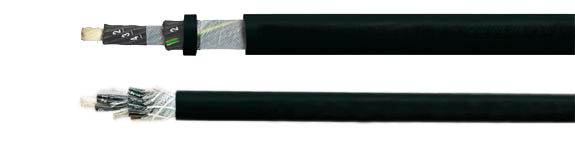

LIFT-TRAGO-30 /-60 lift hoist control cable, length 30 or 60 meter, Hi-Tech Controls, European
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
Support Conductor Pedal Length AWG
25259 LIFT-TRAGO-30, 7G1 11.5 67.0 170.0 Textile 30 17
25260 LIFT-TRAGO-30, 12G1 15.7 115.0 325.0 Textile 30 17
25261 LIFT-TRAGO-30, 18G1 16.1 173.0 390.0 Textile 30 17
25262 LIFT-TRAGO-30, 24G1 19.2 230.0 530.0 Textile 30 17
25263 LIFT-TRAGO-60, 7G1 12.3 67.0 185.0 Textile 60 17
25264 LIFT-TRAGO-60, 12G1 16.2 115.0 335.0 Textile 60 17
25265 LIFT-TRAGO-60, 18G1 16.7 173.0 400.0 Textile 60 17
25266 LIFT-TRAGO-60, 24G1 19.8 230.0 540.0 Textile 60 17
25267 LIFT-TRAGO-60, 30G1 22.5 288.0 690.0 Textile 60 17
25268 LIFT-TRAGO-60, 36G1 28.2 346.0 930.0 Steel 60 17
We can also have your company name printed on these cables. Cables with print
Technical Data European
  • Lift hoist control cables with strain bearing element to IEC 60227-6 edition 2001-06 and adapted to DIN VDE 0281 part 13
  • Temperature Range
    Flexing
    -5°C to +50°C (+23°F to +122°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Max. Conductor Temperature
    Under Load +70°C/+158°F
    Circuit Conditions +150°C/+302°F
  • Nominal Voltage
    U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage
    Min. 6000 V
  • Minimum Bending Radius
    Approx. 20x cable Ø
  • Insulation Resistance
    Min. 20 MOhm x km
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation, TI2 to DIN VDE 0281 part 1
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow earth conductor in the outer layer
  • Conductors stranded with optimal lay-length according to the number of conductors in one or two layers, over a central suspension strand of textile.
    LIFT-TRAGO-30 - Fleece wrapping
    LIFT-TRAGO-60 - Support braiding of textile suspension strands
  • Outer jacket of special PVC, TM2 to DIN VDE 0281 part 1
  • Color: Black (RAL 9005)
Application
These cables are used as control or feeder cables in lifts and hoists.
  • 30m length - LIFT-TRAGO-30
  • 60m length - LIFT-TRAGO-60
Suspension height for medium mechanical stresses in dry and moist rooms.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • The PVC-outer jacket is oil resistant according to DIN VDE 0281 part 1
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow earth conductor
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Cable for length 60 m and above available on request
Cable Accessories
  • Coming Soon!
