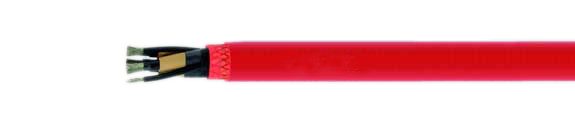

European All-Weather Cable: (N)TSCGEWOU

Extremely torsionally stiff

Hi-Tech Controls, Inc, European & Domestic cable

NSHTÖU drum cable, VDE approved, Hi-Tech Controls, European
3.6 / 6kV
European
Part-No.
No.cores x cross-sec. mm˛ Outer
Diameter
min / max
mm
Cop. weight
kg/km
Weight
appx. kg/km
Permanent
load
38533 (N) TSCGEWOU 3x25 + 3x10 37,0 - 40,0 1008,0 2280,0 1500
38534 (N) TSCGEWOU 3x35 + 3x10 40,0 - 43,0 1292,0 2750,0 2000
38535 (N) TSCGEWOU 3x50 + 3x10 44,0 - 47,0 1728,0 3400,0 3000
38536 (N) TSCGEWOU 3x70 + 3x16 47,0 - 50,0 2477,0 4100.0 4100
38537 (N) TSCGEWOU 3x95 + 3x16 52,0 - 56,0 3197,0 5450,0 5600
38538 (N) TSCGEWOU 3x120 + 3x25 56,0 - 60,0 4176,0 6650,0 7100
6 / 10kV
European
Part-No.
No.cores x cross-sec. mm² Outer
Diameter
min / max
mm
Cop. weight
kg/km
Weight
appx. kg/km
Permanent
load
38539 (N) TSCGEWOU 3x25 + 3x10 39,0 - 42,0 1008,0 2400,0 1500
38540 (N) TSCGEWOU 3x35 + 3x10 42,0 - 45,0 1292,0 2900,0 2000
38541 (N) TSCGEWOU 3x50 + 3x10 45,0 - 48,0 1728,0 3450,0 3000
38542 (N) TSCGEWOU 3x70 + 3x16 50,0 - 54,0 2477,0 4600,0 4100
38543 (N) TSCGEWOU 3x95 + 3x16 54,0 - 58,0 3197,0 5770,0 5600
38544 (N) TSCGEWOU 3x120 + 3x25 58,0 - 62,0 4176,0 6900,0 7100
8.7 / 15kV
European
Part-No.
No.cores x cross-sec. mm² Outer
Diameter
min / max
mm
Cop. weight
kg/km
Weight
appx. kg/km
Permanent
load
38545 (N) TSCGEWOU 3x25 + 3x10 38.1 - 41.0 1008,0 2750,0 1500
38546 (N) TSCGEWOU 3x35 + 3x10 40.8 - 43.8 1292,0 3210,0 2000
38547 (N) TSCGEWOU 3x50 + 3x10 45,0 - 48,0 1728,0 3950,0 3000
39040 (N) TSCGEWOU 3x70 + 3x16 50,0 - 54,0 2477,0 5000,0 4100
39041 (N) TSCGEWOU 3x95 + 3x16 54,0 - 58,0 3197,0 6150,0 5600
39042 (N) TSCGEWOU 3x120 + 3x25 58,0 - 62,0 4176,0 7700,0 7100
12 / 20kV
European
Part-No.
No.cores x cross-sec. mm² Outer
Diameter
min / max
mm
Cop. weight
kg/km
Weight
appx. kg/km
Permanent
load
39043 (N) TSCGEWOU 3x25 + 3x10 38.1 - 41.0 1008,0 3040,0 1500
39044 (N) TSCGEWOU 3x35 + 3x10 40.8 - 43.8 1292,0 3510,0 2000
39045 (N) TSCGEWOU 3x50 + 3x10 45.7 - 48.7 1728,0 4410,0 3000
39046 (N) TSCGEWOU 3x70 + 3x16 47.0 - 51.0 2477,0 5420,0 4100
39047 (N) TSCGEWOU 3x95 + 3x16 42.4 - 45.5 3197,0 6750,0 5600
39048 (N) TSCGEWOU 1 x 120 + 3 x 25 46.6 - 49.6 4176,0 8050,0 7100
Technical Data European
  • Medium voltage power cable according to VDE 0250 part 813
  • Temperature Range
    Flexing
    -20°C to +60°C (-4°F to +140°F)
    Fixed Installation
    20°C to +80°C (-4°F to +176°F)
  • Nominal VoltageU0/U 3,6/6kV, 6/10 kV, 8,7/15kV, 12/20 kV
  • Operating voltages, max
    3,6/6 kV = 4,2/7,2 kV 6/10 kV = 6,9/12 kV 8,7/15 kV = 10,4/18 kV 12/20 kV = 13,9/24 kV
  • Test Voltage3,6/6 kV = 11 kV
    6/10 kV  = 17 kV
    8,7/15 kV = 24 kV
    12/20 kV  = 29 kV
  • Minimum Bending Radius
    15x outer diameter
Approvals
RoHS
Cable Construction
  • Tinned copper conductor, fine wire stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Inner semi-conducting layer
  • HEPR-insulation
  • Outer semi-conducting layer
  • Ground conductor with semi-conductive layer
  • conductors concentrically stranded
  • Inner jacket, jacket color red
  • Antitorsional protection
  • Outer jacket: chloroprene rubber, compound 5GM3
  • Jacket color, red
Application

Reeling medium voltage supply train for use in high mechanical stresses, such as in in container cranes or large mobile equipment as well as excavators in the mining industry for days, in dry, damp, wet areas and outdoors.

Properties
  • maximum permissible speed 200 m/min is allowed when operating drums in one direction
  • extremly torsion resistant
  • high abrasion resistance
Note
  • Further dimensions and special designs on request
Cable Accessories
  • Coming Soon!
