European Installation Cable:
YV-Equipment Wires / YR-Bell Jacket Cables

According to VDE 0812

Hi-Tech Controls, Inc, European & Domestic cable

YV-Equipment Wires / YR-Bell Jacket Cables, Installation Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European

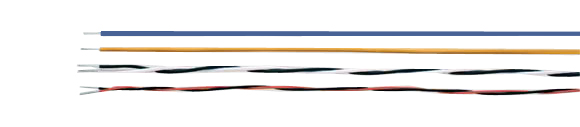

YV-Equipment Wires
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
28900  YV-Equipment Wires 1x0.3 / 0.7 0.7 0.7 1.2 -
28901  YV-Equipment Wires 2x0.3 / 0.7 1.4 1.4 2.4 -
28902  YV-Equipment Wires 3x0.3 / 0.7 1.6 2.1 3.6 -
28903  YV-Equipment Wires 1x0.4 / 0.8 0.8 1.3 1.8 -
28904  YV-Equipment Wires 2x0.4 / 0.8 1.6 2.5 3.6 -
28905  YV-Equipment Wires 3x0.4 / 0.8 1.8 3.8 5.4 -
28906  YV-Equipment Wires 1x0.5 / 0.9 0.9 2.0 2.5 -
28907  YV-Equipment Wires 2x0.5 / 0.9 1.8 3.9 5.0 -
28908  YV-Equipment Wires 3x0.5 / 0.9 2.0 5.9 7.5 -
28909  YV-Equipment Wires 4x0.5 / 0.9 2.2 7.9 10.0 -
28910  YV-Equipment Wires 1x0.8 / 1.4 1.4 5.0 6.0 -
28911  YV-Equipment Wires 2x0.8 / 1.4 2.8 10.0 12.0 -
28912  YV-Equipment Wires 3x0.8 / 1.4 3.0 15.0 18.0 -
28913  YV-Equipment Wires 4x0.8 / 1.4 3.4 20.0 24.0 -
28914  YV-Equipment Wires 1x1 / 1.8 1.8 7.9 10.0 -
28915  YV-Equipment Wires 2x1 / 1.8 3.6 16.0 20.0 -
28916  YV-Equipment Wires 3x1 / 1.8 4.0 24.0 30.0 -
28917  YV-Equipment Wires 1x1.4 / 2.2 2.2 15.0 17.0 -
28918  YV-Equipment Wires 1x1.8 / 2.8 2.8 25.0 27.5 -
YR-Bell Jacket Cables
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
28919  YR-Bell Jacket Cables 2x0.8 / 1.4 4.0 9.6 27.0 -
28920  YR-Bell Jacket Cables 3x0.8 / 1.4 4.4 14.4 33.0 -
28921  YR-Bell Jacket Cables 4x0.8 / 1.4 4.9 19.2 41.0 -
28922  YR-Bell Jacket Cables 5x0.8 / 1.4 5.3 24.0 48.0 -
28923  YR-Bell Jacket Cables 6x0.8 / 1.4 5.8 28.8 56.0 -
28924  YR-Bell Jacket Cables 8x0.8 / 1.4 6.5 38.0 70.0 -
28925  YR-Bell Jacket Cables 10x0.8 / 1.4 7.6 48.0 84.0 -
28926  YR-Bell Jacket Cables 12x0.8 / 1.4 7.7 58.0 98.0 -
28927  YR-Bell Jacket Cables 16x0.8 / 1.4 8.6 77.0 124.0 -
28928  YR-Bell Jacket Cables 24x0.8 / 1.4 10.5 115.0 188.0 -
Technical Data European
YV-Equipment Wires
  • Equipment wires with PVC conductor insulation to DIN VDE 0812
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -30°C to +70°C (-22°F to +158°F)
  • Electrical characteristics - see Properties
YR-Bell Outer Jacket Cables
  • Adapted to DIN VDE 0812
  • Minimum bending radius
    15x cable Ø
Approvals
RoHSCE VDE
Cable Construction
YV-Equipment Wires
  • Solid, tinned copper conductor
    0.3 to 1.8 mm Ø
  • PVC conductor insulation, YI3 to DIN VDE 0207 part 4
  • Mono or twin color wires, twin color wires have a base color with the second color superimposed in ring form
  • Color code to DIN 47002
YR-Bell Outer Jacket Cables
  • Bare copper conductor, solid 0.8 mm
  • Conductors stranded in layer
  • Color identification code see Technical Information
  • PVC outer jacket: White
Application
YV-Equipment Wires
Single conductor cables for use in small apparatus, switching and intercom system and for data transmission. These cables are not allowed for the installation of heavy current operation. Equipment wire are used for wiring to the switchboards, amplifiers and dial intercommunicating systems, measuring instruments, telephone exchange, clock centrals, and data processing apparatus etc.
YR-Bell Outer Jacket Cables
For different applications up to max. 100 V operating voltage, for fixed installation above and beneath plaster.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
YV-Equipment Wires
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Installation notes
    The equipment wires are to be so uncoiled from drums or coils so that no kinks or twisting torsion stress can be occurred
    Those are allowed to install as self-supporting shaped wires independently ensuring the free-movements so as to gain a compensating bending
    These are used without any mechanical stress, pull, pressure, abrasion and notch
    Several equipment wires are used together in form of a bunch
    The insulating coverings are not be cut through the binding materials
    The binding materials must be nonconductive and not allowed to swell or shrink in humidity
    During the soldering process without jointing clamp, the soldering period is to be shortened so that the insulating covering should not be shrunk or injured

Electrical characteristics:

Conductor Ø Conductor Resistance at 20°C/68°F Nominal Voltage (V) Test Voltage a.c., 50Hz (V)
Single Conductor (Ohm/km) Multi Conductor (Ohm/km)
0.3 / 0.7 263 274 350 800
0.4 / 0.8 144 148 500 1200
0.5 / 0.9 92.2 95 500 1200
0.8 / 1.4 36 36.7 900 2500
1.0 / 1.8 22.8 23.3 900 2500
1.4 / 2.2 11.6 11.9 900 2500
1.8 / 2.8 7.1 7.2 1500 3000

Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
