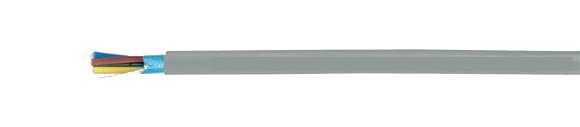

European Installation Cable: (N)YM(St)-J PVC-Jacket Cable

Shielded, PVC Jacket Cable

Hi-Tech Controls, Inc, European & Domestic cable

(N)YM(St)-J PVC-Jacket Cable Shielded, Installation Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Drain Wire Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
43050 (N)YM(ST)-J 3G1.5 1.5 10.5 51.0 154.0 16
43051 (N)YM(ST)-J 4G1.5 1.5 11.5 63.0 184.0 16
43052 (N)YM(ST)-J 5G1.5 1.5 12.0 80.0 208.0 16
43053 (N)YM(ST)-J 7G1.5 1.5 13.0 106.0 250.0 16
43054 (N)YM(ST)-J 3G2.5 1.5 12.0 80.0 217.0 14
43055 (N)YM(ST)-J 4G2.5 1.5 13.0 104.0 256.0 14
43056 (N)YM(ST)-J 5G2.5 1.5 13.5 128.0 280.0 14
43057 (N)YM(ST)-J 3G4 1.5 13.5 123.0 228.0 12
43058 (N)YM(ST)-J 4G4 1.5 14.5 159.0 359.0 12
43059 (N)YM(ST)-J 5G4 1.5 16.5 200.0 440.0 12
43060 (N)YM(ST)-J 3G6 1.5 15.0 187.0 378.0 10
43061 (N)YM(ST)-J 4G6 1.5 16.5 235.0 477.0 10
43062 (N)YM(ST)-J 5G6 1.5 17.5 293.0 565.0 10
43063 (N)YM(ST)-J 5G10 1.5 21.5 485.0 840.0 8
43064 (N)YM(ST)-J 5G16 RM 2.5 26.0 773.0 1353.0 6
43065 (N)YM(ST)-J 5G25 RM 2.5 31.5 1205.0 2017.0 4
Technical Data European
  • Shielded PVC-outer jacket cable
  • Adapted to DIN VDE 0250 part 204/209
  • VDE production available
  • Direct Current Resistance
    To DIN VDE 0295
  • Temperature Range
    Flexing
    +5°C to +70°C (+41°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Permissible Working Temperature
    at the conductor +70°C/+158°F
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 2000 V
  • Power Rating According
    To VDE 0100
  • Minimum Bending Radius
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Solid plain copper conductor to DIN VDE 0295 cl. 1, BS 6360 cl. 1 and IEC 60228 cl. 1
  • Special PVC conductor insulation TI1, to DIN VDE 0281 part 1 colour code to DIN VDE 0293-308
  • Conductors stranded in layer
  • Plastic filled inner jacket
  • Coated aluminum foil shielding
  • Solid copper drain-wire, tinned
  • Special PVC outer jacket TM1, to DIN VDE 0281 part 1
  • Jacket color: Gray (RAL 7001)
Application
These installation cables are made for an effective range of electromagnetic interference alternating fields by a static shield. This shielding is used for the installation in the computer sector, hospitals or industry measuring observation points with measuring instruments which are sensitive to interferences.
These cables are also ideal for installation in in living rooms of those people who are extremely sensitive to radiation. The cable is suitable for laying in, on and under plaster in dry and damp places as well as in concrete and masonry (installation in vibrating or stamped concrete excluded).
Outdoor installation is only possible if the cable is not exposed to direct sunlight or if it is installed in cable conduits. Use in dangerous areas is not allowed.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
  • RE = round solid conductor
    RM = stranded conductor
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
