NYM-J / NYM-O PVC-Jacket Cable VDE approved, Installation Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European

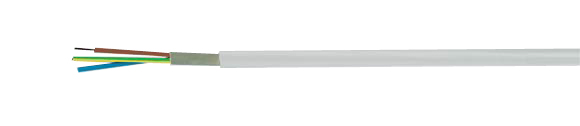

European Installation Cable: NYM-J / NYM-O PVC-Jacket Cable

VDE Approved

Hi-Tech Controls, Inc, European & Domestic cable

AWG Selection
16
16
14
14
12
12
10
10
8
8
6
6
4
4
2
2
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
39050 NYM-J 1G1.5 RE 5.4 14.4 40.0 16
39001 NYM-O 1X1.5 RE 5.4 14.4 40.0 16
39006 NYM-O 2X1.5 RE 8.7 29.0 170.0 16
39056 NYM-J 3G1.5 RE 9.1 43.0 135.0 16
39007 NYM-O 3X1.5 RE 9.1 43.0 135.0 16
39058 NYM-J 4G1.5 RE 9.8 58.0 160.0 16
39009 NYM-O 4X1.5 RE 9.8 58.0 160.0 16
39066 NYM-J 5G1.5 RE 10.3 72.0 190.0 16
39017 NYM-O 5X1.5 RE 10.3 72.0 190.0 16
39072 NYM-J 7G1.5 RE 11.5 101.0 235.0 16
39023 NYM-O 7X1.5 RE 11.5 101.0 235.0 16
39076 NYM-J 10G1.5 RE 13.8 144.0 330.0 16
39077 NYM-J 12G1.5 RE 14.4 173.0 405.0 16
39055 NYM-J 1G2.5 RE 6.0 24.0 70.0 14
39024 NYM-O 1X2.5 RE 6.0 24.0 70.0 14
39057 NYM-J 3G2.5 RE 10.4 72.0 190.0 14
39008 NYM-O 3X2.5 RE 10.4 72.0 190.0 14
39059 NYM-J 4G2.5 RE 11.3 96.0 230.0 14
39010 NYM-O 4X2.5 RE 11.3 96.0 230.0 14
39067 NYM-J 5G2.5 RE 12.0 120.0 270.0 14
39018 NYM-O 5X2.5 RE 12.0 120.0 270.0 14
39075 NYM-J 7G2.5 RE 13.2 168.0 342.0 14
39051 NYM-J 1G4 RE 6.6 38.0 80.0 12
39002 NYM-O 1X4 RE 6.6 38.0 80.0 12
39074 NYM-J 3G4 RE 12.0 115.0 258.0 12
39060 NYM-J 4G4 RE 13.0 154.0 330.0 12
39011 NYM-O 4X4 RE 13.0 154.0 330.0 12
39068 NYM-J 5G4 RE 14.5 192.0 410.0 12
39019 NYM-O 5X4 RE 14.5 192.0 410.0 12
39052 NYM-J 1G6 RE 7.2 58.0 105.0 10
39003 NYM-O 1X6 RE 7.2 58.0 105.0 10
39078 NYM-J 3G6 RE 13.0 173.0 320.0 10
39061 NYM-J 4G6 RE 15.1 230.0 460.0 10
39012 NYM-O 4X6 RE 15.1 230.0 460.0 10
39069 NYM-J 5G6 RE 16.1 288.0 540.0 10
39020 NYM-O 5X6 RE 16.1 288.0 540.0 10
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
39053 NYM-J 1G10 RE 8.4 96.0 155.0 8
39004 NYM-O 1X10 RE 8.4 96.0 155.0 8
39062 NYM-J 4G10 RE 17.6 384.0 680.0 8
39013 NYM-O 4X10 RE 17.6 384.0 680.0 8
39070 NYM-J 5G10 RE 19.2 480.0 850.0 8
39021 NYM-O 5X10 RE 19.2 480.0 850.0 8
39054 NYM-J 1G16 RM 9.9 154.0 230.0 6
39005 NYM-O 1X16 RM 9.9 154.0 230.0 6
39063 NYM-J 4G16 RM 21.3 614.0 1048.0 6
39014 NYM-O 4X16 RM 21.3 614.0 1048.0 6
39071 NYM-J 5G16 RM 23.4 768.0 1280.0 6
39022 NYM-O 5X16 RM 23.4 768.0 1280.0 6
39079 NYM-J 1G25 RM 12.0 240.0 325.0 4
39064 NYM-J 4G25 RM 25.8 960.0 1649.0 4
39015 NYM-O 4X25 RM 25.8 960.0 1649.0 4
39073 NYM-J 5G25 RM 28.7 1200.0 1970.0 4
39065 NYM-J 4G35 RM 28.5 1344.0 2000.0 2
39016 NYM-O 4X35 RM 28.5 1344.0 2000.0 2
Technical Data European
  • PVC-outer jacket cable to DIN VDE 0250 part 204
  • Temperature Range
    Flexing
    +5°C to +70°C (+41°F to +158°F)
    Fixed Installation
    -40°C to +70°C (-40°F to +158°F)
  • Nominal Voltage
    U0/U 300/500 V
  • Test Voltage 2000 V
  • Minimum Bending Radius
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Caloric Load Values
    See Technical Information
Approvals
RoHSCE 	PCT VDE
Cable Construction
  • Solid or stranded, plain copper conductor to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2 and IEC 60228 cl. 1 or cl. 2
  • PVC conductor insulation, TI1 to DIN VDE 0281 part 1
  • Color coded to DIN VDE 0293-308
  • Conductors stranded in layer
  • Special PVC outer jacket TM1, to DIN VDE 0281 part 1
  • Jacket color: Gray (RAL 7035)
Application
For industrial and wiring purposes.
Useable in the open, in dry, damp and wet environments in the open and concealed, as well as in masonry and in cement, not suitable for imbedding in solidified or compressed concrete. Outdoor use is only possible as long as the cable is protected against direct sunlight.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
  • RE = round conductor, single-wire
    RM = round conductor, multiple-wire
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
