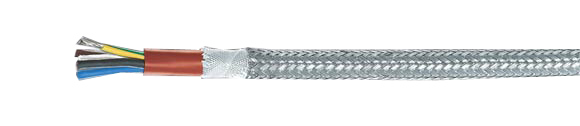

European Heat-Resistant Cable: SiHF/GL-P

Silicone Multi Conductor Cable, Steel Braiding, Halogen-Free

Sealcon, Inc, European & Domestic cable

SiHF/GL-P, silicone multi conductor cable, steel braiding, halogen-free, RoHS Compliant, RoHS Approved, Sealcon, European  , Heat Resistant / Compensating Cables
AWG Selection
18
18
17
17
16
16 14 14
12
12
10 10 8 8 6 6 4 4

European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
23062 SiHF/GL-P 2X0.75   7.9 14.4 90.0 18
23063 SiHF/GL-P 3G0.75 8.3 21.6 101.0 18
23064 SiHF/GL-P 4G0.75 9.3 29.0 129.0 18
23065 SiHF/GL-P 5G0.75 10.0 36.0 157.0 18
23067 SiHF/GL-P 7G0.75 10.7 50.0 177.0 18
23068 SiHF/GL-P 2X1   8.0 19.0 97.0 17
23069 SiHF/GL-P 3G1 8.9 29.0 122.0 17
23070 SiHF/GL-P 4G1 9.4 38.0 141.0 17
23071 SiHF/GL-P 5G1 10.4 48.0 166.0 17
23073 SiHF/GL-P 7G1 11.1 67.0 197.0 17
23074 SiHF/GL-P 2X1.5   9.0 29.0 127.0 16
23075 SiHF/GL-P 3G1.5 9.5 43.0 145.0 16
23076 SiHF/GL-P 4G1.5 10.3 58.0 173.0 16
23077 SiHF/GL-P 5G1.5 11.0 72.0 202.0 16
23078 SiHF/GL-P 6G1.5 12.0 86.0 240.0 16
23079 SiHF/GL-P 7G1.5 12.0 101.0 244.0 16
23080 SiHF/GL-P 8G1.5 13.0 115.0 261.0 16
23081 SiHF/GL-P 12G1.5 15.5 173.0 327.0 16
23082 SiHF/GL-P14G1.5 16.2 202.0 382.0 16
23083 SiHF/GL-P 18G1.5 18.7 259.0 440.0 16
23084 SiHF/GL-P 24G1.5 21.5 346.0 600.0 16
23085 SiHF/GL-P 2X2.5   10.7 48.0 187.0 14
23086 SiHF/GL-P 3G2.5 11.2 72.0 205.0 14
23087 SiHF/GL-P 4G2.5 12.1 96.0 278.0 14
23088 SiHF/GL-P 5G2.5 13.3 120.0 322.0 14
23089 SiHF/GL-P 6G2.5 14.3 144.0 351.0 14
23090 SiHF/GL-P 7G2.5 14.4 168.0 380.0 14
23091 SiHF/GL-P 2X4   12.5 77.0 240.0 12
23092 SiHF/GL-P 3G4 13.0 115.0 311.0 12
23093 SiHF/GL-P 4G4 15.0 154.0 384.0 12
23094 SiHF/GL-P 5G4 16.0 192.0 454.0 12
23095 SiHF/GL-P 7G4 17.5 269.0 633.0 12
23096 SiHF/GL-P 2X6   15.1 115.0 321.0 10
23097 SiHF/GL-P 3G6 15.9 173.0 432.0 10
23098 SiHF/GL-P 4G6 18.0 230.0 544.0 10
23099 SiHF/GL-P 5G6 19.4 288.0 656.0 10
23100 SiHF/GL-P 7G6 20.7 403.0 768.0 10
23101 SiHF/GL-P 4G10   22.1 384.0 925.0 8
23102 SiHF/GL-P 4G16  26.1 614.0 1235.0 6
23103 SiHF/GL-P 5G25   30.4 960.0 1700.0 4
Technical Data European
  • Special silicone multi conductor cable with higher heat-resistance range adapted to DIN VDE 0250 part 1 and part 816
  • Temperature Range
    -60°C to +180°C (-72°F to +356°F)
    (Up to +220°C/+428°F for short time)
  • Temperature Limit at the Conductor
    In operation +180°C/+356°F
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 2000 V
  • Breakdown Voltage min. 5000 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Power Rating
    At ambient temperature up to +145°C/+293°F to DIN VDE 0100 for higher temperatures valid:
    150°C/302°F - load value 100%
    155°C/311°F - load value 91%
    160°C/320°F - load value 82%
    165°C/329°F - load value 71%
    170°C/338°F - load value 58%
    175°C-347°F - load value 41%
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 20x106 cJ/kg (up to 20 Mrad)
Approvals
RoHSCEpct VDE
Cable Construction
  • Tinned copper conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Silicone conductor insulation
  • Conductor identification to DIN VDE 0293-308 color coded or black conductors with continuous white numbers
  • Conductor Colors
  • -up to 5 conductors: one color
    -up to 6 or more conductors: black with white numbering
    -3 or more: green-yellow earth conductor
    -2 conductors: No green-yellow earth conductor
  • Conductors stranded in layers with optimal lay-length
  • Green-yellow earth-conductor (3 conductors and above)
  • Outer jacket of silicone
  • Jacket color preferably red brown
  • Glass fiber tape over the jacket
  • Galvanized steel wire outer braiding
Application
Silicone cables were designed for use wherever insulation is subjected to extreme temperature changes. They are heat resistant for permanent temperatures up to +180°C/+356°F, and short time for operation to +220°C/+428°F. These cables have great environmental resistance properties and can be used at temperatures as low as -60°C/-76°F. Silicone cables are halogen-free and are especially suitable for installation in power stations. They have also found their uses in steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories.
The shielded steel braiding ensures a disturbance-free transmission of signals and impulses.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Advantages: Minimal changes of dielectric strength and the insulation resistance also at high temperatures, high ignition or flash point, in case of fire, forms an insulating layer of SiO2
  • Resistant to high molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen
  • Halogen-free according to DIN VDE 0482 part 267 / EN 50267-2-2/ IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Behavior in fire: no flame propagation test according to DIN VDE 0482 part 265-2-1, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding +90°C/+194°F
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OB)
