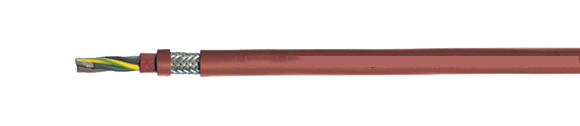

European Heat-Resistant Cable: SiHF-C-Si

Silicone Multi Conductor Cable, Halogen-Free, Copper Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

SiHF-C-Si silicone multi conductor cable, halogen-free, Cu shielded, EMI preferred type, RoHS Compliant, RoHS Approved, Hi-Tech Controls, European  , Heat Resistant / Compensating Cables
AWG Selection
20
20
18
18
17
17
16
16 14 14
12
12 10 10 8 8 6 6 4 4

European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
23151 SiHF-C-Si 2X0.5   8.0 55.5 101.0 20
23152 SiHF-C-Si 3G0.5 8.3 60.8 118.0 20
23153 SIHF-C-SI 4G0.5 9.1 66.5 131.0 20
23154 SiHF-C-Si 5G0.5 9.9 81.6 153.0 20
23155 SiHF-C-Si 7G0.5 10.9 92.2 173.0 20
23156 SiHF-C-Si 10G0.5 12.8 124.0 242.0 20
23157 SiHF-C-Si 12G0.5 13.5 134.4 263.0 20
23158 SiHF-C-Si 16G0.5 15.1 170.2 326.0 20
23159 SiHF-C-Si 18G0.5 15.9 181.0 351.0 20
23291 SiHF-C-Si 25G0.5 18.5 230.1 348.0 20
23160 SiHF-C-Si 2X0.75   9.0 61.4 124.0 18
23161 SiHF-C-Si 3G0.75 9.4 69.1 136.0 18
23162 SiHF-C-Si 4G0.75 10.4 86.7 159.0 18
23163 SiHF-C-Si 5G0.75 11.3 95.2 180.0 18
23164 SiHF-C-Si 7G0.75 12.0 113.3 212.0 18
23165 SiHF-C-Si 10G0.75 13.9 165.2 306.0 18
23166 SiHF-C-Si 12G0.75 15.2 180.3 333.0 18
23167 SiHF-C-Si 16G0.75 16.9 212.2 418.0 18
23168 SiHF-C-Si 18G0.75 18.0 282.1 453.0 18
23292 SiHF-C-Si 25G0.75 20.8 297.4 468.0 18
23169 SiHF-C-Si 2X1   9.4 66.7 132.0 17
23170 SiHF-C-Si 3G1 9.8 86.2 153.0 17
23171 SiHF-C-Si 4G1 11.1 96.8 173.0 17
23172 SiHF-C-Si 5G1 12.0 108.3 202.0 17
23173 SiHF-C-Si 7G1 12.7 141.2 243.0 17
23174 SiHF-C-Si 10G1 14.7 190.0 238.0 17
23175 SiHF-C-Si 12G1 15.8 209.8 371.0 17
23176 SiHF-C-Si 16G1 17.0 251.8 468.0 17
23177 SiHF-C-Si 18G1 17.4 297.4 526.0 17
23293 SiHF-C-Si 25G1 21.8 329.0 559.0 17
23178 SiHF-C-Si 2X1.5   10.8 87.7 172.0 16
23179 SiHF-C-Si 3G1.5 11.2 103.5 198.0 16
23180 SiHF-C-Si 4G1.5 12.0 131.7 235.0 16
23181 SiHF-C-Si 5G1.5 12.8 148.5 281.0 16
23182 SiHF-C-Si 7G1.5 14.3 193.4 345.0 16
23183 SiHF-C-Si 10G1.5 14.7 268.5 482.0 16
23184 SiHF-C-Si 12G1.5 15.8 298.4 531.0 16
23185 SiHF-C-Si 16G1.5 17.4 362.3 662.0 16
23186 SiHF-C-Si 18G1.5 20.6 394.0 720.0 16
23294 SiHF-C-Si 25G1.5 24.2 488.2 791.0 16
23187 SiHF-C-Si 2X2.5   12.0 122.3 230.0 14
23188 SiHF-C-Si 3G2.5 12.9 147.7 275.0 14
23189 SiHF-C-Si 4G2.5 13.8 188.6 340.0 14
23190 SiHF-C-Si 5G2.5 14.8 214.9 394.0 14
23191 SiHF-C-Si 7G2.5 15.8 265.7 488.0 14
23192 SiHF-C-Si 4G4   16.0 294.0 520.0 12
23193 SiHF-C-Si 5G4 17.4 374.0 653.0 12
23150 SiHF-C-Si 2x6 15.8 171.0 350.0 20
23194 SiHF-C-Si 4G6   18.1 449.0 781.0 10
23195 SiHF-C-S i 5G6 20.0 563.0 982.0 10
23196 SiHF-C-Si 4G10   23.2 759.0 1294.0 8
23197 SiHF-C-Si 4G16   25.2 1180.0 1988.0 6
23198 SiHF-C-Si 4G25   31.0 1810.0 2995.0 4

Technical Data European
  • Special silicone-insulated cable with higher heat-resistance adapted to DIN VDE 0250 part 1 and part 816
  • Temperature Range
    -60°C to +180°C (-72°F to +356°F)
    (Up to +220°C/+428°F for short time)
  • Temperature Limit at the Conductor
    In operation +180°C/+356°F
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 2000 V
  • Breakdown Voltage min. 5000 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Power Rating
    At ambient temperatures up to +145°C/+293°F according to DIN VDE 0100
    150°C/302°F - load value 100%
    155°C/311°F - load value 91%
    160°C/320°F - load value 82%
    165°C/329°F - load value 71%
    170°C/338°F - load value 58%
    175°C-347°F - load value 41%
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cableØ
  • Coupling Resistance
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 20x106 cJ/kg (up to 20 Mrad)
Approvals
RoHSCE VDE pct
Cable Construction
  • Tinned copper conductor according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of silicone
  • Core Conductors according to DIN VDE 0293-308
  • Conductor Colors
  • -up to 5 conductors: one color
    -up to 6 or more conductors: black with white numbering
    -3 or more: green-yellow earth conductor
    -2 conductors: No green-yellow earth conductor
  • Conductors stranded in layers with optimal lay-length
  • Inner jacket of silicone
  • Braid of tinned copper wires, coverage approx. 85%
  • Silicone-rubber-insulated common outer jacket
  • Jacket preferably red brown color
Application
Silicone cables were designed for use wherever insulation is subjected to extreme temperature changes. They are heat resistant for permanent temperatures up to +180°C/+356°F, and short time for operation to +220°C/+428°F. These cables have great environmental resistance properties and can be used at temperatures as low as -60°C/-76°F. Silicone cables are halogen-free and are especially suitable for installation in power stations. They have also found their uses in steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories.
An interference-free transmission of signals and impulse is assured by the high density of shielding.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage 2006/95/EG.
Properties
  • Resistant to high molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen and UV
  • Halogen-free according to DIN VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Burning behavior no propagation of fire testing according to DIN VDE 0482332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding +90°C/+194°F.
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OB)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Unscreened analogue type: SiHF see page E7
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
