Compensating Cables

Materials

Hi-Tech Controls, Inc, European & Domestic cable

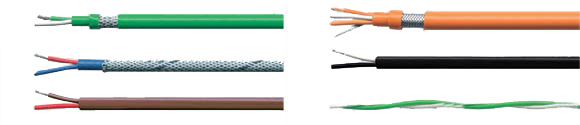

Heat Resistant / Compensating Cables, Hi-Tech Controls,

Technical Information Technical Information Multi-Paired: 5 Pairs Multi-Paired: 5 Pairs Multi-Paired: 18 Pairs Multi-Paired: 18 Pairs
Color ID and Temp. Ranges Color ID and Temp. Ranges Multi-Paired: 6 Pairs Multi-Paired: 6 Pairs Multi-Paired: 19 Pairs Multi-Paired: 19 Pairs
Materials Materials Multi-Paired: 7 Pairs Multi-Paired: 7 Pairs Multi-Paired: 20 Pairs Multi-Paired: 20 Pairs
Single Pair: 2x1.5 mm2 (Page 1) Single Pair: 2x1.5 mm2 (Page 1) Multi-Paired: 8 Pairs Multi-Paired: 8 Pairs Single Pair: 2x0.22 mm2 Single Pair: 2x0.22 mm2
Single Pair: 2x1.5 mm2 (Page 2) Single Pair: 2x1.5 mm2 (Page 2) Multi-Paired: 9 Pairs Multi-Paired: 9 Pairs Single Pair: 2x0.5 mm2 Single Pair: 2x0.5 mm2
Multi-Paired: 2 Pairs Multi-Paired: 2 Pairs Multi-Paired: 10 Pairs Multi-Paired: 10 Pairs Single Pair: 2x0.75 mm2 Single Pair: 2x0.75 mm2
Multi-Paired: 3 Pairs Multi-Paired: 3 Pairs Multi-Paired: 12 Pairs Multi-Paired: 12 Pairs Multi-Paired: 4x0.22 mm2 Multi-Paired: 4x0.22 mm2
Multi-Paired: 4 Pairs Multi-Paired: 4 Pairs Multi-Paired: 16 Pairs Multi-Paired: 16 Pairs Multi-Paired: 4x1.5 mm2 Multi-Paired: 4x1.5 mm2


Materials For Compensating Cables

Standards Art of Thermocouple Elements Materials of Compensating Cables
Type Plus-Pol
(+)
Minus-Pol
(-)
Code Plus-Pol
(+)
Minus-Pol
(-)
DIN 43710

U

Cu CuNi UX Cu CuNi
L Fe CuNi LX Fe CuNi
DIN IEC 584 T Cu CuNi TX Cu CuNi
E NiCr CuNi EX NiCr CuNi
J Fe CuNi JX Fe CuNi
K NiCr Ni KX NiCr Ni
K NiCr Ni KC1 Fe CuNi
K NiCr Ni KC2 Cu CuNi
R/S Pt 13/10 Rh Pt RC A/SC A Cu CuNi
R/S Pt 13/10 Rh Pt RC B/SC B Cu CuNi
nf T Cu CuNi TX Cu CuNi
E NiCr CuNi EX NiCr CuNi
J Fe CuNi JX Fe CuNi
K NiCr Ni KX NiCr Ni
K NiCr Ni VC Cu CuNi
K NiCr Ni WC Fe CuNi
R/S Pt 13/10 Rh Pt RC/SC Cu CuNi
B Pt 30 Rh Pt 6 Rh BC Cu-Leg Cu
ANSI T Cu CuNi TX Cu CuNi
E NiCr CuNi EX NiCr CuNi
J Fe CuNi JX Fe CuNi
K NiCr Ni KX NiCr Ni
R/S Pt 13/10 Rh Pt RX/SX Cu CuNi
B Pt 30 Rh Pt 6 Rh BX Cu Cu
to top up arrow

Characteristics of the Conductors for Thermo-Pairs and Compensating Cables

Materials Main Components, approx. % Density at 20°C Specific Resistance at 20°C Resistance value (Nominal Value) Ohm/m
Cu Ni Mn Others g/cm3 µOhm·cm mm Ø 0.20 mm Ø 1.38
CuNi 55 44 1 - 8.85 49 15.60 0.328
SoNi 51 45 2 Fe2 8.85 51 16.26 0.341
NiCr - Rest - Cr 10 8.7 72 22.90 0.481
Ni - 95 MnAISi 5 8.55 27 8.59 0.180
SoPt 95 3 2 - 8.9 12 3.82 0.0802
ECu According to DIN 46 431 8.9 1.7 0.54 0.011
Fe - - - - 7.85 12 3.82 0.08
BPX 97 - 3 - 8.9 12.5 3.98 0.084
