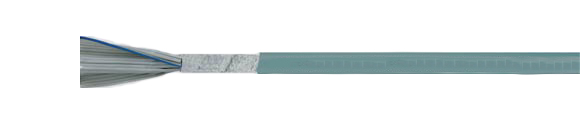

Flat & Ribbon Cable: TUBEFLEX-Y

Round-Shaped Flat Ribbon Cable for IDC-Technique, Pitch 1.27 mm

Hi-Tech Controls, Inc, European & Domestic cable

TUBEFLEX-Y Round shaped flat ribbon cable for IDC-technique, pitch 1.27 mm, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2 Flat Ribbon Width in mm Outer jacket nominal wall thickness in mm Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
45130 TUBEFLEX-Y 9x28 11.43 0.8 6.1 8.7 35.0
45131 TUBEFLEX-Y 10x28 12.7 0.8 6.2 9.7 36.0
45132 TUBEFLEX-Y 14x28 17.78 0.8 7.2 13.6 48.0
45133 TUBEFLEX-Y 16x28 20.3 0.8 7.2 15.5 51.0
45134 TUBEFLEX-Y 20x28 25.4 0.8 7.3 19.4 57.0
45135 TUBEFLEX-Y 24x28 30.48 0.8 8.6 23.2 66.0
45136 TUBEFLEX-Y 25x28 31.75 0.8 8.6 24.2 69.0
45137 TUBEFLEX-Y 26x28 33.02 0.8 8.6 25.2 70.0
45138 TUBEFLEX-Y 30x28 38.1 0.8 9.0 29.0 81.0
45139 TUBEFLEX-Y 34x28 43.2 0.8 10.0 32.9 87.0
45140 TUBEFLEX-Y 36x28 45.72 0.8 10.2 34.9 91.0
45141 TUBEFLEX-Y 37x28 47.0 1.0 10.3 35.8 93.0
45142 TUBEFLEX-Y 40x28 50.8 1.0 10.8 38.7 101.0
45143 TUBEFLEX-Y 50x28 63.5 1.0 11.1 48.4 118.0
45144 TUBEFLEX-Y 60x28 76.2 1.0 12.5 58.1 135.0
45145 TUBEFLEX-Y 64x28 81.3 1.0 13.0 62.0 147.0
Technical Data
  • Round shaped special Flat Ribbon Cable, shielded
  • Conductor Resistance at +20°C/+68°F
    Max. 230 Ohm/km
  • Temperature Range
    -20°C up to +80°C (-4°F up to +176°F)
  • Voltage Rating max. 300 V
  • Test Voltage
    Conductor/conductor 2000 V
  • Dielectric Strength, Spark-Test
    3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Capacitance (side conductors)
    Ca. 75 pF/m
  • Impedance 115 Ohm
  • Minimum Bending Radius
    15x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE
Cable Construction
  • Stranded tinned copper conductor, size AWG 28
    7x0.127 mm = 0.09 mm²
  • Special PVC conductor insulation, adapted to DIN VDE 0207 part 4
  • Conductors color gray, edge marking on one side
  • Conductors laying parallel and adjacent, alternately spliced or separated and periodically slotted
  • Round shaped flat ribbon cable, folded
  • Taping
  • Special PVC outer jacket, adapted to DIN VDE 0207 part 5
  • Color: Gray
Application
TUBEFLEX-Y Flat Ribbon cable, due to its round shape offers considerable advantages compared to other flat ribbon cables during the installation and assembly. This round shaped cable bids enormous profits by using the quick and economical possibilities under continuance with the efficient connection in IDC-technique. All conductors can be contacted at one working procedure without stripping the insulation. The accurate to size pitch-image of the ribbon cable is obtained due to an adapted back shaping before the plug installation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-1 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Very interesting for cable pre-assemblers!
Note
  • N/A
Cable Accessories
  • Coming Soon!
