Flat and Ribbon Cables | TUBEFLEX-(St)-CY EMI Preferred Type

Part-No.	Description & No. Conductors x cross-sec. mm²	Flat Ribbon Width in mm	Outer jacket nominal wall thickness in mm	Outer Diameter mm	Copper Weight kg/km	Weight ca. kg/km
45150	TUBEFLEX-(ST)-CY 9x28	11.43	0.8	6.3	30.9	56.0
45151	TUBEFLEX-(ST)-CY 10x28	12.7	0.8	6.4	31.9	57.0
45152	TUBEFLEX-(ST)-CY 14x28	17.78	0.8	7.2	35.6	70.0
45153	TUBEFLEX-(ST)-CY 16x28	20.3	0.8	7.4	42.0	75.0
45154	TUBEFLEX-(ST)-CY 20x28	25.4	0.8	7.8	45.8	83.0
45155	TUBEFLEX-(ST)-CY 24x28	30.48	0.8	9.0	54.3	97.0
45156	TUBEFLEX-(ST)-CY 25x28	31.75	0.8	9.0	55.2	100.0
45157	TUBEFLEX-(ST)-CY 26x28	33.02	0.8	9.0	60.0	101.0
45158	TUBEFLEX-(ST)-CY 30x28	38.1	0.8	9.2	60.4	113.0
45159	TUBEFLEX-(ST)-CY 34x28	43.2	0.8	10.2	68.1	122.0
45160	TUBEFLEX-(ST)-CY 36x28	45.72	0.8	10.4	70.1	126.0
45161	TUBEFLEX-(ST)-CY 37x28	47.0	1.0	10.5	71.1	128.0
45162	TUBEFLEX-(ST)-CY 40x28	50.8	1.0	10.6	74.1	135.0
45163	TUBEFLEX-(ST)-CY 50x28	63.5	1.0	11.3	88.3	160.0
45164	TUBEFLEX-(ST)-CY 60x28	76.2	1.0	12.9	98.7	172.0
45165	TUBEFLEX-(ST)-CY 64x28	81.3	1.0	13.3	107.2	192.0

Technical Data

Round shaped special Flat Ribbon Cable, shielded
Conductor Resistance at +20°C/+68°F
Max. 230 Ohm/km
Temperature Range
-20°C up to +80°C (-4°F up to +176°F)
Voltage Rating max. 300 V
Test Voltage
Conductor/conductor 2000 V
Conductor/shield 2000 V
Dielectric Strength, Spark-Test
3000 V

Insulation Resistance
Min. 20 MOhm x km
Capacitance (side conductors)
Ca. 75 pF/m
Impedance 115 Ohm
Minimum Bending Radius
15x cable Ø
Radiation Resistance
Up to 80x10⁶ cJ/kg (up to 80 Mrad)

Approvals

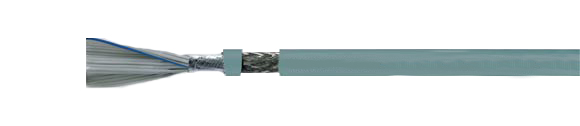

Cable Construction

Stranded tinned copper conductor, size AWG 28
7x0.127 mm = 0.09 mm²
Special PVC conductor insulation, adapted to DIN VDE 0207 part 4
Conductors color gray, edge marking on one side
Conductors laying parallel and adjacent, alternately spliced or separated and periodically slotted
Round shaped flat ribbon cable, folded
Dual shielding:
(St) - plastic coated aluminum foil and
C - tinned copper wire braiding with optimal surface coverage
Special PVC outer jacket, adapted to DIN VDE 0207 part 5
Color: Gray

Application

TUBEFLEX-(St)-CY Flat Ribbon cable, due to its round shape offers considerable advantages compared to other flat ribbon cables during the installation and assembly. This round shaped cable bids enormous profits by using the quick and economical possibilities under continuance with the efficient connection in IDC-technique. All conductors can be contacted at one working procedure without stripping the insulation. The accurate to size pitch-image of the ribbon cable is obtained due to an adapted back shaping before the plug installation.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.

= The product is conformed with the EC Low-Voltage Directive 2005/96/EG.

Properties

PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Very interesting for cable pre-assemblers!
The dual shielding with plastic coated aluminum foil (St) and the additional tinned copper wire braiding (C) protects against high frequency interference and ensures disturbance-free signal and impulse transfer
