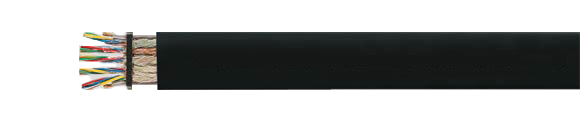

Flat & Ribbon Cable: PVC-flat-CY

Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

PVC-flat-CY shielded, EMI preferred type, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part-No. Description & No. Conductors x cross-sec. mm2 Conductor
Marking
Outer
Dimensions
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
27100 PVC-FLAT-CY 5G0.5 color coded, DIN VDE 0293 21.0 x 3.4 64.0 140.0 20
27101 PVC-FLAT-CY 5X4X0.5 color coded 37.4 x 7.2 175.0 280.0 20
27102 PVC-FLAT-CY 8X7X0.5 Cont. white numbering, DIN VDE 0293 68.6 x 11.7 480.0 1180.0 20
27090 PVC-FLAT-CY 4G0.75 color coded, DIN VDE 0293 15.0 x 5.0 70.0 147.0 18
27103 PVC-FLAT-CY 4X4X1 Cont. white numbering 33.5 x 11.0 310.0 625.0 17
27091 PVC-FLAT-CY 4G1.5 color coded, DIN VDE 0293 18.7 x 5.9 116.0 210.0 16
27092 PVC-FLAT-CY 8G1.5 Cont. white numbering, 35.6 x 59.0 217.0 400.0 16
27093 PVC-FLAT-CY 12G1.5 Cont. white numbering, 52.1 x 5.9 266.0 610.0 16
27094 PVC-FLAT-CY 4G2.5 color coded, DIN VDE 0293 21.0 x 6.9 170.0 270.0 14
27104 PVC FLAT CY 6G2.5 Cont. white numbering, DIN VDE 0293 37.4 x 7.2 240.0 320.0 14
27095 PVC-FLAT-CY 4G4 color coded, DIN VDE 0293 24.5 x 7.7 225.0 400.0 12
27096 PVC-FLAT-CY 4G6 color coded, with grounding 30.1 x 9.2 328.0 520.0 10
27097 PVC-FLAT-CY 4G10 color coded, with grounding 35.8 x 10.5 525.0 840.0 8
27098 PVC-FLAT-CY 4G16 color coded, with grounding 41.3 x 12.6 788.0 1280.0 6
27099 PVC-FLAT-CY 4G25 color coded, with grounding 48.4 x 14.4 1170.0 1800.0 4
Technical Data
  • Special PVC-flat cable, shielded, adapted to DIN VDE 0283 part 2
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Iinstallation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage
    Min. 6000 V
  • Minimum Bending Radius
    15x cable thickness
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, fine wire conductors according to DIN VDE 0295 and IEC 60228 cl. 5, BS 6360 cl. 5
  • Special PVC insulation
  • Conductor identification see below
  • Conductors shielded individually or in bunches
  • Conductors laying parallel
  • Copper shielded braiding, approx. 85% coverage
  • Special PVC outer jacket: Black (RAL 9005)
Application
PVC shielded flat cables are used mainly as trailing cable for crane installations, floor conveyer systems and shelf control units.
Installation notes:
Cables reels with flat cables must be transported in standing position on the flange. A bending flexibility can be achieved on a plane surface. For this purpose, the corresponding fitting instructions should be followed.
  • Put the cable trolley on the guiding rail or upon carrier beam and push them together at the starting point. The distance between the bedding surface of two cable trolleys must be wider than the double thickness of a cable-packet.
  • During the packaging performance, it must be started with the smaller cross-section which lays on the bedding surface and will be built successively so that the biggest cross-section is laying on the top.
  • Further, be careful of a symmetrical load distribution.
  • In case of multi conductor flat cables with small cross-section, smaller than 2.5 mm², is very critical due to its low tensile stress. In such case, you should add 10% reserve wire for calculation.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.

CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Extensively oil resistant
  • Extremely small bending radius
  • High flexibility
  • Minimum waste of space
  • Packaging possibility
  • The high degree of shielding density assures disturbance-free transmission of all signal and impulses
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
  • G = with green-yellow grounding
    x = without grounding
  • AWG sizes are approximately equivalent values. The actual cross section is in mm2.
Cable Accessories
  • Coming Soon!
