Sealcon
Data, Network & BUS Cable:

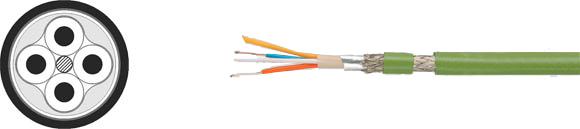

Industrial Ethernet PROFInet Type A
Standard and Robust
Part
Number:
800653
Part
Number:
801194
Electrical
Data
Characteristic
Impedance:
100
Ohm ± 15 Ohm (1-100 MHz)
100
Ohm ± 15 Ohm (1-100 MHz)
Conductor
Resistance:
62.0 Ohm/km
max.
62.0 Ohm/km
max.
Insulation
Resistance:
0.50 GOhm
x km min.
0.50 GOhm
x km min.
Loop Resistance:
124 Ohm/km max.
124 Ohm/km max.
Mutual
Capacitance:
50.0 nF/km
nom.
50.0 nF/km
nom.
Test Voltage:
2.0 kV
2.0 kV
Typical
Values
Frequency (MHz)
10
16
62.5
100
Attenuation (dB/10m)
5.2
6.9
15.0
19.5
Next (dB)
70.0
65.0
55.0
50.0
ACR (dB)
64.8
58.1
40.0
30.5
Technical
Data
Weight:
Approximately
67.0
kg/km
Approximately
64.0 kg/km
Min. Bending
Radius (Laying):
100.0 mm
46.0 mm
Operating
Temp. Range, min.:
-40°C/-40°F
-40°C/-40°F
Operating
Temp.Range, max.:
+80°C/+176°F
+70°C/+158°F
Caloric
Load, approx. value:
0.34 MJ/m
0.91 MJ/m
Copper
Weight:
32.0 kg/km
32.0 kg/km
Norms
Applicable Standards:
PROFInet Draft
PROFInet Draft
UL Style:
CMG +75°C/+167°F or PLTC or AWM 20201
-
CSA Standard:
CSA FT4
-
Technical
Data
Electrical
Data
Characteristic
Impedance:
100
Ohm ± 15 Ohm (1-100 MHz)
100
Ohm ± 15 Ohm (1-100 MHz)
Conductor
Resistance:
62.0 Ohm/km
max.
62.0 Ohm/km
max.
Insulation
Resistance:
0.50 GOhm
x km min.
0.50 GOhm
x km min.
Loop Resistance:
124 Ohm/km max.
124 Ohm/km max.
Mutual
Capacitance:
50.0 nF/km
nom.
50.0 nF/km
nom.
Test Voltage:
2.0 kV
2.0 kV
Typical
Values
Frequency (MHz)
10
16
62.5
100
Attenuation (dB/10m)
5.2
6.9
15.0
19.5
Next (dB)
70.0
65.0
55.0
50.0
ACR (dB)
64.8
58.1
40.0
30.5
Technical
Data
Weight:
Approximately
67.0
kg/km
Approximately
64.0 kg/km
Min. Bending
Radius (Laying):
100.0 mm
46.0 mm
Operating
Temp. Range, min.:
-40°C/-40°F
-40°C/-40°F
Operating
Temp.Range, max.:
+70°C/+158°F
+70°C/+158°F
Caloric
Load, approx. value:
0.34 MJ/m
0.91 MJ/m
Copper
Weight:
32.0 kg/km
32.0 kg/km
Norms
Applicable Standards:
PROFInet Draft
PROFInet Draft
UL Style:
CMG +60°C/+140°F or PLTC or AWM 20201
-
CSA Standard:
CSA FT4
-
Approvals
Type/Area
of Application
Fixed
Installation, Indoor
Heavy
Duty
Cable
Construction
2x2x0.64
mm
2x2x0.64
mm
Inner
Conductor Diameter:
Copper,
bare (AWG 22/1)
Copper,
bare (AWG 22/1)
Conductor Insulation:
PE
PE
Conductor Colors:
white,
yellow, blue, orange
white,
yellow, blue, orange
Stranding Element:
Star quad
Star quad
Shielding 1:
Polyester
foil over stranded bundle
Polyester
foil over stranded bundle
Shielding 2:
Polyester foil,
aluminum-lined
Polyester foil,
aluminum-lined
Total Shielding:
Copper braid, tinned
Copper braid, tinned
Inner Jacket
Material:
PVC
PVC
Outer Jacket
Material:
PVC
PUR
Outer Diameter:
6.5 mm ± 0.2
mm
6.5 mm ± 0.2
mm
Outer Jacket
Color:
Green similar
to RAL 6018
Green similar
to RAL 6018
Application
These copper data
cables, designed especially for heavy-duty
industrial applications, are very
well suited for Ethernet applications.
They ensure superior transmission
properties and can be used even under
most severe conditions. The line
specified here correspond to the
PROFInet type A it is designed for
normal (PVC) and robust (PUR) fixed
installation applications.
