Data, Network & BUS Cable:
I-BUS Halogen-free

InterBus  Bus Cables

Hi-Tech Controls, Inc, European & Domestic cable

Bus Cables, I-BUS, Interbus, Halogen-free, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part Number:
81557
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm
Conductor Resistance: 96.0 Ohm/km max.
Insulation Resistance: 1.00 GOhm x km min.
Loop resistance: 192 Ohm/km max.
Mutual Capacitance: 50.0 nF/km nom.
Test Voltage: 1.0 kV
Attenuation:
256 kHz < 1.5 dB/100m
772 kHz < 2.4 dB/100m
1 MHz < 2.7 dB/100m
4 MHz < 5.2 dB/100m
10 MHz < 8.4 dB/100m
16 MHz < 11.2 dB/100m
20 MHz < 11.9 dB/100m
Technical Data
Weight: Approximately 67.0 kg/km
Min. Bending Radius for Laying: 110.0 mm
Operating Temperature Range, min.: -25°C/-13°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, Approx. Value: 1.10 MJ/m
Copper Weight: 35.0 kg/km
Norms
Applicable Standards: Interbus Specification 2.0, IEC 61158
Technical Data
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm
Conductor Resistance: 96.0 Ohm/km max.
Insulation Resistance: 1.00 GOhm x km min.
Loop resistance 192 Ohm/km max.
Mutual Capacitance: 50.0 nF/km nom.
Test Voltage: 1.0 kV
Attenuation:
256 kHz < 1.5 dB/100m
772 kHz < 2.4 dB/100m
1 MHz < 2.7 dB/100m
4 MHz < 5.2 dB/100m
10 MHz < 8.4 dB/100m
16 MHz < 11.2 dB/100m
20 MHz < 11.9 dB/100m
Technical Data
Weight: Approximately 67.0 kg/km
Min. Bending Radius for Laying: 110.0 mm
Operating Temperature Range, min.: -25°C/-13°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, Approx. Value: 1.10 MJ/m
Copper Weight: 35.0 kg/km
Norms
Applicable Standards: Interbus Specification 2.0, IEC 61158
Approvals
RoHS
Type/Area of Application Fixed Installation, Indoor

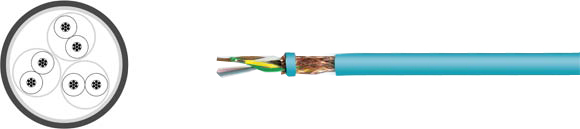

Cable Construction 3x2x0.22 mm2
Inner Conductor Diameter: Copper, bare (AWG 24/7)
Conductor Insulation: PE
Conductor Colors: white/brown, green/red, yellow/green
Stranding Element: Double Conductor
Shielding 1: Polyester foil over stranded bundle
Shielding 2: Polyester foil, aluminum-lined
Total Shielding: Copper braid, bare
Outer Jacket Material: PE
Outer Diameter: 7.0 mm ± 0.3 mm
Outer Jacket Color: Approx. Pastel Turquoise similar to RAL 6034
Application
Interbus-S is an inexpensive way to network sensors and actuators with all standard automation instruments. The twisted two-conductor conductor is used as a standard transfer medium. This bus system replaces the expensive parallel cabling for the different signal types in the lower levels of automation technique and combines the cables in a single bus cable. Interbus components are connected with this long-distance BUS cable. The cable with halogen free jacket is used for outdoor applications and in the food-industry.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
