Data, Network & BUS Cable:

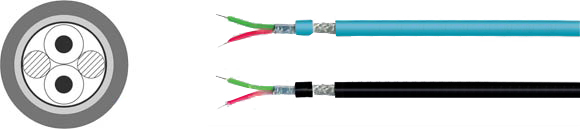

PROFIBUS PA Long Distance
Sealcon, Inc, European & Domestic cable
Part
Number: 800650
Part
Number:
800715
Electrical
Data
Characteristic
Impedance:
100
Ohm ± 20%
100
Ohm ± 20%
Conductor
Resistance:
24.0
Ohm/km max.
24.0
Ohm/km max.
Insulation
Resistance:
1.00 GOhm
x km min.
1.00
GOhm x km min.
Loop resistance:
48 Ohm/km max.
48 Ohm/km max.
Mutual
Capacitance:
60.0
nF/km nom.
60.0
nF/km nom.
Nominal
Voltage:
300 V
300 V
Test Voltage:
1.0
kV
1.0
kV
Attenuation:
39
kHz
≤
2.7
dB/km
39
kHz
≤
2.7
dB/km
Technical
Data
Weight:
Approximately
110.0
kg/km
Approximately
110.0 kg/km
Min. Bending
Radius (Laying):
75.0
mm
75.0
mm
Operating
Temp.Range, min.:
-40°C/-40°F
-40°C/-40°F
Operating
Temp.Range, max.:
+70°C/+158°F
+70°C/+158°F
Caloric
Load, Approx. Value:
1.57
MJ/m
1.57
MJ/m
Copper
Value:
62.0
kg/km
62.0
kg/km
Norms
Applicable Standards:
Profibus acc.
to DIN 19245 T3 and EN 50170
Profibus acc.
to DIN 19245 T3 and EN 50170
UL Style:
UL 2571
UL 2571
Technical
Data
Electrical
Data
Characteristic
Impedance:
100
Ohm ± 20%
100
Ohm ± 20%
Conductor
Resistance:
24.0
Ohm/km max.
24.0
Ohm/km max.
Insulation
Resistance:
1.00 GOhm
x km min.
1.00
GOhm x km min.
Loop resistance:
48 Ohm/km max.
48 Ohm/km max.
Mutual
Capacitance:
60.0
nF/km nom.
60.0
nF/km nom.
Nominal
Voltage:
300 V
300 V
Test Voltage:
1.0
kV
1.0
kV
Attenuation:
39
kHz
≤
2.7
dB/km
39
kHz
≤
2.7
dB/km
Technical
Data
Weight:
Approximately
110.0
kg/km
Approximately
110.0 kg/km
Min. Bending
Radius (Laying):
75.0
mm
75.0
mm
Operating
Temp.Range, min.:
-40°C/-40°F
-40°C/-40°F
Operating
Temp.Range, max.:
+70°C/+158°F
+70°C/+158°F
Caloric
Load, Approx. Value:
1.57
MJ/m
1.57
MJ/m
Copper
Value:
62.0
kg/km
62.0
kg/km
Norms
Applicable Standards:
Profibus acc.
to DIN 19245 T3 and EN 50170
Profibus acc.
to DIN 19245 T3 and EN 50170
UL Style:
UL 2571
UL 2571
Approvals
Type/Area
of Application
Hazardous
Areas
Non-Hazardous
Areas
Cable
Construction
1x2x1.6/3.2
mm
1x2x1.6/3.2
mm
Inner
Conductor Diameter 1:
Copper,
bare (AWG 16/7)
Copper,
bare (AWG 16/7)
Conductor Insulation:
PE
PE
Conductor Colors:
red,
green
red,
green
Stranding Element:
2
conductors + 2 fillers stranded
together
2
conductors + 2 fillers stranded
together
Shielding 1:
Polyester
foil over stranded bundle
Polyester
foil over stranded bundle
Shielding 2:
Polyester
foil, aluminum-lined
Polyester
foil, aluminum-lined
Total Shielding:
Copper
braid, tinned
Copper
braid, tinned
Outer Jacket
Material:
PVC
PVC
Outer Diameter:
Approx. 9.5 mm ± 0.5
mm
Approx. 9.5
mm ± 0.5 mm
Outer Jacket
Color:
Blue
Black
Application
This Profibus PA line is used in the area of process automation, among other things in the chemical industry. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for ex and not-ex installation and are equipped with a special PVC-jacket.
