CATV Cables

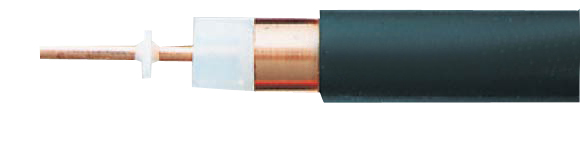

PE (Hollow) Insulated, Bare Copper Conductor / Copper Tube, Welded, PE Outer Jacket A-2Y0K2Y1 qKx 3.3 / 13.5

Sealcon, Inc, European & Domestic cable

CATV-Cables with Aluminum or Copper foil and braiding, A-2Y0K2Y1 qKx 3.3 / 13.5, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Sealcon,
Part Number: 40144
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 1 Ohm
Approx. Capacitance: 51.0 pF/m
Propagation Velocity v/c: 0.88
Post Office Approved: -
Attenuation at +20°C/+68°F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz
1.9 2.7 4.4 5.7 6.3 - - -
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
28 25 23 -
Direct Current Resistance at +20°C/+68°F:

Inner Conductor max. 2.5 Ohm/km
Outer Conductor max. 2.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
110 110 110 110
Technical Data
Electrical Characteristics
Impedance: 75� 1 Ohm
Approx. Capacitance: 51.0 pF/m
Propagation Velocity v/c: 0.88
Post Office Approved: -
Attenuation at +20�C/+68�F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz
1.9 2.7 4.4 5.7 6.3 - - -
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
28 25 23 -
Direct Current Resistance at +20�C/+68�F:

Inner Conductor max. 2.5 Ohm/km
Outer Conductor max. 2.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
110 110 110 110
Approvals
RoHS
Cable Construction Used as: Underground
Inner Conductor � mm: 3.3
Conductor Material: Copper, bare
Insulation � mm: 13.5 PE, hollow
Outer Conductor: Copper tube, welded
Outer Jacket: PE
Jacket Color: black
Outer Diameter (approx.): 17.0 mm
Min. Bending Radius: 300 mm
Strain / Suspending Wire: -
Weight (approx.): 347 kg/km
Properties
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AL = Aluminum, ALPR = Polyester foil coated with Aluminum on both sides
    BK-cable = bandwidth communication cable, Cu = Copper,
    CuR
    = Copper tube, welded, CuW = Copper-weld, F = Foil, G = Braid,
    PE
    = Polyethylene, PEH = Polyethylene air space insulation, PVC = Polyvinylchloride
Cable Accessories
  • Coming Soon!
