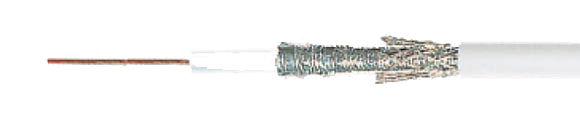

CATV Cables

PE-Insulated, Bare Copper Conductor / Polyester Foil with Aluminum on Both Sides,
Braid, PVC Outer Jack
0.7 / 4.4 ALG

Hi-Tech Controls, Inc, European & Domestic cable CATV-Cables
with Aluminum or Copper foil and braiding, 0.7 / 4.4 ALG, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,

Part Number:
40135

Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 3 Ohm
Approx. Capacitance: 67.0 pF/m
Propagation Velocity v/c: 0.66
Post Office Approved: G670009A
Attenuation at +20°C/+68°F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz
9.0 12.0 21.2 27.5 30.5 37.0 43.0 47.5
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
30 30 25 23
Direct Current Resistance at +20°C/+68°F:

Inner Conductor max. 47.0 Ohm/km
Outer Conductor max. 23.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
75 75 75 75

Technical Data
Electrical Characteristics
Impedance: 75 3 Ohm
Approx. Capacitance: 67.0 pF/m
Propagation Velocity v/c: 0.66
Post Office Approved: G670009A
Attenuation at +20C/+68F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz
9.0 12.0 21.2 27.5 30.5 37.0 43.0 47.5
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
30 30 25 23
Direct Current Resistance at +20C/+68F:

Inner Conductor max. 47.0 Ohm/km
Outer Conductor max. 23.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
75 75 75 75

Approvals
RoHS
Cable Construction
Inner Conductor mm: 0.7
Conductor Material: Copper, bare
Insulation mm: 4.4 PE
Outer Conductor: Polyester foil coated with aluminum on both sides, Braid
Outer Jacket: PVC
Jacket Color: white
Outer Diameter (approx.): 6.6 mm
Min. Bending Radius: 35 mm
Strain / Suspending Wire: -
Weight (approx.): 44 kg/km
Properties
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AL = Aluminum, ALPR = Polyester foil coated with Aluminum on both sides
    BK-cable = bandwidth communication cable, Cu = Copper,
    CuR
    = Copper tube, welded, CuW = Copper-weld, F = Foil, G = Braid,
    PE
    = Polyethylene, PEH = Polyethylene air space insulation, PVC = Polyvinylchloride
Cable Accessories
  • Coming Soon!
