CATV Cables

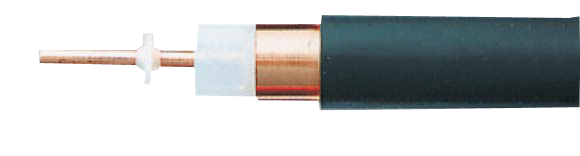

PE-Insulated, Bare Copper Conductor / Copper Tube, Welded, PE Outer Jacket A-2YK2Y1 iKx 1.1 / 7.3

Hi-Tech Controls, Inc, European & Domestic cable

CATV-Cables with Aluminum or Copper foil and braiding, A-2YK2Y1 iKx 1.1 / 7.3, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part Number:
40142
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 2 Ohm
Approx. Capacitance: 65.0 pF/m
Propagation Velocity v/c: 0.66
Post Office Approved: -
Attenuation at +20°C/+68°F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz
5.4 7.9 12.9 17.3 18.9 - - -
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
26 23 21 -
Direct Current Resistance at +20°C/+68°F:

Inner Conductor max. 22.0 Ohm/km
Outer Conductor max. 3.1 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
110 110 110 110
Technical Data
Electrical Characteristics
Impedance: 75 2 Ohm
Approx. Capacitance: 65.0 pF/m
Propagation Velocity v/c: 0.66
Post Office Approved: -
Attenuation at +20C/+68F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz
5.4 7.9 12.9 17.3 18.9 - - -
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
26 23 21 -
Direct Current Resistance at +20C/+68F:

Inner Conductor max. 22.0 Ohm/km
Outer Conductor max. 3.1 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
110 110 110 110
Approvals
RoHS
Cable Construction Used as: Underground
Inner Conductor mm: 1.1
Conductor Material: Copper, bare
Insulation mm: 7.3 PE
Outer Conductor: Copper tube, welded
Outer Jacket: PE
Jacket Color: black
Outer Diameter (approx.): 11.0 mm
Min. Bending Radius: 160 mm
Strain / Suspending Wire: -
Weight (approx.): 142 kg/km
Properties
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AL = Aluminum, ALPR = Polyester foil coated with Aluminum on both sides
    BK-cable = bandwidth communication cable, Cu = Copper,
    CuR
    = Copper tube, welded, CuW = Copper-weld, F = Foil, G = Braid,
    PE
    = Polyethylene, PEH = Polyethylene air space insulation, PVC = Polyvinylchloride
Cable Accessories
  • Coming Soon!
