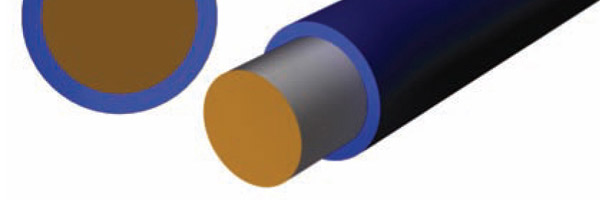

UL AWM Style 1864

Sealcon, Inc, European & Domestic cable


Sealcon, UL AWM Style 1864 cable
AWM Style 1864
Part No: AWG Conductor Normal O.D Weight Lb / KFT
Inches mm Inches mm
S10A37TX-21 10(37/26) 0.1070 2.718 0.1490 3.785 35.10
S12A19TX-21 12(19/25) 0.0862 2.189 0.1282 3.256 24.01
S14A19TX-21 14(19/27) 0.0679 1.725 0.1099 2.791 16.12
S16A01TX-21 16 0.0508 1.290 0.0928 2.357 11.30
S16A19TX-21 16(19/29) 0.0539 1.369 0.0959 2.436 11.13
S18A01TX-21 18 0.0403 1.024 0.0823 2.090 7.90
S18A19TX-21 18(19/30) 0.0476 1.209 0.0896 2.276 9.20
S20A01TX-21 20 0.0320 0.813 0.0740 1.880 5.67
S20A19TX-21 20(19/32) 0.0385 0.978 0.0805 2.045 6.64
S22A01TX-21 22 0.0253 0.643 0.0673 1.709 3.19
S22A19TX-21 22(19/34) 0.0295 0.749 0.0715 1.816 4.79
S24A01TX-21 24 0.0201 0.511 0.0621 1.577 3.22
S24A19TX-21 24(19/36) 0.0242 0.615 0.0662 1.681 3.67
S26A01TX-21 26 0.0159 0.404 0.0579 1.471 2.56
S26A19TX-21 26(19/38) 0.0190 0.483 0.0610 1.549 2.83
S28A01TX-21 28 0.0126 0.320 0.0546 1.387 2.11
S28A07TX-21 28(7/36) 0.0150 0.381 0.0570 1.448 2.24
S28A19TX-21 28(19/40) 0.0152 0.386 0.0572 1.453 2.33
Technical Data
  • Size Range
    10 AWG - 28 AWG
  • Temperature Range
    125°C
    Voltage: 600 V
  • Insulation: ETFE
  • Applications: Internal wiring of appliances and electronic equipment
  • Compliances:
    UL AWM Style 1864
    CSA AWM C22.2 No.210.2-M90
    License No. LL84686-1
    File No. E78621
    150� C / 600 V Basic instalation per UL 60950-1
    RoHS Compliant
Approvals
ULCSAUL/CSA Approvalur
Conductor:
  • Tin plated copper
    Solid or stranded (ASTM B-33/ASTM B-286)
    Bare copper and other conductors available.
