Hi-Tech Controls Helukabel Telephone Cables & Fire Warning Cables:
J-Y(St)Y Lg
Telephone Installation Cable, According to VDE 0815
Helukabel Part-No.
Description & No.
of Pairs x Diameter in mm
Outer Ø (mm)
Cop.
Weight
kg/km
Weight
kg/km
AWG
33001
J-Y(St)Y Lg
2x2x0.6
5.0
13.0
40.0
-
33002
J-Y(St)Y Lg
3x2x0.6
6.3
18.0
50.0
-
33003
J-Y(St)Y Lg
4x2x0.6
6.5
24.0
60.0
-
33004
J-Y(St)Y Lg
5x2x0.6
7.2
30.0
70.0
-
33005
J-Y(St)Y Lg
6x2x0.6
7.5
35.0
80.0
-
33006
J-Y(St)Y Lg
8x2x0.6
8.0
46.0
90.0
-
33007
J-Y(St)Y Lg
10x2x0.6
10.0
58.0
110.0
-
33008
J-Y(St)Y Lg
12x2x0.6
10.2
71.0
130.0
-
33009
J-Y(St)Y Lg
16x2x0.6
11.0
93.0
160.0
-
33010
J-Y(St)Y Lg
20x2x0.6
12.0
116.0
190.0
-
33011
J-Y(St)Y Lg
24x2x0.6
13.0
139.0
220.0
-
33012
J-Y(St)Y Lg
30x2x0.6
14.0
172.0
280.0
-
33013
J-Y(St)Y Lg
40x2x0.6
15.0
220.0
350.0
-
33014
J-Y(St)Y Lg
50x2x0.6
17.0
286.0
430.0
-
33015
J-Y(St)Y Lg
60x2x0.6
19.0
342.0
500.0
-
33016
J-Y(St)Y Lg
80x2x0.6
21.0
455.0
640.0
-
33017
J-Y(St)Y Lg
100x2x0.6
24.0
568.0
850.0
-
33018
J-Y(St)Y Lg
2x2x0.8
7.0
21.0
60.0
-
33019
J-Y(St)Y Lg
3x2x0.8
8.5
31.0
80.0
-
33020
J-Y(St)Y
Lg 4x2x0.8
9.0
41.0
100.0
-
33021
J-Y(St)Y
Lg 5x2x0.8
9.5
52.0
120.0
-
33022
J-Y(St)Y
Lg 6x2x0.8
11.0
62.0
140.0
-
33023
J-Y(St)Y
Lg 8x2x0.8
11.5
82.0
170.0
-
33024
J-Y(St)Y
Lg 10x2x0.8
13.2
102.0
220.0
-
33025
J-Y(St)Y
Lg 12x2x0.8
14.2
123.0
250.0
-
33026
J-Y(St)Y
Lg 16x2x0.8
16.0
164.0
320.0
-
33027
J-Y(St)Y
Lg 20x2x0.8
17.0
204.0
380.0
-
33028
J-Y(St)Y
Lg 24x2x0.8
19.0
244.0
460.0
-
33029
J-Y(St)Y
Lg 30x2x0.8
20.8
304.0
560.0
-
33030
J-Y(St)Y
Lg 40x2x0.8
23.0
405.0
710.0
-
33031
J-Y(St)Y
Lg 50x2x0.8
26.0
505.0
900.0
-
33032
J-Y(St)Y
Lg 60x2x0.8
28.0
606.0
1050.0
-
33033
J-Y(St)Y
Lg 80x2x0.8
31.5
807.0
1400.0
-
33034
J-Y(St)Y
Lg 100x2x0.8
33.0
1008.0
1750.0
-
Technical
Data
Helukabel
Installation cable according
to DIN VDE 0815
Temperature Range During Operation
-5°C to +50°C (+23°F to +122°F)
Before and After Installation
-30°C to +70°C (-22°F to +158°F)
Loop Resistance
At 20°C/+68°F max. 130 Ohm/km
0.6 mm - max. 130 Ohm/km
0.8 mm - max. 73.2 Ohm/km
Nominal voltage (peak
voltage)
0.6 mm - 300 V
0.8 mm - 3003) V
Test voltage Conductor/conductor U eff. 800
V
Conductor/shield 800 V
Insulation Resistance Min. 100 MOhm x km
Mutual Capacitance at
800 Hz
Max. 1001) nF/km
Capacitance Unbalances at
800 Hz
k- max. 3002) pF/100 m
Line Attenuation at
800 Hz
0.6 mm - 1.7 dB/km
0.8 mm - 1.1 dB/km
Minimum Bending Radius To DIN VDE 0891 part 5
During delivery 7.5x cable Ø
Single bending without tension
2.5x cable Ø
Repeated bending under tension
7.5x cable Ø
Radiation Resistance Up to 80x106 cJ/kg (up
to 80 Mrad)
Caloric Load Values See Technical Information
Approvals

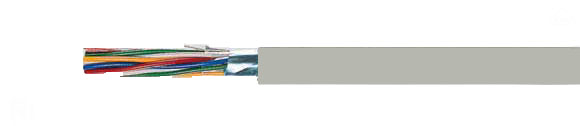

Cable
Construction
As per J-YY, but laid up in pairs
and with electrostatic shield (St)
Bare copper conductor, solid, 0.6
and 0.8 mm Ø
PVC conductor insulation, compound type
YI1, to DIN VDE 0207, insulation wall-thickness
0.2 mm and 0.4 mm to table 7
Conductor and pair identification to DIN
VDE 0815
Conductors twisted to pairs and the pairs
are stranded in layers
Conductor wrapping with plastic tape
Electrostatic shield (St) of plastic
coated aluminum foil and drain wire
PVC outer jacket gray, flame retardant,
compound type YM1 to DIN VDE 0207 part
5, jacket wall-thickness to DIN VDE
0815 table 19
Application
This cable type
with electrostatic shielding (St)
protects the transmission circuits
against extern electrical interferences.
Installation cables laid up in pairs
are preferable used for indoor telecommunication
installation in dry and damp environments
in, on and under plaster as well
as in the open air for fixed installation
on outer walls of buildings.
These cables are suitable for telephone
stations and sub-extensions, for
signal and data transmission. Telephone-Installation
cables are not allowed for purposes
of high current and power installation. =
The product is conformed with the
EC Low-Voltage Directive 2006/95/EG.
Properties
PVC self-extinguishing and flame retardant
according to VDE 0482-332-1-2, DIN
EN 60332-1-2 / IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
The materials used in manufacture are
cadmium-free, contain no silicone
and are free from substances harmful to the
wetting properties of lacquers
Note
¹) This value may be extended
by 20% with a make-up to 4 pairs.
²) 20% of the values, but one
value up to 500 pF is allowed.
³) Short time operation (6 s/min)
up to 600 V permitted.
