Halogen-Free, For fixed Installation, Emission-Free, 300/500 V
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer Ø (mm)
Copper
Weight
kg/km
Weight
kg/km
AWG
51996
(N)HMH-J 3G1.5 RE
9.4
43.0
92.0
16
52001
(N)HMH-J 4G1.5 RE
10.2
58.0
115.0
16
52009
(N)HMH-J 5G1.5 RE
10.8
72.0
133.0
16
52016
(N)HMH-J 7G1.5 RE
11.4
101.0
168.0
16
51997
(N)HMH-J 3G2.5 RE
10.4
72.0
128.0
14
52002
(N)HMH-J 4G2.5 RE
11.3
96.0
152.0
14
52010
(N)HMH-J 5G2.5 RE
11.9
120.0
182.0
14
52017
(N)HMH-J 7G2.5 RE
13.5
158.0
250.0
14
51992
(N)HMH-J 1G4 RE
8.6
38.0
62.0
12
51998
(N)HMH-J 3G4 RE
11.8
115.0
192.0
12
52003
(N)HMH-J 4G4 RE
13.3
154.0
244.0
12
52011
(N)HMH-J 5G4 RE
14.8
192.0
300.0
12
51993
(N)HMH-J 1G6 RE
9.9
58.0
83.0
10
51999
(N)HMH-J 3G6 RE
13.4
173.0
267.0
10
52004
(N)HMH-J 4G6 RE
14.8
230.0
345.0
10
52012
(N)HMH-J 5G6 RE
16.0
288.0
400.0
10
51994
(N)HMH-J 1G10 RE
11.2
96.0
125.0
8
52000
(N)HMH-J 3G10 RE
16.0
288.0
628.0
8
52005
(N)HMH-J 4G10 RE
17.4
384.0
522.0
8
52013
(N)HMH-J 5G10 RE
18.9
480.0
620.0
8
51995
(N)HMH-J 1G16 RM
11.9
154.0
188.0
6
52006
(N)HMH-J 4G16 RM
21.6
614.0
815.0
6
52014
(N)HMH-J 5G16 RM
23.8
768.0
995.0
6
52007
(N)HMH-J 4G25 RM
27.0
960.0
1305.0
4
52015
(N)HMH-J 5G25 RM
29.0
1200.0
1580.0
4
52008
(N)HMH-J 4G35 RM
29.9
1344.0
1750.0
2
Technical
Data
Helukabel
Plastic-outer jacket cable, halogen-free,
for fixed installation
Adapted to DIN VDE 0250 part 215
Permissible Working Temperature at the conductor +70°C/+158°F
Nominal Voltage U0/U
300/500 V
Max. Voltage for
equipment Um 550 V
Caloric Load Values See Technical Information
Power Rating
in accordance with DIN
VDE 0298 part 4, tables 3
and 4, analogous for NYM,
taking the type of installation
and the appropriate factors
for differing ambient temperatures
and build-up of cables
rated short-circuit current
of density acc. to DIN VDE
0298 part 4 table 15
fuse rating according to
DIN VDE 0100 part 430
Approvals
Cable
Construction
Bare copper conductor,
solid or stranded on the basis of DIN
VDE 0250 part 204 with the following
modifications:
Conductor insulation
of halogen-free thermoplastic polymer
compound with optimum wall thickness
Color coded
to DIN VDE 0293-308
Green-yellow
grounding, 3 conductors and above
for 1 conductor cable
conductor color green-yellow
Conductors stranded
in layer
Extruded conductor
insulation, halogen-free
Outer jacket of non-cross-linked,
halogen-free thermoplastic polymer compound
Jacket color: Light-gray
(RAL 7035)
Application
This plastic-outer jacket
cable of defined behavior in case
of fire is used for installations
in residential dwellings, public
buildings as well as in industrial
constructions.
Suitable for applications in dry,
damp or wet environments for installation
above, on, in and beneath plaster,
as well as in masonry and concrete
walls, not however for embedding
in vibration, compacted or tamped
concrete.
The cable is also approved for outdoor
applications provided these are not
exposed to direct sunlight radiation.
Installation of this cable in earth
or in water is not permitted. =
The product is conformed with the EC
Low-Voltage Directive 2006/95/EG.
Properties
Corrosive nature of combustion
gases (halogen-free verification) testing acc. to VDE 0482
part 267, DIN EN 50267-2-2, IEC 60754-2,
HD 602 (equivalent DIN VDE 0472 part
813)
Behavior in case of fire testing according to VDE
0482332-1-2, DIN EN 60332-1-2 / IEC
60332-1 (equivalent DIN VDE 0472 part
804 test method B)
Low smoke testing acc. to DIN VDE 0472 part
818
Note
re = round conductor, single-wire
rm = round conductor, multiple-wire
G = with green-yellow grounding
O-version: single conductor conductor
with black conductor insulation. Cables
with between two and seven conductors
are without green-yellow conductor.
J-version: with green-yellow conductor
insulation.
AWG sizes are approximate equivalent
values. The actual cross-section
is in mm².
is the Exclusive Importer of HUMMEL products. We offer over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit System, Industrial Enclosures and Other Related Cable Management Products which are rated the best in the industry.
Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands Threads: PG, NPT, Metric, BSPP Threads Materials: Nylon, Nickel Plated Brass, PVDF (for chemicals and extreme temperatures) & Stainless Steel,
NEMA 4x and 6 (IP68, IP 69K). Approvals: RoHS, Deca BDE, UR, UL, CE, CSA, VDE, German Lloyd, etc. UL f1 (UL 746C) - Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
Circular Connectors (M16, M23, RJ45, M27 and M40) Sizes: M16 Signal, M23 Signal & Power, M27 Signal, M40 Power, M12/16 Twintus Types: Twintus, RJ45 Industrial Ethernet, PoE Fast Ethernet, Push-Pull, Stainless Steel, Over Molded Cordsets, Standard/EMI Ready Configurations: Signal (3-28 pole) & Power (6 & 8 pole) Materials: Nickel Plated Brass, Stainless Steel and Aluminum Approvals: RoHS, Deca BDE, UR, UL, CSA, TÜV, etc.
Industrial Enclosures (Plastic & Metal) Materials: Polycarbonate, ABS (Acryl-Butadiene-Styrene), Aluminum, Steel/Stainless Steel and Polyester. Types: Gray or Transparent Lids, available with Hinges and Latches, Plain Walls or Knockouts. Approvals: RoHS, Deca BDE, UL, CSA, TUV and CE.
Modular, Expandable, UV and Impact Resistant, NEMA 4, 4x (IP 66/67). Solar Plus for Photovoltaic applications.
Our Enclosures can be equipped with Strain Relief Fittings, Circular Connectors or Conduit Fittings. Other customization options like cutting & drilling are also available.
Conduit System
High Pull-Out Resistance, Robust Performance, Long Life Expectancy, Fastest/ Easy installation, No Tools required!
Fittings: Push-In, Turn-to-Seal, Snapclic DUO (Nylon or Nickel Plated Brass), Double-Seal, Flange/Bulkhead
Conduit: Standard and Super Flex Corrugated Conduit Accessories: Snap-In Mounting Brackets. NEMA 4 (IP 54/65) Approvals: RoHS, Deca BDE, UR, German Lloyd, CE, etc.
Hazardous Location / Explosive Proof Cord Grips, Cable Glands
These fittings are labeled and approved to withstand the required needs of a combustible environment. Materials: Nylon, Nickel Plated Brass, PVDF (chemical resistant & extreme temperatures), Stainless Steel. Threads: NPT, Metric & PG. NEMA 4x (IP 67) and 6 (IP 68/69K)
Approvals: RoHS, Deca BDE, UL, CSA, VDE, CE, EEx e, ATEX, German Lloyd, IECEx,
Ex-d/Ex-e, Ex-i EXIOS - High-end Cable Glands for armored cables in hazardous areas including the latest IECEx and ATEX certifications, for use in Ex-e, Ex-d and Ex-tD areas
Thread Adapters, Enlargers, Reducers
Convert, Increase or Decrease your thread size with our newest product line of Adapters, Enlargers and Reducers. Threads: NPT, Metric and PG. Materials: Black or Gray Nylon, Nickel Plated Brass, Aluminum, Stainless Steel. Approvals: RoHS, Deca BDE, CE, EEe x, ATEX, etc.
Hazardous / Explosive proof versions available.
All-weather, Rubber & Welding
Installation Cables
Installation Cables, Halogen-free

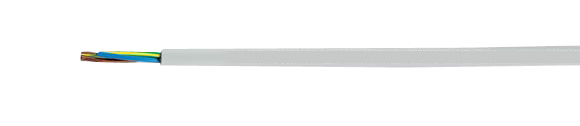

HMH-J.jpg)
=
