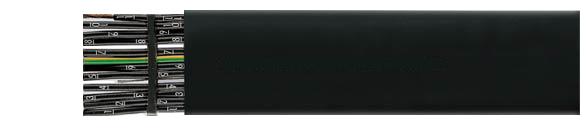

Helukabel Flat & Ribbon Cable:
PVC-flat (H05 VVH6-F/H07 VVH6-F)
300/500 V and 450/750 V

Hi-Tech Controls, Inc, HELUKABEL wires and cables

PVC-flat (H05 VVH6-F/H07 VVH6-F) , Hi-tech Controls, Helukabel
AWG Selection
18
 18
17
 17
16
 16
14
 14
12
 12
10
 10
8
 8
6
 6
4
 4
2
 2
1
 1
2/0
 2/0

Helukabel Part-No. Description & No. Conductors x
cross-sec. mm2		 Outer
Dimensions
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
26980  PVC-flat 4G0.75 4.3 x 12.6 28.8 90.0 18
26981 PVC-flat 5G0.75 4.3 x 16.1 36.0 115.0 18
26982 PVC-flat 6G0.75 4.3 x 19.4 43.2 141.0 18
26983 PVC-flat 9G0.75 4.3 x 26.4 64.8 198.0 18
26984 PVC-flat 10G0.75 4.3 x 30.1 72.0 224.0 18
26985 PVC-flat 12G0.75 4.3 x 33.8 84.4 258.0 18
26986 PVC-flat 16G0.75 4.3 x 44.4 115.2 340.0 18
26987 PVC-flat 18G0.75 4.3 x 49.2 129.6 380.0 18
26988 PVC-flat 20G0.75 4.3 x 55.0 144.0 424.0 18
26989 PVC-flat 24G0.75 4.3 x 65.6 172.8 509.0 18
26990  PVC-flat 3G1 4.5 x 10.8 28.8 80.0 17
26991 PVC-flat 4G1 4.5 x 13.4 38.4 104.0 17
26992 PVC-flat 5G1 4.5 x 16.0 48.0 134.0 17
26993 PVC-flat 6G1 4.5 x 20.6 57.6 161.0 17
26994 PVC-flat 9G1 4.5 x 28.4 86.4 230.0 17
26995 PVC-flat 10G1 4.5 x 30.0 96.0 256.0 17
26996 PVC-flat 12G1 4.5 x 36.2 115.2 298.0 17
26997 PVC-flat 16G1 4.5 x 47.6 153.6 395.0 17
26998 PVC-flat 18G1 4.5 x 52.8 172.8 441.0 17
26999 PVC-flat 20G1 4.5 x 59.0 192.0 495.0 17
27000 PVC-flat 24G1 4.5 x 70.4 230.4 590.0 17
27001  PVC-flat 4G1.5 4.5 x 13.7 58.0 133.0 16
27002 PVC-flat 5G1.5 4.5 x 17.9 72.0 169.0 16
27003 PVC-flat 7G1.5 4.5 x 23.5 101.0 235.0 16
27004 PVC-flat 8G1.5 4.5 x 26.8 115.0 265.0 16
27005 PVC-flat 10G1.5 4.5 x 33.5 144.0 332.0 16
27006 PVC-flat 12G1.5 4.5 x 38.9 173.0 421.0 16
27028 PVC-flat 16G1.5 4.5 x 51.5 230.4 555.0 16
27030 PVC-flat 24G1.5 4.5 x 83.0 346.0 820.0 16
27007  PVC-flat 4G2.5 5.5 x 17.0 96.0 205.0 14
27008 PVC-flat 5G2.5 5.5 x 21.5 120.0 256.0 14
27009 PVC-flat 7G2.5 5.5 x 30.3 168.0 344.0 14
27010 PVC-flat 8G2.5 5.5 x 31.9 192.0 389.0 14
27011 PVC-flat 12G2.5 5.8 x 47.1 288.0 580.0 14
27029 PVC-flat 16G2.5 5.8 x 55.1 384.0 674.0 14
27012 PVC-flat 24G2.5 15.0 x 63.0 604.0 950.0 14
27027 PVC-flat 24G2.5 5.8 x 120.0 604.0 950.0 14
27013  PVC-flat 4G4 7.0 x 21.8 154.0 344.0 12
27014 PVC-flat 5G4 7.0 x 27.4 192.0 428.0 12
27015 PVC-flat 7G4 7.9 x 36.6 269.0 590.0 12
Helukabel Part-No. Description & No. Conductors x
cross-sec. mm2		 Outer
Dimensions		 Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
27016  PVC-flat 4G6 8.2 x 24.8 230.0 424.0 10
27017 PVC-flat 5G6 8.2 x 31.8 288.0 530.0 10
27018 PVC-flat 7G6 8.2 x 42.6 403.0 760.0 10
27019  PVC-flat 4G10 10.0 x 29.6 384.0 710.0 8
27020  PVC-flat 4G16 11.2 x 34.4 614.0 1014.0 6
27025 PVC-flat 5G16 13.0 x 46.6 768.0 1370.0 6
27021  PVC-flat 4G25 13.7 x 42.6 960.0 1365.0 4
27026 PVC-flat 5G25 15.5 x 55.5 1200.0 2000.0 4
27022  PVC-flat 4G35 15.4 x 47.6 1344.0 2100.0 2
27023  PVC-flat 4G50 18.2 x 57.0 1920.0 2940.0 1
27024  PVC-flat 4G70 20.0 x 64.2 2688.0 4090.0 2/0
Technical Data Helukabel
  • Special PVC-flat cable,
    H05 VVH6-F to EN 50214
    H07 VVH6-F to HD 359 S2
    (25 mm2 and above in adapted)
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    H05 VVH6-F = up to 1 mm²
    U0/U 300/500V
    H07 VVH6-F = 1.5 mm²
    U0/U 450/750 V
  • Test Voltage
    H05 VVH6-F = up to 1 mm² 2000 V
    H07 VVH6-F =  1.5 mm² 2500 V
  • Minimum Bending Radius
    10x cable thickness
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE
Cable Construction
  • Bare copper, stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2 to DIN VDE 0281 part 1
  • Conductors laying parallel
  • Conductor identification up to 5 conductors to color code DIN VDE 0293
    7 conductors and above with number printing
  • Green-yellow earth conductor
  • Special PVC outer jacket TM2 to DIN VDE 0281 part 1
  • Color: Black (RAL 9005)
Application
PVC type of flat cables are used mainly as trailing cable for crane installations, floor conveyer systems and shelf control units.
Installation notes: See NEO flat at page J5.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For chemical resistance, see table technical information
  • Extremely small bending radius
  • High flexibility
  • Minimum waste of space
  • Packaging possibility
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Note
  • Art.No. 27012 (6x4)
  • G = with green-yellow grounding
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
