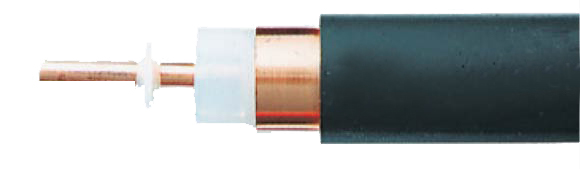

PE (Hollow)
-Insulated, Bare Copper Conductor
/ Copper Tube, Welded, PE Outer
Jacket
A-2Y0K2Y1 sKx 4.9 / 19.4
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part
Number: 40179 Add to Quote
Electrical
Characteristics
Impedance:
75± 1
Ohm
Approx.
Capacitance:
50.0 pF/m
Propagation
Velocity v/c:
0.89
Post Office
Approved:
-
Attenuation
at +20°C/+68°F (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
950
MHz
1350
MHz
1750
MHz
2050
MHz
1.3
1.9
3.1
4.1
4.4
-
-
-
Structural
Return Loss (min.):
30 and 300 MHz
300 and
600 MHz
600
and 960 MHz
960
and 1750 MHz
28
25
23
-
Direct
Current Resistance at +20°C/+68°F:
Inner Conductor max.
1.0
Ohm/km
Outer Conductor max.
1.0 Ohm/km
Shielding
Efficiency (dB):
50 and 100 MHz
100
and 500 MHz
500
and 1000 MHz
1000
and 2050 MHz
110
110
110
110
Technical
Data
Helukabel
Electrical
Characteristics
Impedance:
75± 1
Ohm
Approx.
Capacitance:
50.0 pF/m
Propagation
Velocity v/c:
0.89
Post Office
Approved:
-
Attenuation
at +20°C/+68°F (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
950
MHz
1350
MHz
1750
MHz
2050
MHz
1.3
1.9
3.1
4.1
4.4
-
-
-
Structural
Return Loss (min.):
30 and 300 MHz
300 and
600 MHz
600
and 960 MHz
960
and 1750 MHz
28
25
23
-
Direct
Current Resistance at +20°C/+68°F:
Inner Conductor max.
1.0
Ohm/km
Outer Conductor max.
1.0 Ohm/km
Shielding
Efficiency (dB):
50 and 100 MHz
100
and 500 MHz
500
and 1000 MHz
1000
and 2050 MHz
110
110
110
110
Approvals
Cable
Construction
Used as: Underground
Inner
Conductor Ø mm:
4.9
Conductor Material:
Copper, bare
Insulation Ø mm:
19.4 PE, hollow
Outer Conductor:
Copper tube,
welded
Outer Jacket:
PE
Jacket Color:
black
Outer Diameter
(approx.):
24.4
mm
Min. Bending
Radius:
400 mm
Strain / Suspending
Wire:
-
Weight (approx.):
500 kg/km
Properties
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
AL = Aluminum, ALPR = Polyester foil coated with Aluminum
on both sides BK-cable = bandwidth communication
cable, Cu = Copper,
CuR = Copper tube,
welded, CuW = Copper-weld, F = Foil,
G = Braid,
PE = Polyethylene, PEH =
Polyethylene air space insulation, PVC
= Polyvinylchloride
