Brass Couplings Index

Brass Compression Fittings

Brass Pneumatic Components Sealcon, Inc

	Compression/Double Compression
	Sure Seal "Captive Sleeve" Heavy Duty Brass Fittings
	Compression Brass Fittings for "Polyethylene Tubing"
	Poly-Grasp Brass Fittings for Poly Tubing with Captive Sleeve
	Poly Push Brass Fittings
	Assembly Instructions

Stastrate Compression Sleeve Fittings

Stastrate Brass Sleeves Are Designed Not To "Tilt" When Tightened Down. Stastrate Assemblies Are Recommended For Use With Copper Or Plastic Tubing. #461 Insert Required When Using Poly Tubing

860

Brass Sleeve Sastrate Compression

861

Brass Nut stastrate Brass for Metal or plastic Tubing use with #860 Shown above

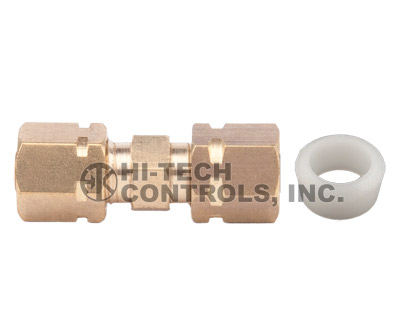

862

Brass Union - Sastrate Compression Sleeve

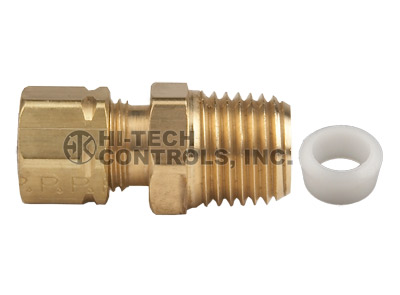

868

Brass Male Connector - Sastrate Compression Sleeve

Category Number	Tube Outer Diameter x Male Pipe (inches)
868A	1/8 X 1/8
868B	3/16 X 1/8
868BB	3/16 X 1/4
868C	1/4 X 1/8
868CC	1/4 X 1/4
868CE	1/4 X 3/8
868CF	1/4 X 1/2
868D	5/16 X 1/8
868DD	5/16 X 1/4
868E	3/8 X 1/8
868EE	3/8 X 1/4
868EEE	3/8 X 3/8
868EF	3/8 X 1/2
868EJ	3/8 X 3/4
868F	1/2 X 3/8
868FC	1/2 X 1/4
868FF	1/2 X 1/2
868FJ	1/2 X 3/4
868H	5/8 X 1/2
868HJ	5/8 X 3/4

866

Brass Female Connector - Sastrate Compression Sleeve

Category Number	Tube Outer Diameter x Female Pipe (inches)
866A	1/8 X 1/8
866B	3/16 X 1/8
866BB	3/16 X 1/4
866C	1/4 X 1/8
866CC	1/4 X 1/4
866CE	1/4 X 3/8
866D	5/16 X 1/8
866DD	5/16 X 1/4
866E	3/8 X 1/8
866EE	3/8 X 1/4
866EEE	3/8 X 3/8
866EF	3/8 X 1/2
866FC	1/2 X 1/4
866F	1/2 X 3/8
866FF	1/2 X 1/2
866FJ	1/2 X 3/4
866H	5/8 X 1/2
866HJ	5/8 X 3/4

869

Brass Male Elbow - Sastrate Compression Sleeve

Category Number	Tube Outer Diameter x Female Pipe (inches)
869A	1/8 X 1/8
869B	3/16 X 1/8
869BB	3/16 X 1/4
869C	1/4 X 1/8
869CC	1/4 X 1/4
869CE	1/4 X 3/8
869D	5/16 X 1/8
869DD	5/16 X 1/4
869E	3/8 X 1/8
869EE	3/8 X 1/4
869EEE	3/8 X 3/8
869EF	3/8 X 1/2
869EJ	3/8 X 3/4
869F	1/2 X 3/8
869FC	1/2 X 1/4
869FF	1/2 X 1/2
869FJ	1/2 X 3/4
869H	5/8 X 1/2
869HJ	5/8 X 3/4

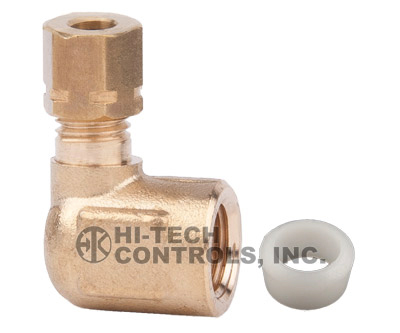

870

Brass Female Elbow - Sastrate Compression Sleeve

Category Number	Tube Outer Diameter x Female Pipe (inches)
870A	1/8 X 1/8
870B	3/16 X 1/8
870C	1/4 X 1/8
870CC	1/4 X 1/4
870CE	1/4 X 3/8
870D	5/16 X 1/8
870DD	5/16 X 1/4
870E	3/8 X 1/8
870EE	3/8 X 1/4
870EEE	3/8 X 3/8
870EF	3/8 X 1/2
870EJ	3/8 X 3/4
870FC	1/2 X 1/4
870F	1/2 X 3/8
870FF	1/2 X 1/2
870FJ	1/2 X 3/4
870H	5/8 X 1/2
870HJ	5/8 X 3/4

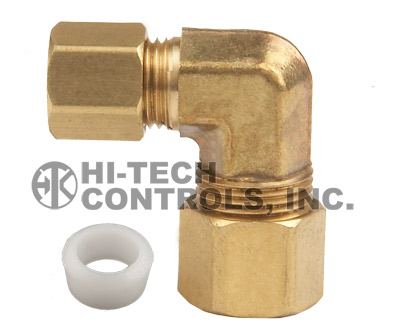

865

Brass Elbow Union - Sastrate Compression Sleeve

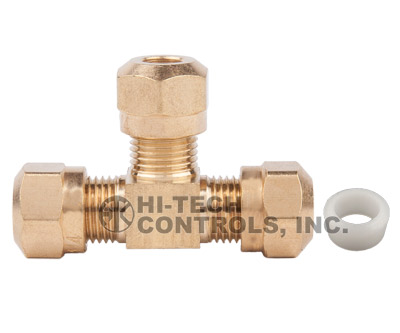

864

Brass Tee Sastrate Compression Sleeve

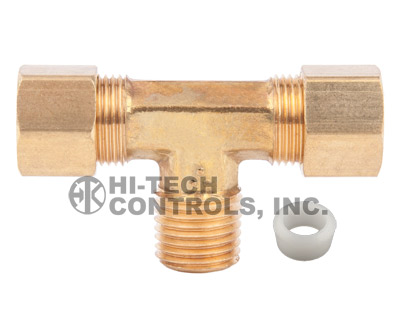

872

Brass Tee With Male Pipe Stastrate sleeve

Category Number	Tube Outer Diameter (inches) x Male Pipe
872A	1/8 X 1/8
872B	3/16 X 1/8
872C	1/4 X 1/8
872CC	1/4 X 1/4
872E	3/8 X 1/8
872EE	3/8 X 1/4
872EEE	3/8 X 3/8
872F	1/2 X 3/8
872FF	1/2 X 1/2
872H	5/8 X 1/2

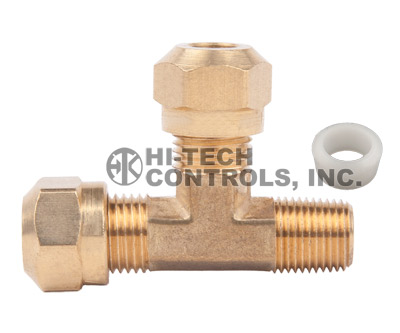

871

Brass Male Run Tee Sastrate Compression Sleeve

Category Number	Tube Outer Diameter (inches)
871A	1/8 X 1/8
871B	3/16 X 1/8
871C	1/4 X 1/8
871CC	1/4 X 1/4
871D	5/16 X 1/8
871DD	5/16 X 1/4
871E	3/8 X 1/8
871EE	3/8 X 1/4
871EEE	3/8 X 3/8
871F	1/2 X 3/8
871FF	1/2 X 1/2
871H	5/8 X 1/2

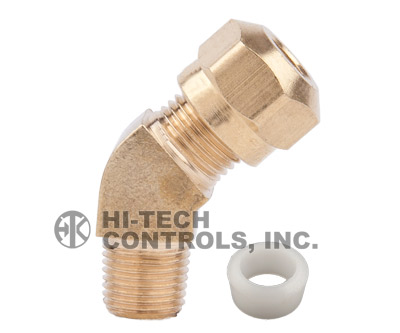

878

Brass 45° Male Elbow Sastrate Compression Sleeve

Assembly Information

Compression Tube Fittings
(Do NOT flare tubing)

To Install:

Slip Tubing through Nut and Sleeve
Insert Tubing into Fitting Up To Shoulder
Tighten Nut - This Action Spins the Sleeve A Component of the Tubing

SAE Flared Tube Fittings

To Install:

Slide Flare Nut on Tubing
Flare Tubing
Screw Flare Nut on Tubing This Seals the Flared End Of Tubing Between the Nut and the Fitting

AIR BRAKE

To Install:

Cut Tubing to Desired Length
Slide Nut & Sleeve on Tubing
Insert Tubing into Fitting and Make Sure It Bottoms On Shoulder
Wrench Tighten Nut.

AIR BRAKE REUSEABLE HOSE

To Install:

Slide Nut on to Hose.
Slide Sleeve on to Hose with Tapered Edge toward Fitting Body.
Bottom Hose into Fitting.
Tighten Nut Until It Contacts Body Hex.
If Reassembling, Do Not Reuse Sleeve.
