Poly-Grasp Brass Fittings for Poly Tubing with Captive Sleeve |
| |
PG60 |
Plastic Sleeve
Show Details
| Category Number |
Poly Tube Outer Diameter |
| PG60C |
1/4 |
| PG60D |
5/16 |
| PG60E |
3/8 |
| PG60F |
1/2 |
|
| |
PG6160 |
Brass Nut & Plastic Sleeve Assembled
Brass nut (#PG6160) contains captive plastic sleeve. Body has builtin brass insert.
Show Details
| Category Number |
Poly Tube Outer Diameter |
| CS61-A* |
1/8 |
| CS61-B* |
3/16 |
| PG6160C |
1/4 |
| PG6160E |
3/8 |
| PG6160F |
1/2 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
| |
PG61 |
Brass Nut
Show Details
| Category Number |
Poly Tube Outer Diameter |
| PG61C |
1/8 |
| PG61D |
3/16 |
| PG61E |
1/4 |
| PG61F |
3/8 |
|
| |
PG62 |
Brass Union
Show Details
| Category Number |
Poly Tube Outer Diameter |
| CS62A* |
1/8 |
| CS62B* |
3/16 |
| PG62C |
1/4 |
| PG62D |
5/16 |
| PG62E |
3/8 |
| PG62F |
1/2 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
 |

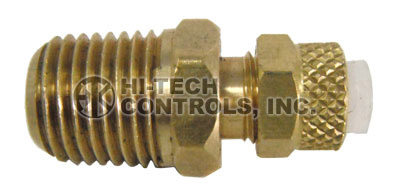

PG68 |
Brass Male Connector
Show Details
| Category Number |
Poly Tube Outer Diameter x Male Pipe |
| CS68A* |
1/8 X 1/8 |
| CS68B* |
3/16 X 1/8 |
| PG68C |
1/4 X 1/8 |
| PG68CC |
1/4 X 1/4 |
| PG68CE |
1/4 X 3/8 |
| PG68D |
5/16 X 1/8 |
| PG68E |
3/8 X 1/8 |
| PG68EE |
3/8 X 1/4 |
| PG68EEE |
3/8 X 3/8 |
| PG68F |
1/2 X 3/8 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
 |

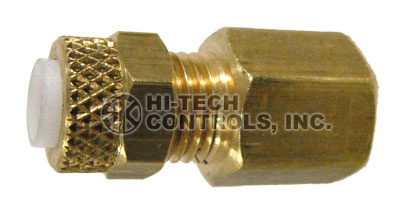

PG66 |
Brass Female Connector
Show Details
| Category Number |
Poly Tube Outer Diameter x Male Pipe |
| CS66A* |
1/8 X 1/8 |
| CS66B* |
3/16 X 1/8 |
| PG66C |
1/4 X 1/8 |
| PG66CC |
1/4 X 1/4 |
| PG66D |
5/16 X 1/8 |
| PG66DD |
5/16 X 1/4 |
| PG66E |
3/8 X 1/8 |
| PG66EE |
3/8 X 1/4 |
| PG66F |
1/2 X 3/8 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
 |

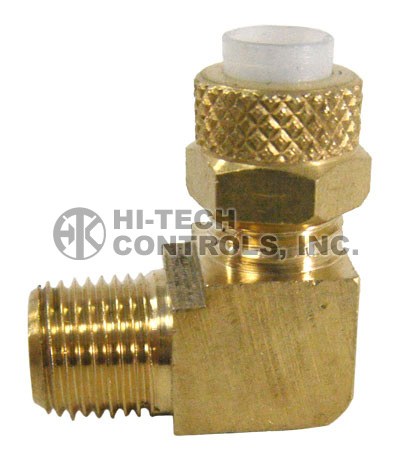

PG69 |
Brass Male 90° Elbow
Show Details
| Category Number |
Poly Tube Outer Diameter x Male Pipe |
| CS69A* |
1/8 X 1/8 |
| CS69B* |
3/16 X 1/8 |
| PG69C |
1/4 X 1/8 |
| PG69CC |
1/4 X 1/4 |
| PG69CE |
1/4 X 3/8 |
| PG69D |
5/16 X 1/8 |
| PG69E |
3/8 X 1/8 |
| PG69EE |
3/8 X 1/4 |
| PG69EEE |
3/8 X 3/8 |
| PG69F |
1/2 X 3/8 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
| |
PG70 |
Brass Female 90° Elbow
Show Details
| Category Number |
Poly Tube Outer Diameter x Male Pipe |
| CS70A* |
1/8 X 1/8 |
| CS70B* |
3/16 X 1/8 |
| PG70C |
1/4 X 1/8 |
| PG70CC |
1/4 X 1/4 |
| PG70EE |
3/8 X 1/4 |
| PG70F |
1/2 X 3/8 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
| |
PG64 |
Brass Tee
Show Details
| Category Number |
Poly Tube Outer Diameter |
| CS64A* |
1/8 |
| CS64B* |
3/16 |
| PG64C |
1/4 |
| PG64D |
5/16 |
| PG64E |
3/8 |
| PG64F |
1/2 |
|
 |

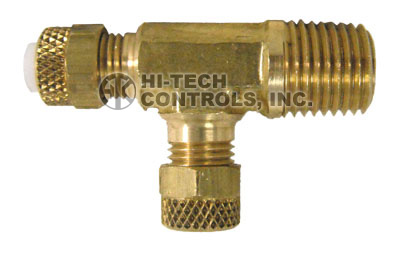

PG71 |
Brass Male Run Tee
Show Details
| Category Number |
Poly Tube Outer Diameter x Male Pipe |
| CS71A* |
1/8 X 1/8 |
| CS71B* |
3/16 X 1/8 |
| PG71C |
1/4 X 1/8 |
| PG71CC |
1/4 X 1/4 |
| PG71D |
5/16 X 1/8 |
| PG71EE |
3/8 X 1/4 |
| PG71F |
1/2 X 3/8 |
| * ITEMS SUPPLIED WITH BRASS CAPTIVE SLEEVE AND NO INSERT |
|
| |
PG72 |
Brass Male Branch Tee
Show Details
| Category Number |
Poly Tube Outer Diameter |
| CS72A* |
1/8 X 1/8 |
| CS72B* |
3/16 X 1/8 |
| PG72C |
1/4 X 1/8 |
| PG72CC |
1/4 X 1/4 |
| PG72D |
5/16 X 1/8 |
| PG72E |
3/8 X 1/8 |
| PG72EE |
3/8 X 1/4 |
| PG72F |
1/2 X 3/8 |
|
| |
PT |
Polyethylene Tubing
Show Details
FDA APPROVED. SOLD IN
100FT COILS (NOT RECOMMENDED
FOR NATURAL GAS)
COLOR: NATURAL
ORDER PER COIL
| Category Number |
Tube O.D. |
Tube I.D. |
Wall Thick |
Max Pressure at 70°F |
| PT100C |
1/4 |
.170 |
.040 |
130 PSI |
| PT100D |
5/16 |
3/16 |
.062 |
130 PSI |
| PT100E |
3/8 |
1/4 |
.062 |
130 PSI |
| PT100F |
1/2 |
3/8 |
.062 |
80 PSI |
| PT100H |
5/8 |
1/2 |
.062 |
70 PSI |
| PT100J |
3/4 |
1/2 |
1/8 |
100 PSI |
|
