Brass Couplings Index

Brass Compression Fittings

Brass Pneumatic Components Sealcon, Inc

	Compression/Double Compression
	Sure Seal "Captive Sleeve" Heavy Duty Brass Fittings
	Stastrate Compression Sleeve Fittings
	Poly-Grasp Brass Fittings for Poly Tubing with Captive Sleeve
	Poly Push Brass Fittings
	Assembly Instructions

Compression Brass Fittings for "Polyethylene Tubing"

Assembled with Loose Plastic Sleeve & Loose Brass Insert

460

Sleeve
-Plastic for Polyetheylene Tubing

461

Brass Insert - Tube Support

Category Number	Tubing Outer Diameter (inches)	Insert Outer Diameter (inches)
461A-80	1/8	.080
461A-0*	1/8	.073
461BS	3/16	.135
461B-80	3/16	.095
461B-0	3/16	.110
461C	1/4	.163
461D	5/16	.187
461DS*	5/16	.232
461E	3/8	.250
461F	1/2	.370
461H	5/8	.470
TH461H*	5/8	.434
461J	3/4	.559
*USE WITH A/B TUBING

462

Brass Union Sleeve

468

Brass Male Connector
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

Category Number	Poly Tube Outer Diameter x Male Pipe (inches)
468C	1/4 X 1/8
468CC	1/4 X 1/4
468D	5/16 X 1/8
468DD	5/16 X 1/4
468E	3/8 X 1/8
468EE	3/8 X 1/4
468EEE	3/8 X 3/8
468EF	3/8 X 1/2
468EJ	3/8 X 3/4
468F	1/2 X 3/8
468FF	1/2 X 1/2
468FJ	1/2 X 3/4
468H	5/8 X 1/2
468HJ	5/8 X 3/4

466

Brass Female Connector

Category Number	Poly Tube Outer Diameter x Female Pipe (inches)
466C	1/4 X 1/8
466CC	1/4 X 1/4
466CE	1/4 X 3/8
466D	5/16 X 1/8
466DD	5/16 X 1/4
466E	3/8 X 1/8
466EE	3/8 X 1/4
466EEE	3/8 X 3/8
466EF	3/8 X 1/2
466EJ	3/8 X 3/4
466F	1/2 X 3/8
466FF	1/2 X 1/2
466FJ	1/2 X 3/4
466H	5/8 X 1/2
466HJ	5/8 X 3/4

478

Brass 45° Male Elbow
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

Category Number	Poly Tube Outer Diameter x Male Pipe (inches)
478C	1/4 X 1/8
478CC	1/4 X 1/4
478D	5/16 X 1/8
478DD	5/16 X 1/4
478E	3/8 X 1/8
478EE	3/8 X 1/4
478EEE	3/8 X 3/8
478F	1/2 X 3/8
478FF	1/2 X 1/2
478H	5/8 X 1/2

465

Brass Union Elbow
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

469

Brass Male Elbow

Category Number	Poly Tube Outer Diameter x Male Pipe (inches)
469C	1/4 X 1/8
469CC	1/4 X 1/4
469CE	1/4 X 3/8
469CF	1/4 X 1/2
469D	5/16 X 1/8
469DD	5/16 X 1/4
469DE	5/16 X 3/8
469DF	5/16 X 1/2
469E	3/8 X 1/8
469EE	3/8 X 1/4
469EEE	3/8 X 3/8
469EF	3/8 X 1/2
469EJ	3/8 X 3/4
469F	1/2 X 3/8
469FC	1/2 X 3/8
469FF	1/2 X 1/2
469FJ	1/2 X 3/4
469H	5/8 X 1/2
469HE	5/8 X 3/8
469HJ	5/8 X 3/4

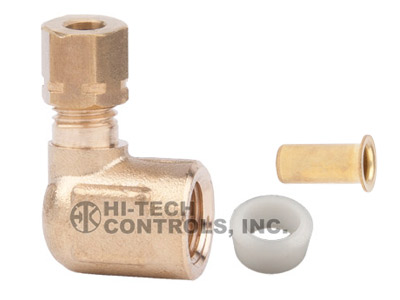

470

Brass Female Elbow
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

Category Number	Poly Tube Outer Diameter x Male Pipe (inches)
470C	1/4 X 1/8
470CC	1/4 X 1/4
470CE	1/4 X 3/8
470CF	1/4 X 1/2
470D	5/16 X 1/8
470DD	5/16 X 1/4
470E	3/8 X 1/8
470EE	3/8 X 1/4
470EEE	3/8 X 3/8
470EF	3/8 X 1/2
470EJ	3/8 X 3/4
470F	1/2 X 3/8
470FC	1/2 X 3/8
470FF	1/2 X 1/2
470FJ	1/2 X 3/4
470H	5/8 X 1/2
470HE	5/8 X 3/8
470HJ	5/8 X 3/4

464

Brass Tee
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

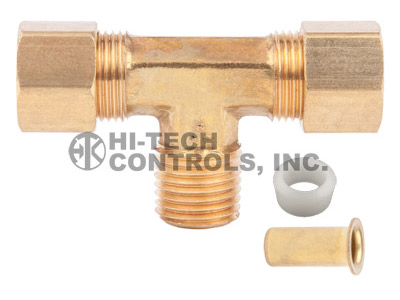

472

Brass Branch Tee
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

Category Number	Poly Tube Outer Diameter x Male Pipe (inches)
472C	1/4 X 1/8
472CC	1/4 X 1/4
472D	5/16 X 1/8
472DD	5/16 X 1/4
472E	3/8 X 1/8
472EE	3/8 X 1/4
472EEE	3/8 X 3/8
472EF	3/8 X 1/2
472FC	1/2 X 1/4
472F	1/2 X 3/8
472FF	1/2 X 1/2
472H	5/8 X 1/2

471

Brass Male Run Tee
-Assembled with LOOSE Plastic sleeve & LOOSE Brass Insert

Category Number	Poly Tube Outer Diameter x Male Pipe (inches)
471C	1/4 X 1/8
471CC	1/4 X 1/4
471D	5/16 X 1/8
471DD	5/16 X 1/4
471E	3/8 X 1/8
471EE	3/8 X 1/4
471EEE	3/8 X 3/8
471F	1/2 X 3/8
471FF	1/2 X 1/2
471H	5/8 X 1/2

Assembly Information

Compression Tube Fittings
(Do NOT flare tubing)

To Install:

Slip Tubing through Nut and Sleeve
Insert Tubing into Fitting Up To Shoulder
Tighten Nut - This Action Spins the Sleeve A Component of the Tubing

SAE Flared Tube Fittings

To Install:

Slide Flare Nut on Tubing
Flare Tubing
Screw Flare Nut on Tubing This Seals the Flared End Of Tubing Between the Nut and the Fitting

AIR BRAKE

To Install:

Cut Tubing to Desired Length
Slide Nut & Sleeve on Tubing
Insert Tubing into Fitting and Make Sure It Bottoms On Shoulder
Wrench Tighten Nut.

AIR BRAKE REUSEABLE HOSE

To Install:

Slide Nut on to Hose.
Slide Sleeve on to Hose with Tapered Edge toward Fitting Body.
Bottom Hose into Fitting.
Tighten Nut Until It Contacts Body Hex.
If Reassembling, Do Not Reuse Sleeve.
