Brass Couplings Index

Brass Compression Fittings

Brass Pneumatic Components Sealcon, Inc

	Compression/Double Compression
	Sure Seal "Captive Sleeve" Heavy Duty Brass Fittings
	Stastrate Compression Sleeve Fittings
	Compression Brass Fittings for "Polyethylene Tubing"
	Poly-Grasp Brass Fittings for Poly Tubing with Captive Sleeve
	Assembly Instructions

Poly Push Brass Fittings

For Use With Polyethylene or Soft Copper Tubing
NOT FOR TRUCK USE
To install: Cut tubing squarely. Insert tubing into fitting until tube bottoms firmly. To remove: hold back release ring and withdraw the tubing. Reusable, connect & disconnect numerous times and get same positive seal. Brass body & insert Buna-N "O" Ring working PSI up to max. PSI of plastic tube. For soft copper tube, max. Of 750 PSI is recommended working temperature of fitting -10º to +200ºF.
Note: Do not use on vinyl or other soft plastic tubing. Not for air brake use.

PP62

Brass Union

Category Number	Tube Outer Diameter
PP62A	1/8
PP62AA	5/32
PP62B	3/16
PP62C	1/4
PP62D	5/16 X 1/8
PP62E	3/8 X 1/8
PP62F	3/8 X 1/4
UNION BULKHEAD
PP62LA	1/8
PP62LAA	5/32
PP62LC	1/4
PP62LE	3/8
PP62LF	1/2

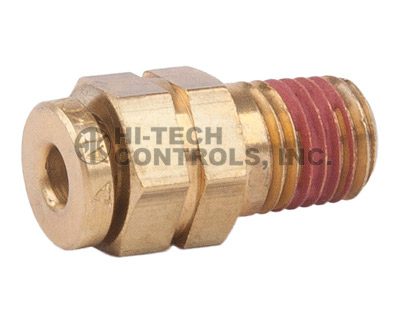

PP68

Brass Male Connector

Category Number	Tube Outer Diameter x Male Pipe
PP68AS	1/8 X 1/16
PP68A	1/8 X 1/8
PP68AA	5/32 X 1/8
PP68AAC	5/32 X 1/4
PP68AAA	5/32X10/32
PP68B	3/16 X 1/8
PP68C	1/4 X 1/8
PP68CC	1/4 X 1/4
PP68CE	1/4 X 3/8
PP68D	5/16 X 1/8
PP68DD	5/16 X 1/4
PP68E	3/8 X 1/8
PP68EE	3/8 X 1/4
PP68EEE	3/8 X 3/8
PP68EF	3/8 X 1/2
PP68FC	1/2 X 1/4
PP68F	1/2 X 3/8
PP68FF	1/2 X 1/2

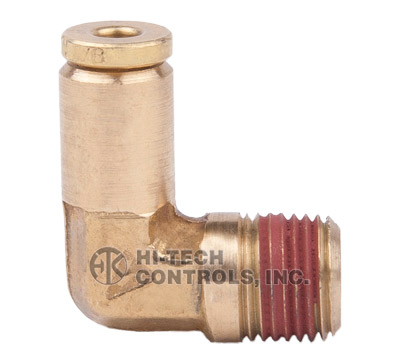

PP69

Brass Male Elbow

Category Number	Tube Outer Diameter x Male Pipe
PP69A	1/8 X 1/8
PP69AA	5/32 X 1/8
PP69B	3/16 X 1/8
PP69C	1/4 X 1/8
PP69CC	1/4 X 1/4
PP69CE	1/4 X 3/8
PP69E	3/8 X 1/8
PP69EE	3/8 X 1/4
PP69EEE	3/8 X 3/8
PP69EF	3/8 X 1/2
PP69FC	1/2 X 1/4
PP69F	1/2 X 3/8
PP69FF	1/2 X 1/2

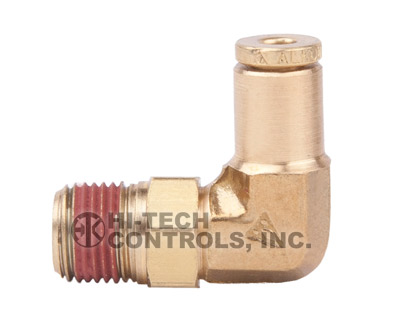

PP69S

Brass Swivel Elbow

Category Number	Tube Outer Diameter x Male Pipe
PP69SA	1/8 X 1/8
PP69SAA	5/32 X 1/8
PP69SAAC	5/32 X 1/4
PP69SB	3/16 X 1/8
PP69SC	1/4 X 1/8
PP69SCC	1/4 X 1/4
PP69SCE	1/4 X 3/8
PP69SD	5/16 X 1/8
PP69SDD	5/16 X 1/4
PP69SDE	5/16 X 3/8
PP69SE	3/8 X 1/8
PP69SEE	3/8 X 1/4
PP69SEEE	3/8 X 3/8
PP69SEF	3/8 X 1/2
PP69SF	1/2 X 3/8
PP69SFF	1/2 X 1/2

PP65

Brass Union Elbow

PP64

Brass Tee

PP71

Brass Male Run Tee

PP71S

Brass Male Run Tee Swivel

PP72

Brass Male Branch Tee

PP72S

Brass Male Branch Tee Swivel

PP66

Brass Female Connector

Assembly Information

Compression Tube Fittings
(Do NOT flare tubing)

To Install:

Slip Tubing through Nut and Sleeve
Insert Tubing into Fitting Up To Shoulder
Tighten Nut - This Action Spins the Sleeve A Component of the Tubing

SAE Flared Tube Fittings

To Install:

Slide Flare Nut on Tubing
Flare Tubing
Screw Flare Nut on Tubing This Seals the Flared End Of Tubing Between the Nut and the Fitting

AIR BRAKE

To Install:

Cut Tubing to Desired Length
Slide Nut & Sleeve on Tubing
Insert Tubing into Fitting and Make Sure It Bottoms On Shoulder
Wrench Tighten Nut.

AIR BRAKE REUSEABLE HOSE

To Install:

Slide Nut on to Hose.
Slide Sleeve on to Hose with Tapered Edge toward Fitting Body.
Bottom Hose into Fitting.
Tighten Nut Until It Contacts Body Hex.
If Reassembling, Do Not Reuse Sleeve.
