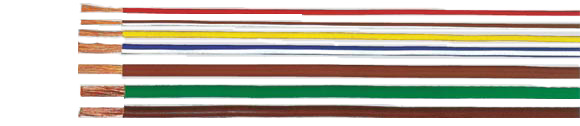

Hi-Tech Controls European Vehicle Cable: FLRY

Type A (FLK-R) / Type B (FLK-D)
Vehicle Cable FLRY Type A (FLK-R) / Type B (FLK-D), RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
FLRY - Type A (FLK-R)
Cross-Sec. mm2 Outer
Diameter
min.-max.
Copper weight
kg/km
Weight kg/km European Part-No.
black white blue orange brown green
0.35 1.2 - 1.3 3.4 4.5 28484 28485 28486 28487 28488 28489
0.5 1.4 - 1.6 4.8 6.6 28495 28496 28497 28498 28499 28500

Cross-Sec. mm2 Outer
Diameter min.-max.
Copper weight
kg/km
Weight kg/km European Part-No.
violet red pink yellow gray
0.35 1.2 - 1.3 3.4 4.5 28490 28491 28492 28493 28494
0.5 1.4 - 1.6 4.8 6.6 28501 28502 28503 28504 28505

FLRY - Type B (FLK-D)
Cross-Sec. mm2 Outer
Diameter min.-max.
Copper weight
kg/km
Weight kg/km European Part-No.
black white blue orange brown green
0.75 1.7 - 1.9 7.2 9.0 28506 28507 28508 28509 28510 28511
1.0 1.9 - 2.1 9.6 11.0 28517 28518 28519 28520 28521 28522
1.5 2.2 - 2.4 14.4 16.0 28528 28529 28530 28531 28532 28533
2.5 2.7 - 3.0 24.0 26.0 28539 28540 28541 28542 28543 28544
4.0 3.4 - 3.7 38.0 42.0 28550 28551 28552 28553 28554 28555
6.0 4.0 - 4.3 58.0 61.0 28561 28562 28563 28564 28565 28566

Cross-Sec. mm2 Outer
Diameter min.-max.
Copper weight
kg/km
Weight kg/km European Part-No.
violet red pink yellow gray
0.75 1.7 - 1.9 7.2 9.0 28512 28513 28514 28515 28516
1.0 1.9 - 2.1 9.6 11.0 28523 28524 28525 28526 28527
1.5 2.2 - 2.4 14.4 16.0 28534 28535 28536 28537 28538
2.5 2.7 - 3.0 24.0 26.0 28545 28546 28547 28548 28549
4.0 3.4 - 3.7 38.0 42.0 28556 28557 28558 28559 28560
6.0 4.0 - 4.3 58.0 61.0 28567 28568 28569 28570 28571
Technical Data European
  • Special PVC conductor insulation
  • Temperature Stability
    (3000 h) -40°C to +105°C
  • Nominal Voltage up to 24 V
  • Test Voltage
    1 kV (effective value)
  • Breakdown Voltage
    5 kV (effective value)
  • Specific Volume Resistance
    Min. 109 Ohm · mm
  • Type A = Conductor make-up symmetrical (1+6+12), number of single wires are odd number; a single wire laying at the center of the cross-section.
Approvals
RoHS
Cable Construction
  • Bare copper conductor, soft annealed electrolytic copper E-Cu58 F21 according to DIN 40500 part 4 (the mechanical requirements valid for unprocessing single wires)
  • Stranded copper conductor bare, conductor make-up as per DIN 72551
    Type A: Conductor make-up symmetrical
    Type B: Conductor make-up unsymmetrical
  • Special PVC conductor insulation
Application
PVC insulated single conductor cables are used for vehicle constructions.
Properties
  • Oil and fuel resistant as per DIN ISO 6722 part 2
  • Special characteristics
    Place and weight saving by using the reduced insulation wall thickness.
  • Requirements and tests
    As per DIN 72551 part 5
Note
  • Indication for order
    Please mention the conductor color and color combination clearly to your order, because a re-acceptance of false ordered articles is impossible.
  • Minimum quantities
    Per cross-section and color combination:
    2-colour
    0.5 to 2.5 mm² = 3 km
    4.0 to 25 mm² = 1 km
    3-colour
    0.5 to 2.5 mm² = 5 km
    4.0 to 25 mm² = 3 km
  • For three-color combinations we produce only on request.
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Minimum Quantities
Per cross-section and color combination:
  2-color 3-color
0.35 to 2.5 mm2 3 km 5 km
4.0 to 6.0 mm2 1 km 3 km
Further types of vehicle cables on request:

FLYW FLSY FL6G FLYZ FLYDY FL4G11Y
FLX FLYY FL4G FLYYF FLRYDY FL4GYW
FLYK FLYTL FL7Y FZLY FLRYBDY
FLRY   FL6Y
Cable Accessories
  • Coming Soon!
