Color Code according to DIN VDE 02931) (old)

Multi Conductor Flexible Cables
Number of conductors Conductors with grounding
(green-yellow conductor) -J
Conductors without grounding
(green-yellow conductor) -O
2 - brown/blue
3 green-yellow/brown/blue black/blue/brown
4 green-yellow/back/blue/brown black/blue/brown/black
5 green-yellow/back/blue/brown/black black/blue/brown/black/black
  6+ green-yellow/others black with white numbering black with white numbering

Multi Conductor Cables for Fixed Installation
Number of conductors Conductors with grounding
(green-yellow conductor) -J
Conductors without grounding (green-yellow conductor) -O with protective conductor
2 green-yellow/black* black/blue black/blue
3 green-yellow/black/blue black/blue/brown black/blue/brown
4 green-yellow/black/blue/brown black/blue/brown/black black/blue/brown/black
5 green-yellow/black/blue/brown/ black black/blue/brown/black/black -
  6+ green-yellow/others black with white numbering black with white numbering black with white numbering

* This type is acc. to DIN VDE 0100 part 540, table 2 valid only for copper cross-section of 10 mm² or more or Aluminum 16 mm²

Color Code according to DIN VDE 0293-3082) (new)

Number of conductors Conductors with grounding
(green-yellow conductor) -J
Conductors without grounding
(green-yellow conductor) -O
2 - brown/blue
3 green-yellow/brown/blue brown/black/gray
  33) - blue/brown/black
4 green-yellow/brown/black/gray blue/brown/black/gray
  43) green-yellow/blue/brown/black -
5 green-yellow/blue/brown/black/gray blue/brown/black/gray/black
  6+ green-yellow/others black with white numbering black with white numbering
1) Coding in accordance with VDE 0293: 1990-01 / transitional periods until 1 April 2006, beyond that only the coding for 6 or more conductors will continue to exist.
2) Coding in accordance with VDE 0293-308 (valid as of 1 January 2003).
3) Only for certain applications.

Conductor Marking with Numbering (in direction of longitudinal axis)
Height and gap of numbers
Conductor nominal Ø mm e* in mm h in mm i in mm d in mm
D ≤ 2.4 ≥ 0.6 ≥ 2.3 ca. 2 ≤ 50
2.4 < D ≤ 5.0 ≥ 1.2 ≥ 3.2 ca. 3 ≤ 50
5.0 < D ≥ 1.6 ≥ 4.6 ca. 4 ≤ 50
*) when the number in only 1, the smallest width is half of the given dimension to this column.

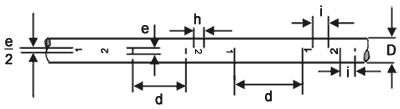

Conductor Marking with Numbering (in direction of longitudinal axis)
e: width of number
h: height of number
i : gap between two successive numbers and between number and dash
d: gap between two successive numbers
