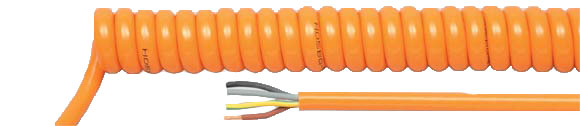

Hi-Tech Controls European Spiral Cables: PUR Spiral Cables Orange


PUR Spiral Cables Orange, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
AWG Selection
18
18
17
17
16
16
14
14
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded (mm) Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km
AWG
85221  PUR Spiral Cables Orange 2X0.75 300 6.5 23.0 59.0 18
85223  PUR Spiral Cables Orange 2X0.75 500 6.5 23.0 77.8 18
85226  PUR Spiral Cables Orange 2X0.75 1000 6.5 23.0 149.8 18
85229  PUR Spiral Cables Orange 2X0.75 1500 6.5 23.0 221.8 18
85236  PUR Spiral Cables Orange 2X0.75 3000 6.5 23.0 437.8 18
85238  PUR Spiral Cables Orange 3X0.75 300 7.1 25.2 73.5 18
85240  PUR Spiral Cables Orange 3X0.75 500 7.1 25.2 116.7 18
85243  PUR Spiral Cables Orange 3X0.75 1000 7.1 25.2 224.7 18
85246  PUR Spiral Cables Orange 3X0.75 1500 7.1 25.2 332.6 18
85253  PUR Spiral Cables Orange 3X0.75 3000 7.1 25.2 656.6 18
85255  PUR Spiral Cables Orange 4X0.75 300 7.9 28.8 98.6 18
85257  PUR Spiral Cables Orange 4X0.75 500 7.9 28.8 156.6 18
85260  PUR Spiral Cables Orange 4X0.75 1000 7.9 28.8 301.6 18
85263  PUR Spiral Cables Orange 4X0.75 1500 7.9 28.8 446.6 18
85270  PUR Spiral Cables Orange 4X0.75 3000 7.9 28.8 881.6 18
85272  PUR Spiral Cables Orange 5X0.75 300 8.6 31.2 122.4 18
85274  PUR Spiral Cables Orange 5X0.75 500 8.6 31.2 194.4 18
85277  PUR Spiral Cables Orange 5X0.75 1000 8.6 31.2 374.4 18
85280  PUR Spiral Cables Orange 5X0.75 1500 8.6 31.2 554.4 18
85287  PUR Spiral Cables Orange 5X0.75 3000 8.6 31.2 1094.4 18
85289  PUR Spiral Cables Orange 2X1.0 300 6.8 24.6 65.3 17
85291  PUR Spiral Cables Orange 2X1.0 500 6.8 24.6 103.7 17
85294  PUR Spiral Cables Orange 2X1.0 1000 6.8 24.6 199.7 17
85297  PUR Spiral Cables Orange 2X1.0 1500 6.8 24.6 295.7 17
85304  PUR Spiral Cables Orange 2X1.0 3000 6.8 24.6 583.7 17
85306  PUR Spiral Cables Orange 3X1.0 300 7.2 26.4 98.6 17
85308  PUR Spiral Cables Orange 3X1.0 500 7.2 26.4 156.6 17
85311  PUR Spiral Cables Orange 3X1.0 1000 7.2 26.4 301.6 17
85314  PUR Spiral Cables Orange 3X1.0 1500 7.2 26.4 446.6 17
85321  PUR Spiral Cables Orange 3X1.0 3000 7.2 26.4 881.6 17
85323  PUR Spiral Cables Orange 4X1.0 300 7.8 28.6 130.6 17
85325  PUR Spiral Cables Orange 4X1.0 500 7.8 28.6 207.4 17
85328  PUR Spiral Cables Orange 4X1.0 1000 7.8 28.6 399.4 17
85331  PUR Spiral Cables Orange 4X1.0 1500 7.8 28.6 591.4 17
85338  PUR Spiral Cables Orange 4X1.0 3000 7.8 28.6 1167.4 17
85340  PUR Spiral Cables Orange 5X1.0 300 9.0 32.0 163.2 17
85342  PUR Spiral Cables Orange 5X1.0 500 9.0 32.0 259.2 17
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded (mm) Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km
AWG
85345  PUR Spiral Cables Orange 5X1.0 1000 9.0 32.0 499.2 17
85348  PUR Spiral Cables Orange 5X1.0 1500 9.0 32.0 739.2 17
85355  PUR Spiral Cables Orange 5X1.0 3000 9.0 32.0 1459.2 17
85357  PUR Spiral Cables Orange 2X1.5 300 8.5 30.0 98.6 16
85359  PUR Spiral Cables Orange 2X1.5 500 8.5 30.0 156.6 16
85362  PUR Spiral Cables Orange 2X1.5 1000 8.5 30.0 301.6 16
85365  PUR Spiral Cables Orange 2X1.5 1500 8.5 30.0 446.6 16
85372  PUR Spiral Cables Orange 2X1.5 3000 8.5 30.0 881.6 16
85374  PUR Spiral Cables Orange 3X1.5 300 8.9 32.8 146.2 16
85376  PUR Spiral Cables Orange 3X 1.5 500 8.9 32.8 232.2 16
85379  PUR Spiral Cables Orange 3X1.5 1000 8.9 32.8 447.2 16
85382  PUR Spiral Cables Orange 3X 1.5 1500 8.9 32.8 662.2 16
85389  PUR Spiral Cables Orange 3X 1.5 3000 8.9 32.8 1307.2 16
85408  PUR Spiral Cables Orange 5X 1.5 300 10.9 38.8 244.8 16
85410  PUR Spiral Cables Orange 5X1.5 500 10.9 38.8 388.8 16
85413  PUR Spiral Cables Orange 5X 1.5 1000 10.9 38.8 748.8 16
85416  PUR Spiral Cables Orange 5X 1.5 1500 10.9 38.8 1108.8 16
85423  PUR Spiral Cables Orange 5X 1.5 3000 10.9 38.8 2188.8 16
85425  PUR Spiral Cables Orange 7X1.5 300 12.6 46.4 343.4 16
85427  PUR Spiral Cables Orange 7X 1.5 500 12.6 46.4 545.4 16
85430  PUR Spiral Cables Orange 7X1.5 1000 12.6 46.4 1050.4 16
85433  PUR Spiral Cables Orange 7X 1.5 1500 12.6 46.4 1555.4 16
85440  PUR Spiral Cables Orange 7X1.5 3000 12.6 46.4 3070.4 16
85442  PUR Spiral Cables Orange 12X1.5 300 16.6 65.2 588.2 16
85444  PUR Spiral Cables Orange 12X 1.5 500 16.6 65.2 934.2 16
85447  PUR Spiral Cables Orange 12X 1.5 1000 16.6 65.2 1799.2 16
85450  PUR Spiral Cables Orange 12X 1.5 1500 16.6 65.2 2664.2 16
85457  PUR Spiral Cables Orange 12X1.5 3000 16.6 65.2 5259.2 16
85459  PUR Spiral Cables Orange 3X2.5 300 10.6 38.2 244.8 14
85461  PUR Spiral Cables Orange 3X2.5 500 10.6 38.2 388.8 14
85464  PUR Spiral Cables Orange 3X2.5 1000 10.6 38.2 748.8 14
85467  PUR Spiral Cables Orange 3X2.5 1500 10.6 38.2 1108.8 14
85474  PUR Spiral Cables Orange 3X2.5 3000 10.6 38.2 2188.8 14
85493  PUR Spiral Cables Orange 5X2.5 300 13.2 48.4 408.0 14
85495  PUR Spiral Cables Orange 5X2.5 500 13.2 48.4 648.0 14
85498  PUR Spiral Cables Orange 5X2.5 1000 13.2 48.4 1248.0 14
85501  PUR Spiral Cables Orange 5X2.5 1500 13.2 48.4 1848.0 14
85508  PUR Spiral Cables Orange 5X2.5 3000 13.2 48.4 3648.0 14
Technical Data European
  • Temperature range
    -25°C to +70°C (-13°F to +158°F)
  • Nominal voltage
    H05BQ-F 300/500 V (up to 1 mm2)
    H07BQ-F 450/750 V (from 1.5 mm2)
  • Test voltage 2000/2500 V
  • Expansion ratio 1:4
    straight ends 200/200
Approvals
RoHS
Cable Construction
  • Plain copper conductor, fine wire stranded
  • EPDM conductor insulation
  • VDE-approved cable
  • PUR outer jacket
  • Jacket color: Orange
Application
  • Machine Construction
  • Electrical Tools
  • Building Industry
  • Handling Equipment
  • Entertainment Equipment
Properties
  • Not available
Note
  • AWG sizes are approximately equivalent values. The actual cross section is in mm2
  • On request closed spiral lengths up to max. 5000 mm possible.
Cable Accessories
  • Coming Soon!
