Hi-Tech Controls European Spiral Cables:

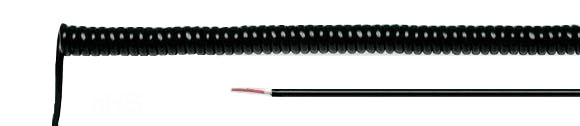

PUR Electronic Spiral Cables - Unshielded


PUR Electronic Spiral Cables - Unshielded, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
AWG Selection
26
26
24
24
20
20
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded (mm) Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km
AWG
85550  PUR Electronic - Unshielded 2X0.14 300 3.5 13.0 9.2 26
85551  PUR Electronic - Unshielded 2X0.14 400 3.5 13.0 11.9 26
85552  PUR Electronic - Unshielded 2X0.14 500 3.5 13.0 15.6 26
85555  PUR Electronic - Unshielded 2X0.14 1000 3.5 13.0 28.1 26
85566  PUR Electronic - Unshielded 4X0.14 300 4.0 14.0 18.4 26
85567  PUR Electronic - Unshielded 4X0.14 400 4.0 14.0 23.8 26
85568  PUR Electronic - Unshielded 4X0.14 500 4.0 14.0 29.2 26
85571  PUR Electronic - Unshielded 4X0.14 1000 4.0 14.0 56.2 26
85574  PUR Electronic - Unshielded 5X0.14 300 4.4 15.8 22.8 26
85575  PUR Electronic - Unshielded 5X0.14 400 4.4 15.8 29.5 26
85576  PUR Electronic - Unshielded 5X0.14 500 4.4 15.8 36.2 26
85579  PUR Electronic - Unshielded 5X0.14 1000 4.4 15.8 69.7 26
85582  PUR Electronic - Unshielded 6X0.14 300 4.9 17.8 27.5 26
85583  PUR Electronic - Unshielded 6X0.14 400 4.9 17.8 36.7 26
85584  PUR Electronic - Unshielded 6X0.14 500 4.9 17.8 43.8 26
85587  PUR Electronic - Unshielded 6X0.14 1000 4.9 17.8 84.2 26
85590  PUR Electronic - Unshielded 7X0.14 300 5.2 18.4 32.0 26
85591  PUR Electronic - Unshielded 7X0.14 400 5.2 18.4 42.4 26
85592  PUR Electronic - Unshielded 7X0.14 500 5.2 18.4 50.8 26
85595  PUR Electronic - Unshielded 7X0.14 1000 5.2 18.4 97.8 26
85598  PUR Electronic - Unshielded 8X0.14 300 5.4 19.8 36.7 26
85599  PUR Electronic - Unshielded 8X0.14 400 5.4 19.8 47.5 26
85600  PUR Electronic - Unshielded 8X0.14 500 5.4 19.8 58.3 26
85603  PUR Electronic - Unshielded 8X0.14 1000 5.4 19.8 112.3 26
85638  PUR Electronic - Unshielded 2X0.25 300 3.9 13.8 16.3 24
85639  PUR Electronic - Unshielded 2X0.25 400 3.9 13.8 21.1 24
85640  PUR Electronic - Unshielded 2X0.25 500 3.9 13.8 25.9 24
85643  PUR Electronic - Unshielded 2X0.25 1000 3.9 13.8 49.9 24
85654  PUR Electronic - Unshielded 4X0.25 300 4.6 17.2 36.7 24
85655  PUR Electronic - Unshielded 4X0.25 400 4.6 17.2 42.2 24
85656  PUR Electronic - Unshielded 4X0.25 500 4.6 17.2 51.8 24
85659  PUR Electronic - Unshielded 4X0.25 1000 4.6 17.2 99.8 24
85662  PUR Electronic - Unshielded 5X0.25 300 5.4 19.8 40.8 24
European Part-No. Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded (mm) Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km
AWG
85663  PUR Electronic - Unshielded 5X0.25 400 5.4 19.8 52.8 24
85664  PUR Electronic - Unshielded 5X0.25 500 5.4 19.8 64.8 24
85667  PUR Electronic - Unshielded 5X0.25 1000 5.4 19.8 124.8 24
85670  PUR Electronic - Unshielded 6X0.25 300 5.5 20.0 48.9 24
85671  PUR Electronic - Unshielded 6X0.25 400 5.5 20.0 63.4 24
85672  PUR Electronic - Unshielded 6X0.25 500 5.5 20.0 77.8 24
85675  PUR Electronic - Unshielded 6X0.25 1000 5.5 20.0 149.8 24
85686  PUR Electronic - Unshielded 8X0.25 300 6.4 23.8 65.3 24
85687  PUR Electronic - Unshielded 8X0.25 400 6.4 23.8 84.5 24
85688  PUR Electronic - Unshielded 8X0.25 500 6.4 23.8 103.7 24
85691  PUR Electronic - Unshielded 8X0.25 1000 6.4 23.8 199.7 24
85702  PUR Electronic - Unshielded 12X0.25 300 6.9 24.8 97.9 24
85703  PUR Electronic - Unshielded 12X0.25 400 6.9 24.8 126.7 24
85704  PUR Electronic - Unshielded 12X0.25 500 6.9 24.8 155.5 24
85707  PUR Electronic - Unshielded 12X0.25 1000 6.9 24.8 299.5 24
85726  PUR Electronic - Unshielded 2X0.5 300 4.6 16.2 32.6 20
85727  PUR Electronic - Unshielded 2X0.5 400 4.6 16.2 42.3 20
85728  PUR Electronic - Unshielded 2X0.5 500 4.6 16.2 51.8 20
85731  PUR Electronic - Unshielded 2X0.5 1000 4.6 16.2 99.8 20
85742  PUR Electronic - Unshielded 4X0.5 300 5.0 18.0 65.3 20
85743  PUR Electronic - Unshielded 4X0.5 400 5.0 18.0 84.5 20
85744  PUR Electronic - Unshielded 4X0.5 500 5.0 18.0 103.7 20
85747  PUR Electronic - Unshielded 4X0.5 1000 5.0 18.0 201.8 20
85758  PUR Electronic - Unshielded 6X0.5 300 6.2 22.4 97.9 20
85759  PUR Electronic - Unshielded 6X0.5 400 6.2 22.4 126.7 20
85760  PUR Electronic - Unshielded 6X0.5 500 6.2 22.4 155.5 20
85763  PUR Electronic - Unshielded 6X0.5 1000 6.2 22.4 299.5 20
85774  PUR Electronic - Unshielded 8X0.5 300 7.4 26.8 130.6 20
85775  PUR Electronic - Unshielded 8X0.5 400 7.4 26.8 169.0 20
85776  PUR Electronic - Unshielded 8X0.5 500 7.4 26.8

207.4

20
85779  PUR Electronic - Unshielded 8X0.5 1000 7.4 26.8 399.4 20
85790  PUR Electronic - Unshielded 12X0.5 300 8.2 29.4 195.8 20
85791  PUR Electronic - Unshielded 12X0.5 400 8.2 29.4 254.3 20
85792  PUR Electronic - Unshielded 12X0.5 500 8.2 29.4 311.1 20
85795  PUR Electronic - Unshielded 12X0.5 1000 8.2 29.4 599.1 20
Technical Data European
  • Temperature Range
    -25°C to +70°C (-13°F to +158°F)
  • Nominal Voltage
    300 V (up to 0.14 mm2)
    500 V (from 0.25 mm2)
  • Test Voltage 2000 V
  • Expansion Ratio 1:4
    straight ends 200/200
Approvals
RoHS
Cable Construction
  • Bare copper, fine wire conductor to VDE 0295 cl. 6
  • TPE-E conductor insulation
  • Conductor identification to DIN 47100
  • Conductors stranded in layers
  • PUR outer jacket
  • Color: Black
Application
Control technology use
Properties
  • Not Available
Note
  • AWG sizes are approximately equivalent values. The actual cross section is in mm2
  • On request closed spiral lengths up to max. 5000 mm possible.
Cable Accessories
  • Coming Soon!
