Temperature Range Flexing
-35°C to +90°C (-31°F to +194°F)
Fixed Installation
-45°C to +120°C (-49°F to +248°F)
Short-circuit temperature
+250°C(+482°F )
Nominal Voltage U0/U 0,6/1 kV (AC)
U0/U0,9/1,8 kV (DC)
A.C. Test Voltage, 50 Hz
3000 V
Minimum Bending Radius fixed installation for cable ø
to 10 mm 3 x cable ø
> 10 mm 4 x cable ø flexing for cable �
to 10 mm 5 x cable �
> 10 mm 6 x cable �
Approvals
Cable
Construction
Tinned copper, fine wire conductors, conform to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
Core insulation from Polyolefin Copyolymer, cross-linked

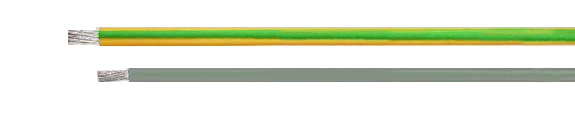

Jacket Color gray or green-yellow
Application
HELUTRAIN® 3 GKW train cable are Halogen-free and suitable for fixed and protected installation in rough environmental conditions inside and outside of rail vehicles. For connecting fixed and moving parts. Due to the flexibility and the small outer diameter suitable for fixed installation in small bending radii.
Properties
Flame test to VDE 0482 part 266-2, BS 4066 part 3/ DIN EN 50266-2/ IEC
60332-3 (conforms to DIN VDE 0472 Teil 804 test method C)
Flame retardant to DIN VDE 0482-331-1-2, DIN EN 60332-1-2, IEC 60332-1
Corrosiveness of combustion gases to VDE 0482 part 267/ DIN EN 50267-2-2/ IEC 60754-2 (conforms to DIN VDE 0472 part 813)
Halogen-free to VDE 0482 part 267/ DIN EN 50267-2-1/ IEC 60754-1 (conforms to DIN VDE 0472 part 815)
Smoke density to VDE 0482 part 268-1 u. 2, test method C, IEC
61034-1/61034-2, HD 606 and BS 7622 part 1 and 2 (conforms to DIN VDE 0472 part 816)
Oil- and gasoline resistant to
EN 50305
Ozon resistant to EN 50305
Low fire load (DIN 51900)
No fluor (EN 60684-2)
Resistant to mechanical influences in rough environmental conditions
Good chemical durability with simultaneous high fire safety
Reduction of toxic combustion gases and the spread of the fire source in case of fire increases protection against personal injury and property damage
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
Note
The product conforms to the EG Low-Voltage Directive 2006/95/EG.
