Hi-Tech Controls European Servo, Feedback & Motor Cable:
ROBOFLEX 156-flat

PUR, Flame Retardant, Halogen-Free, for Torsion Stress

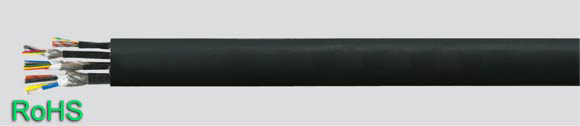

ROBOFLEX 156-flat, PUR, flame retardant, halogen-free, for torsion stress, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
78499 ROBOFLEX 156-flat (4X1.5 + 12X0.15 + 3X2X0.15 + 10X0.15) 7.2 128.6 200.0 16
Technical Data European
  • Special TPE-E/PUR robot cable adapted to DIN VDE 0245, 0250, 0281, 0282
  • Temperature Range
    Flexing
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    Up to 0.34 mm² 350 V
    0.5 mm² an greater 300/500 V
  • Test Voltage
    Up to 0.5 mm² 1500 V
    0.5 mm² and greater 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Max. Torsion Angle
    ±360°/meter
  • Mutual Capacitance (signal conductors)
    Conductor/conductor approx. 100 nF/km
    Conductor/shielding approx. 120 nF/km
  • Minimum Bending Radius
    Approx. 15x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Tinned copper conductor, 19x0.32/1.5 mm²,
    19x0.102/0.15 mm²
  • 4 stranded conductors 1.5 mm²
    Shield of tinned copper braid
    TPE-E jacket, black
  • 12 conductors 0.15 mm² stranded together
    Shield of tinned copper braid
    TPE-E jacket, black
  • 6 conductors 0.15 mm² stranded in paired
    Shield of tinned copper braid
    TPE-E jacket, black
  • 10 stranded conductors 0.15 mm²
    Shield of tinned copper braid
    Black TPE-E jacket
  • Over the 4 elements in parallel PUR jacket
  • Outer jacket color: Black
Application
These cables are specially designed for combined torsion and bending stresses. They are employed both for power supply and for the transmission of control and monitoring signals.
Roboflex cables are used in assembly and welding robots, in handling and automation centers, in transport and conveyor equipment, and on turntables and swivel tables. In other words, anywhere where there is no defined cable routing with only alternating bending cycles in one plane, such as in energy supply chains, for example.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • The smooth, very high quality conductor insulation, together with the special threading lay and the sliding wrapper ensure a long service life under combined bending and torsion stress
  • PUR jacket, matte, low adhesion, flame retardant
Note
  • N/A
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
