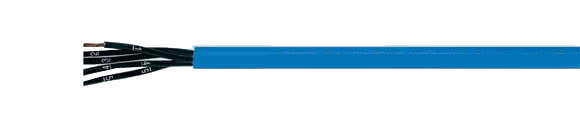

Control Cable: OZ-BL

Outer Jacket Blue, Intrinsic Safety, Flexible

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European  , European   OZ-BL  , Blue Outer Jacket, Intrinsic Safety, Flexible, Intrinsically Safe Cable, EMI Preferred Type
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
14001 OZ-BL 2X0.75 5.3 14.4 46.0 18
14002 OZ-BL 3X0.75 5.6 21.6 54.0 18
14003 OZ-BL 4X0.75 6.3 29.0 66.0 18
14004 OZ-BL 5X0.75 6.9 36.0 80.0 18
14075 OZ-BL 7X0.75 7.5 52.0 110.0 18
14005 OZ-BL 8X0.75 8.2 58.0 130.0 18
14076 OZ-BL 12X0.75 9.8 88.0 179.0 18
14006 OZ-BL 18X0.75 12.2 130.0 257.0 18
14007 OZ-BL 25X0.75 14.3 180.0 365.0 18
14008 OZ-BL 30X0.75 15.3 215.0 448.0 18
14009 OZ-BL 34X0.75 16.7 245.0 510.0 18
14010 OZ-BL 41X0.75 18.0 298.0 607.0 18
14011 OZ-BL 2X1 5.6 19.0 60.0 17
14012 OZ-BL 3X1 5.9 29.0 72.0 17
14013 OZ-BL 4X1 6.6 38.0 86.0 17
14014 OZ-BL 5X1 7.3 48.0 104.0 17
14015 OZ-BL 7X1 8.1 67.0 141.0 17
14016 OZ-BL 12X1 10.4 115.0 230.0 17
14017 OZ-BL 18X1 12.9 173.0 343.0 17
14018 OZ-BL 25X1 15.4 240.0 485.0 17
14019 OZ-BL 2X1.5 6.4 29.0 70.0 16
14020 OZ-BL 3X1.5 6.8 43.0

90.0

16
14021 OZ-BL 4X1.5 7.4 58.0 109.0 16
14022 OZ-BL 5X1.5 8.3 72.0 131.0 16
14023 OZ-BL 7X1.5 9.2 101.0 184.0 16
14024 OZ-BL 12X1.5 12.0 173.0 309.0 16
14025 OZ-BL 18X1.5 14.6 259.0 440.0 16
14026 OZ-BL 25X1.5 17.4 360.0 620.0 16
14027 OZ-BL 30X1.5 18.6 440.0 842.0 16
14100 OZ-BL 3X2.5 8.3 72.0 148.0 14
14101 OZ-BL 4X2.5 9.2 96.0 178.0 14
14102 OZ-BL 5X2.5 10.1 120.0 221.0 14
Technical Data
  • Control cable, special PVC with blue outer jacket for hazardous areas to hazard type -i- (=intrinsically safe)
  • For intrinsically safe installation marking as per DIN EN 60079-14 and IEC 60079-14 section 12.2.2 (VDE 0165 part 1)
  • Temperature Range
    Flexing
    -15°C to +80°C (+59°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    min. 20 MOhm x km
  • Mutual Capacitance
    conductor/conductor approx. 120 nF/km
  • Inductance approx. 0.68 mH/km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE RoHS PCT
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Black conductors with white continuous figure imprint to DIN VDE 0293 without earth conductor
  • Conductors stranded in layers with optimal lay-length
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1 and HD 21.1
  • Color: Blue (RAL 5015)
Application

For hazardous areas the cables with special marking (blue) (hazard type -i-) used as flexible control and measuring cables to meet the requirements for the installation of electrical apparatus. These installations are not grounded and require a separate power circuit. Those cables are not suitable for underground laying.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • For underground laying use NYY with blue outer jacket
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
