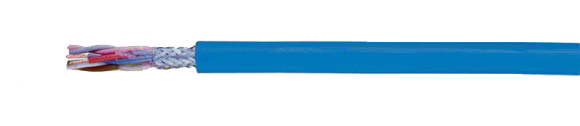

Control Cable: OB-BL-PAAR-CY

Outer Jacket Blue, Intrinsic Safety, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European   OB-BL-PAAR-CY, EMC (EMI Preferred Type), Blue Outer Jacket, Intrinsic Safety, Intrinsically Safe Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
14077 OB-BL-PAAR-CY 2X2X0.5 7.8 47.0 89.0 20
14078 OB-BL-PAAR-CY 3X2X0.5 8.2 67.0 104.0 20
14079 OB-BL-PAAR-CY 4X2X0.5 9.0 80.0 126.0 20
14080 OB-BL-PAAR-CY 6X2X0.5 10.6 108.0 171.0 20
14081 OB-BL-PAAR-CY 8X2X0.5 12.3 129.0 251.0 20
14082 OB-BL-PAAR-CY 10X2X0.5 13.5 172.0 282.0 20
14083 OB-BL-PAAR-CY 12X2X0.5 14.4 235.0 261.0 20
14084 OB-BL-PAAR-CY 16X2X0.5 16.3 301.0 445.0 20
14085 OB-BL-PAAR-CY 20X2X0.5 17.7 343.0 525.0 20
14086 OB-BL-PAAR-CY 24X2X0.5 19.3 394.0 590.0 20
14087 OB-BL-PAAR-CY 25X2X0.5 19.7 406.0 622.0 20
14089 OB-BL-PAAR-CY 2X2X0.75 8.4 60.0 105.0 18
14090 OB-BL-PAAR-CY 3X2X0.75 9.0 80.0 128.0 18
14091 OB-BL-PAAR-CY 4X2X0.75 9.8 110.0 156.0 18
14092 OB-BL-PAAR-CY 6X2X0.75 12.1 142.0 216.0 18
14093 OB-BL-PAAR-CY 8X2X0.75 13.4 200.0 309.0 18
14094 OB-BL-PAAR-CY 10X2X0.75 15.1 238.0 355.0 18
14095 OB-BL-PAAR-CY 12X2X0.75 15.8 270.0 405.0 18
14096 OB-BL-PAAR-CY 16X2X0.75 18.0 342.0 560.0 18
14097 OB-BL-PAAR-CY 20X2X0.75 19.2 369.0 671.0 18
14098 OB-BL-PAAR-CY 24X2X0.75 21.3 451.0 795.0 18
14099 OB-BL-PAAR-CY 25X2X0.75 21.8 461.0 803.0 18
Technical Data
  • Special PVC control cable with blue outer jacket for hazardous areas to hazard type -i- for intrinsically safe installation according to DIN EN 60079-14 and IEC 60079-14 section 12.2.2 (VDE 0165 part 1)
  • Conductor Resistance
    At 0.5 mm² 37.8 Ohm/km
    At 0.75 mm² 25.3 Ohm/km
  • Temperature Range
    Flexing -5°C to +80°C
    Fixed Installation -30°C to +80°C
  • Nominal Voltage 900 V
    (not for power installation)
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shielding 1000 V
  • Breakdown Voltage min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Mutual Capacitance
    Conductor/conductor approx. 105 nF/km
    Conductor/shielding approx. 145 nF/km
  • Inductance
    Approx. 0.68 mH/km
  • Characteristic Impedance
    Approx. 80 Ohm
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSCE PCT RoHS
Cable Construction
  • Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation YI2, to DIN VDE 0207 part 4
  • Conductors color coded according to DIN 47100
  • Conductors twisted in pairs
  • Pairs stranded in layers with optimal lay-length
  • Foil taped
  • Tinned copper braided shielding, approx. 80% coverage
  • Special PVC outer jacket YM2, to DIN VDE 0207 part 5
  • Color blue RAL 5015
Application

For hazardous areas this flexible control cable has been constructed for closed circuit systems in accordance with VDE 0165 part 1, part 12.2.2.6, which covers the requirements for the special marking (blue) (hazard type-i-). The paired construction and the copper shielding afford a good protection against electrical interference and ensure the transmission of data signals.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Extensively oil resistant
    Chemical Resistance - see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
