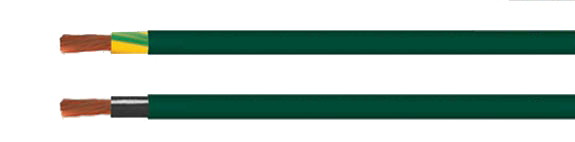

Control Cable: MULTISPEED® 600-PUR -J/-O

Special Single Conductors for Drag Chains, Halogen-Free

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls,  - MULTISPEED 600-PUR –J/-O, Halogen-Free, Special Single Conductors for Drag Chains, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
25888 MULTISPEED 600-PUR-J 1G6 7.2 58.0 80.0 10
25269 MULTISPEED 600-PUR-O 1X6 7.2 58.0 80.0 10
25889 MULTISPEED 600-PUR-J 1G10 8.4 96.0 130.0 8
25270 MULTISPEED 600-PUR-O 1X10 8.4 96.0 130.0 8
25890 MULTISPEED 600-PUR-J 1G16 9.5 154.0 181.0 6
25271 MULTISPEED 600-PUR-O 1X16 9.5 154.0 181.0 6
25891 MULTISPEED 600-PUR-J 1G25 11.0 240.0 274.0 4
25272 MULTISPEED 600-PUR-O 1X25 11.0 240.0 274.0 4
25892 MULTISPEED 600-PUR-J 1G35 13.0 336.0 398.0 2
25273 MULTISPEED 600-PUR-O 1X35 13.0 336.0 398.0 2
25893 MULTISPEED 600-PUR-J 1G50 15.4 480.0 529.0 1
25274 MULTISPEED 600-PUR-O 1X50 15.4 480.0 529.0 1
25894 MULTISPEED 600-PUR-J 1G70 17.2 672.0 717.0 2/0
25275 MULTISPEED 600-PUR-O 1X70 17.2 672.0 717.0 2/0
25895 MULTISPEED 600-PUR-J 1G95 20.0 912.0 1050.0 3/0
25276 MULTISPEED 600-PUR-O 1X95 20.0 912.0 1050.0 3/0
25896 MULTISPEED 600-PUR-J 1G120 21.0 1152.0 1240.0 4/0
25277 MULTISPEED 600-PUR-O 1X120 21.0 1152.0 1240.0 4/0
25897 MULTISPEED 600-PUR-J 1G150 23.8 1440.0 1524.0 300 kcmil
25278 MULTISPEED 600-PUR-O 1X150 23.8 1440.0 1524.0 300 kcmil
25898 MULTISPEED 600-PUR-J 1G185 26.2 1776.0 1932.0 350 kcmil
25279 MULTISPEED 600-PUR-O 1X185 26.2 1776.0 1932.0 350 kcmil
25899 MULTISPEED 600-PUR-J 1G240 29.8 2304.0 2467.0 500 kcmil
25280 MULTISPEED 600-PUR-O 1X240 29.8 2304.0 2467.0 500 kcmil
25900 MULTISPEED 600-PUR-J 1G300 33.1 2880.0 3140.0 600 kcmil
25281 MULTISPEED 600-PUR-O 1X300 33.1 2880.0 3140.0 600 kcmil
Technical Data
  • Special drag chain conductor line for extreme mechanical stresses adapted to DIN VDE 0281 Part 3 and UL style 10553
  • Temperature Range
    Flexing
    -30°C to +80°C (-22°F to +176°F)
    Fixed Installation
    -40°C to +90°C (-40°F to +194°F)
  • Nominal Voltage U0/U 600/1000 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 5x conductor Ø
    Fixed Installation 3x conductor Ø
Approvals
RoHSUL CSA CE ur RoHS
Cable Construction
  • Bare copper conductor, ultra-fine wire to DIN VDE 0295 cl. 6, column 4, BS 6360 cl. 6 and/or IEC 60228 cl. 6
  • 1st conductor insulation from thermoplastic polymer in either black or green/yellow
  • 2nd conductor insulation from special polyurethane, TMPU adapted to DIN VDE 0282, Part 10, low-adhesion
  • Jacket color: Pine Green (RAL 6028)
Application

These special drag chain conductor cables permit extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and high speeds at high temperature in dry, moist or wet environments or in open air. These cables can be used for all applications demanding the highest requirements in flexibility, abrasion resistance, ozone and chemical resistance.
For applications extending beyond standard solutions (e.g. composting plants or high lift conveyor systems working at extremely low speeds) we recommend that you request our questionnaire, which has been especially designed for energy supply systems. Before installation in cable trays, please read the instructions.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Flame retardant
  • Halogen-free
  • Abrasion resistant
  • Very good oil resistance
  • Very good alternating bending strength
  • Very high resistance to mechanical stresses
  • Higher notch resistance
  • Ozone and UV-resistant
  • Coolant resistant
  • The materials used in manufacture are silicon and cadmium-free and contain no substances harmful to the wetting properties of lacquers
Note
  • to top up arrow G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
