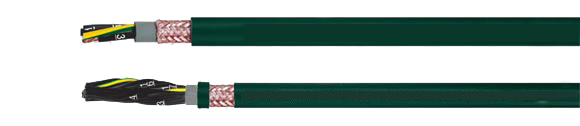

Control Cable: MULTISPEED® 500-C-PVC UL/CSA

Highly Flexible, Safety Against High Bending in Drag Chain Systems, Oil Resistant,
Low Torsion, Screened, EMC Preferred Type

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls, , European   MULTISPEED 500-C-PVC UL/CSA, Safety against high bending in drag chain systems, Low Torsion, shielded, EMC (EMI) preferred type, UL-CSA Approved, Control Cable

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
24335 MULTISPEED 500-C-PVC UL/CSA 2X0.5 6.6 30.0 88.0 20
24336 MULTISPEED 500-C-PVC UL/CSA 3G0.5 6.8 36.0 101.0 20
24337 MULTISPEED 500-C-PVC UL/CSA 4G0.5 7.3 42.0 116.0 20
24338 MULTISPEED 500-C-PVC UL/CSA 5G0.5 7.7 48.0 146.0 20
24339 MULTISPEED 500-C-PVC UL/CSA 7G0.5 11.3 64.0 181.0 20
24340 MULTISPEED 500-C-PVC UL/CSA 9G0.5 11.4 80.0 219.0 20
24341 MULTISPEED 500-C-PVC UL/CSA 12G0.5 12.4 105.0 271.0 20
24342 MULTISPEED 500-C-PVC UL/CSA 18G0.5 14.7 137.0 374.0 20
24343 MULTISPEED 500-C-PVC UL/CSA 25G0.5 17.1 210.0 542.0 20
24344 MULTISPEED 500-C-PVC UL/CSA 2X0.75 6.8 40.0 96.0 18
24345 MULTISPEED 500-C-PVC UL/CSA 3G0.75 7.4 48.0 111.0 18
24346 MULTISPEED 500-C-PVC UL/CSA 4G0.75 8.0 55.0 140.0 18
24347 MULTISPEED 500-C-PVC UL/CSA 5G0.75 8.5 66.0 161.0 18
24348 MULTISPEED 500-C-PVC UL/CSA 7G0.75 12.9 85.0 227.0 18
24349 MULTISPEED 500-C-PVC UL/CSA 12G0.75 14.4 135.0 317.0 18
24350 MULTISPEED 500-C-PVC UL/CSA 18G0.75 17.7 190.0 486.0 18
24351 MULTISPEED 500-C-PVC UL/CSA 25G0.75 19.9 275.0 651.0 18
24352 MULTISPEED 500-C-PVC UL/CSA 3G1 7.7 59.0 131.0 17
24353 MULTISPEED 500-C-PVC UL/CSA 4G1 8.3 70.0 164.0 17
24354 MULTISPEED 500-C-PVC UL/CSA 5G1 9.1 84.0 198.0 17
24355 MULTISPEED 500-C-PVC UL/CSA 7G1 14.0 106.0 252.0 17
24356 MULTISPEED-500-C-PVC UL/CSA 12G1 15.0 174.0 410.0 17
24357 MULTISPEED 500-C-PVC UL/CSA 18G1 18.5 240.0 550.0 17
24358 MULTISPEED 500-C-PVC UL/CSA 25G1 21.4 332.0 756.0 17
24359 MULTISPEED 500-C-PVC UL/CSA 3G1.5 8.6 75.0 166.0 16
24360 MULTISPEED 500-C-PVC UL/CSA 4G1.5 9.4 90.0 199.0 16
24361 MULTISPEED 500-C-PVC UL/CSA 5G1.5 10.4 108.0 229.0 16
24362 MULTISPEED 500-C-PVC UL/CSA 7G1.5 16.0 157.0 304.0 16
24363 MULTISPEED 500-C-PVC UL/CSA 12G1.5 17.6 240.0 502.0 16
24364 MULTISPEED 500-C-PVC UL/CSA 18G1.5 21.3 355.0 709.0 16
24365 MULTISPEED 500-C-PVC UL/CSA 25G1.5 24.8 448.0 939.0 16
24366 MULTISPEED 500-C-PVC UL/CSA 4G2.5 9.6 134.0 270.0 14
24367 MULTISPEED 500-C-PVC UL/CSA 5G2.5 11.3 175.0 335.0 14
Technical Data
  • Special drag chain cables for high mechanical stress adapted to DIN VDE 0281 part 13, E DIN VDE 0245 and UL Std. 758 AWM Style 21179
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage
    U0/U 300/500 V
    UL 600 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Coupling Resistance
    Max. 250 Ohm x km
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE RoHS
Cable Construction
  • Bare copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    > 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    = 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-PVC inner jacket YM2 extruded as filler with pressure, gray (RAL 7001)
  • Shield of copper braid bare, coverage 85% max., with optimal bunch
  • Special-PVC outer jacket, especially resistant against fatigue strength
  • Jacket color: Pine Green (RAL 6028)
Application

For permanent application in drag chains for long distances, fast and slow speeds. These highly flexible PVC control cables are suitable for shift and bending stresses in machines and machine tool constructions. These are installed in dry and moist rooms with free movement without tensile stress or forced movements. These shielded cables are particularly suitable for interference-free transmission in instrumentation and control engineering applications.
For applications which go beyond standard solutions, we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables, see lead text.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) VW1, FT1
  • Low adhesion
  • High property of alternating bending strength
  • Long life durability due to low friction-resistance
  • Better chemical resistance
  • Oil resistance
  • High stability
  • Higher economical solution
  • Reduced Ø results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm2.
  • Unshielded type: MULTISPEED® 500-PVC UL/CSA
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
