Video Cables

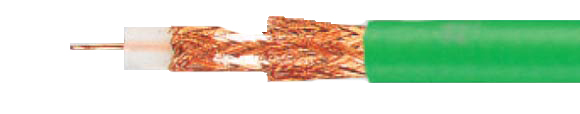

PE-Insulated, Bare Copper Conductor / Bare Copper Braid , PVC Outer Jacket 1.0 / 6.6D

Sealcon, Inc, European & Domestic cable

Video Cables, 1.0 / 6.6D Indoor, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Sealcon,
Part Number: 40174
Add to Quote
Quantity

Electrical Characteristics Used as: Indoors
Impedance: 75± 1 Ohm
Propagation Velocity v/c: 0.66
Attenuation at 20°C/68°F (dB/100m):

1 MHz 5 MHz 7 MHz 10 MHz 50 MHz 100 MHz
0.6 1.4 - 2.0 - -
Direct Current Resistance at 20°C/68°F:

Inner Conductor max.: 24.0 Ohm/km
Outer Conductor max.: 3.5 Ohm/km
Approx. Capacitance: 67.0 pF/m
Test Voltage: 7.0
Working Voltage (kV):

Pulse Operation: 6.0
HF-Operation (Peak Value): 3.0
DC Operation: 14.0
Shielding Efficiency (dB) 50 and 900 MHz = -
Copper Weight kg/km: 78.0
Technical Data
Electrical Characteristics Used as: Indoors
Impedance: 75� 1 Ohm
Propagation Velocity v/c: 0.66
Attenuation at 20�C/68�F (dB/100m):

1 MHz 5 MHz 7 MHz 10 MHz 50 MHz 100 MHz
0.6 1.4 - 2.0 - -
Direct Current Resistance at 20�C/68�F:

Inner Conductor max.: 24.0 Ohm/km
Outer Conductor max.: 3.5 Ohm/km
Approx. Capacitance: 67.0 pF/m
Test Voltage: 7.0
Working Voltage (kV):

Pulse Operation: 6.0
HF-Operation (Peak Value): 3.0
DC Operation: 14.0
Shielding Efficiency (dB) 50 and 900 MHz = -
Copper Weight kg/km: 78.0
Approvals
RoHS
Cable Construction
Inner Conductor � mm: 1.0
Conductor Material: Copper, bare
Insulation � mm: 6.4 PE
Outer Conductor 1: Bare copper braid
� in mm (approximately): 7.0
Inner Jacket/Foil: Foil
� in mm (approximately): -
Outer Conductor 2: Bare copper braid
� in mm (approximately): 7.6
Outer Jacket: PVC
Jacket Color: Green
Outer Diameter (approx.): 9.0 mm
Min. Bending Radius: 50 mm
Weight (approx.): 128 kg/km
Properties
  • N/A
Note
  • N/A
Cable Accessories
  • Coming Soon!
